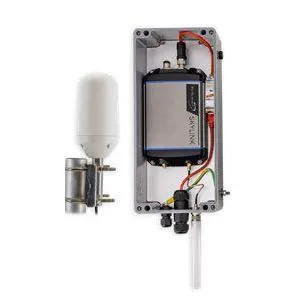

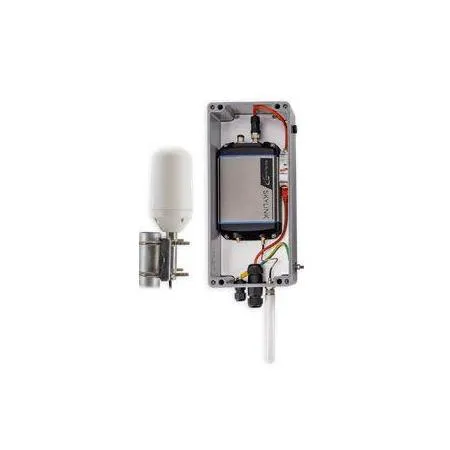

Blue Skye Skylink fixed installation kit without data gateway
Description
THE ULTIMATE URBAN EMERGENCY SOLUTION
The SkyLink fixed installation kit provides a premium Iridium® voice and data communication solution for resiliency and emergency preparedness.
The kit meets the challenge of bringing satellite voice and data communication indoors, from single-level structures to the world’s tallest building, at the lowest possible costs.
PHYSICAL

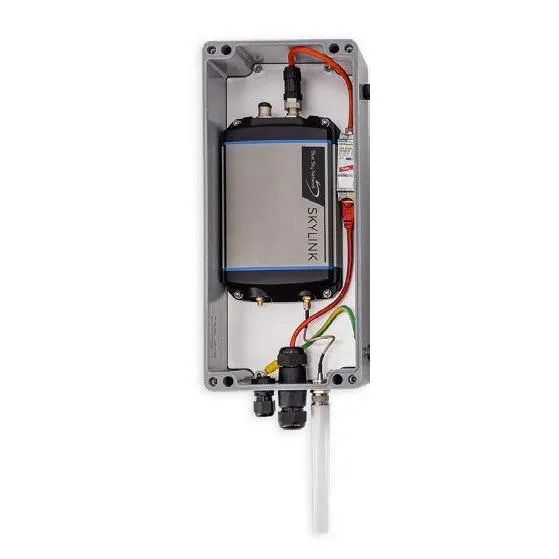

SkyLink Enclosure/p>
• Size: 5.31 x 7.28 x 16.14 in(13.5 x 18.5 x 41.0 cm)
• Weight: 9.9lb (4.49 kg)

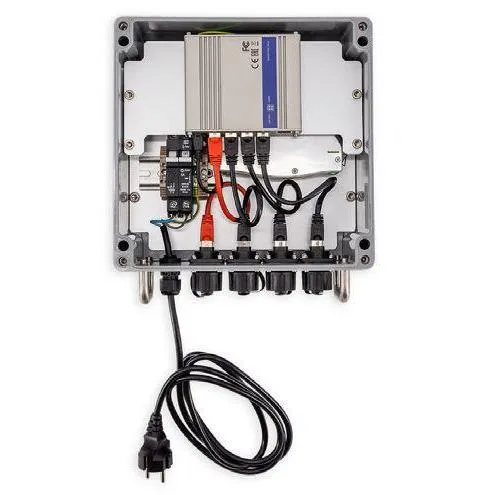

ComCenter Enclosure
• Size: 4.20 x 10.31 x 11.22 in(12.5 x 26.2 x 28.5 cm)
• Weight: 11.38lb (5.16 kg)
• Input voltage: 88 – 264 VAC
• Max power consumption: 130W
• Max power consumption per PoE port: 30W (at PSE)
• Total PoE power budget: 120W (at PSE)
• Operational temperature: -25°C to +70°C
• Dust and water: IP-67 protection class
Cellular
• LTE-A CAT 6 module
• Worldwide LTE-A & 3G UMTS / HSPA(+) coverage
• Download: 300 Mbps
• Upload: 50Mbps
Satellite
• Iridium Certus 100 services: 88 kbps DL / 22 kbps UL
• 2x high-quality voice lines
• Frequency: 1616.0 — 1626.5 MHz
Ethernet
• 10/100/1000 Mbps
• 2x high-quality voice lines
• IEEE 802.3, 802.3u, 802.3az
