Peplink 1" 14TPI Male Adapter
Description
Standard Marine Mounting Thread
The adapter provides an external 1"-14 TPI male thread, one of the most common thread formats used for marine antenna mounts. This allows compatible Peplink antennas to connect to a broader range of standard deck, mast, rail, and adjustable marine mounting bases.
Peplink Maritime Antenna Compatibility

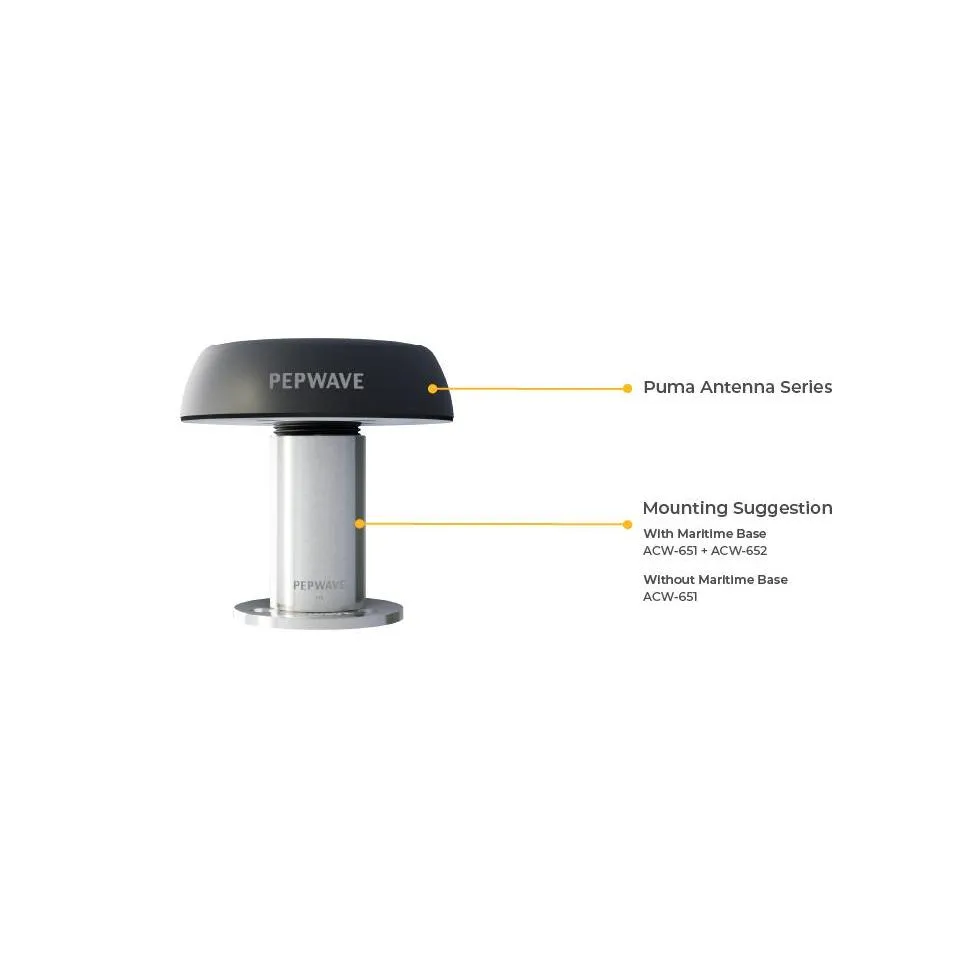

The ACW-652 is designed for use with compatible antennas in the Peplink Maritime Antenna Series. It serves as the mechanical connection between the antenna assembly and a mount that accepts a 1"-14 TPI male fitting.
Corrosion-Resistant Construction
The adapter is manufactured from 316 stainless steel, a material commonly selected for marine hardware because of its resistance to moisture and salt exposure. Its solid metal construction supports permanent outdoor installations on vessels, offshore equipment, and coastal communications systems.
Compact Installation
The adapter measures approximately 40 mm in diameter and 82 mm in height and weighs 250 g. Its compact format adds the required mounting interface without introducing a separate bracket or large mounting assembly.
Technical Specifications
Dimensions
- Diameter: 40 mm / 1.57 in.
- Height: 82 mm / 3.23 in.
- External thread: 1"-14 TPI
Weight
- 250 g / 8.8 oz.
Durability
- Construction: 316 stainless steel
- Intended environment: Marine and outdoor antenna installations
- Corrosion-resistant construction
Included
- Peplink ACW-652 1"-14 TPI Male Adapter
Additional
- Compatible equipment: Select Peplink Maritime Series antennas
- Mounting type: Male threaded antenna-mount adapter
- Manufacturer part number: ACW-652
