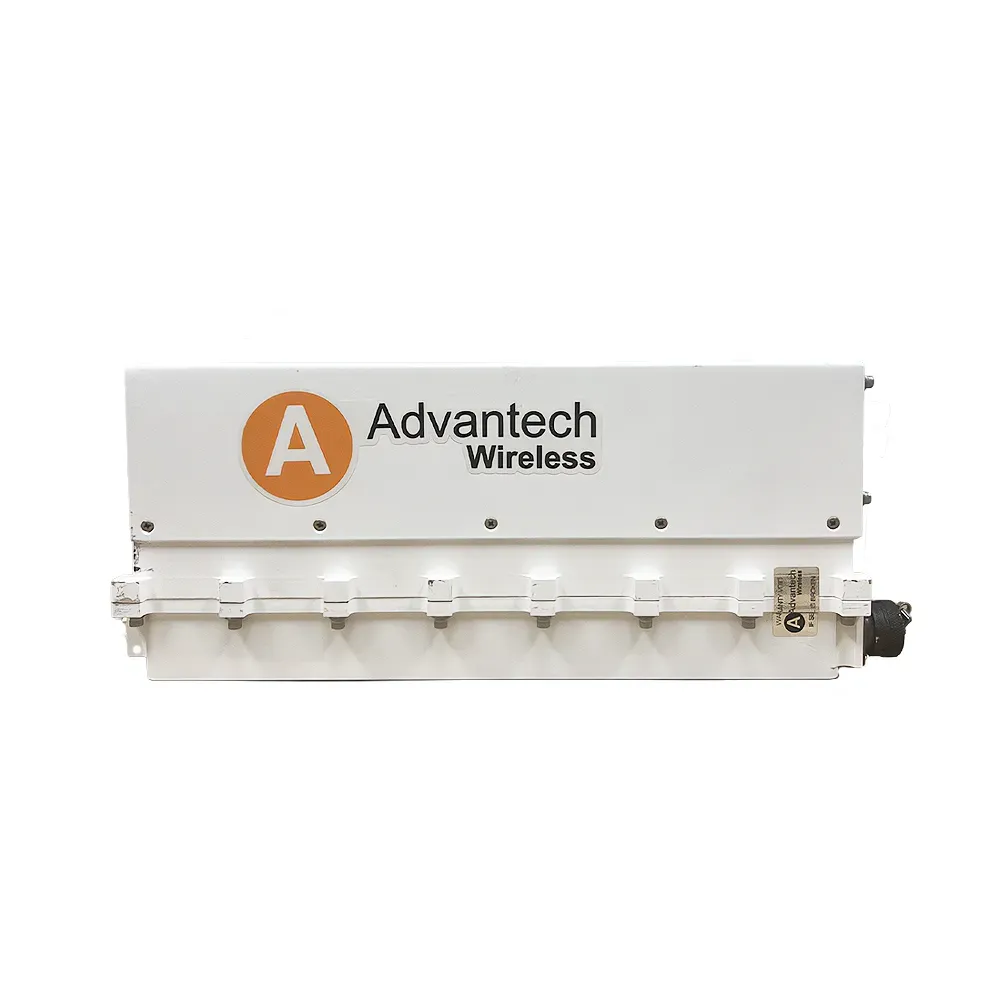

Intellian Advantech Ku-band Extended 125W BUC (SSPBMg-K125-CRE) VCM-1071
The Intellian VCM-1071 is an Advantech Wireless SSPBMg-K125-CRE 125W block upconverter for compatible high-power maritime VSAT systems. It converts a 950–1,700 MHz L-band signal into a 13.75–14.5 GHz extended Ku-band uplink signal and provides up to +51 dBm of saturated RF output.
Designed for larger commercial vessels and offshore installations, the BUC uses GaN amplifier technology and includes RS-485 and Ethernet monitoring and control. Its weatherproof outdoor construction supports antenna-mounted operation in demanding marine environments.
Satellite Phone Store supplies Intellian maritime VSAT equipment and replacement RF components. Our team can help confirm antenna compatibility, frequency range, output-power requirements, AC input, and control interfaces before ordering.
Description
High-Power Extended Ku-Band Transmission
The SSPBMg-K125-CRE operates across the 13.75–14.5 GHz extended Ku-band uplink range and accepts a 950–1,700 MHz L-band input. It uses a 12.8 GHz local oscillator and an external 10 MHz reference for stable frequency conversion.
125W GaN RF Output
The BUC provides a typical saturated output of +51 dBm, equivalent to approximately 125W. Its specified linear output is +47 dBm, while minimum BUC gain is 73 dB. A 20 dB gain-adjustment range in 0.1 dB steps supports accurate transmit-level configuration during installation and commissioning.
This power class is intended for compatible maritime and fixed satellite systems that require greater uplink capability for broadband data, voice, operational communications, and crew connectivity.
Integrated Monitoring and Control
RS-485 and Ethernet interfaces provide access to operating status and control functions from compatible antenna or network-management equipment. The platform is also designed to support redundant configurations when the system is equipped with the necessary additional hardware.
AC-Powered Outdoor Installation
The BUC accepts 90–265V AC at 47–63 Hz and uses a dedicated MS3102-type power connection. Nominal power consumption for the 125W model is 900W at saturated output and 625W at the specified linear-output level.
Its weatherproof enclosure is intended for outdoor antenna installation. The standard operating range is -30–55°C, with optional cold-weather configurations available for operation down to -40°C or -50°C.
Technical Specifications
Power
- Saturated RF output: +51 dBm typical / approximately 125W
- Linear RF output: +47 dBm
- AC input: 90–265V AC, 47–63 Hz
- Nominal power consumption at saturated output: 900W
- Nominal power consumption at linear output: 625W
Dimensions
- 45.4 × 21.2 × 16.5 cm / 17.86 × 8.34 × 6.49 in.
Weight
- 10.5 kg / 22.05 lbs
Durability
- Construction: Weatherproof outdoor enclosure
- Amplifier technology: GaN
- Standard operating temperature: -30–55°C / -22–131°F
- Optional operating temperature: Down to -40°C or -50°C / -40°F or -58°F
- Storage temperature: -55–85°C / -67–185°F
- Humidity: 100% condensing
- Maximum operating altitude: 3,048 m / 10,000 ft, with temperature derating
- Certification: CE
Included
- Intellian VCM-1071 Advantech SSPBMg-K125-CRE Extended Ku-Band 125W BUC
Additional
- Product type: Block upconverter
- Manufacturer: Advantech Wireless Technologies
- BUC model: SSPBMg-K125-CRE
- Intellian part number: VCM-1071
- Frequency band: Extended Ku-band
- Redundancy support: Compatible with optional 1:1 or 1:2 redundant configurations
Data Network
- RF output frequency: 13.75–14.5 GHz
- IF input frequency: 950–1,700 MHz
- Local oscillator frequency: 12.8 GHz
- External reference frequency: 10 MHz
- Minimum BUC gain: 73 dB
- Gain adjustment range: 20 dB in 0.1 dB steps
- Gain flatness across full band: 4 dB peak-to-peak maximum
- Gain variation over temperature: ±1.5 dB maximum
- Input VSWR: 1.5:1
- Output VSWR: 1.3:1
- Third-order intermodulation: -25 dBc at linear output
- Spectral regrowth: -30 dBc at linear output
Interfaces
- IF input: N-type female, 50 ohms
- RF output: WR-75 grooved waveguide
- AC power connection: MS3102 type
- Monitoring and control: RS-485 and Ethernet
- M&C connection: MS3112 type
