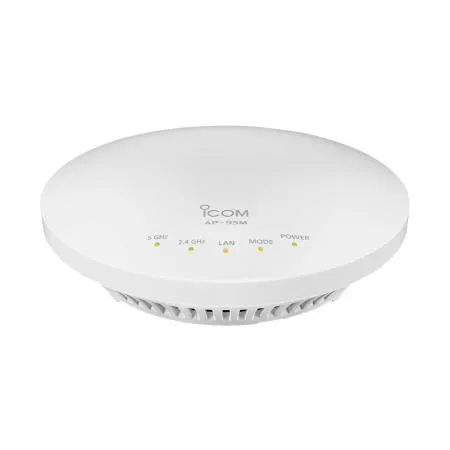

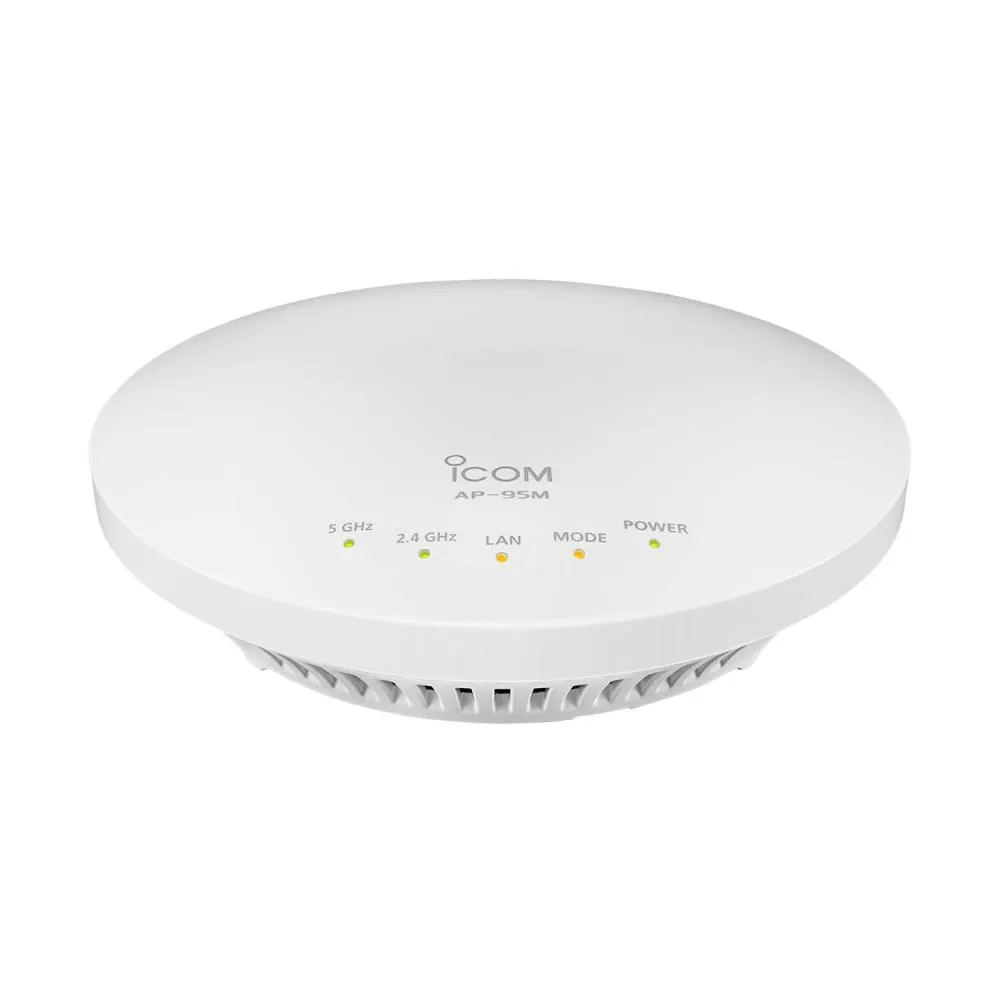

ICOM Wireless LAN access point AP95M
Description
Wireless Coverage for ICOM IP Radio Systems
The AP-95M provides the wireless network connection used by compatible ICOM Wi-Fi radios and dispatch equipment. Multiple access points can be installed across a building or site to expand coverage and allow users to move between supported areas while remaining connected to the IP radio system.
It is suitable for:
- Warehouses and distribution centers
- Hotels, schools, and campuses
- Offices and commercial facilities
- Manufacturing and industrial sites
- Security and facility-management networks
Dual-Band 802.11ac Performance
The access point operates simultaneously on the 2.4 GHz and 5 GHz bands. It supports IEEE 802.11a, b, g, n, and ac wireless standards, with theoretical rates up to 867 Mbps on compatible 5 GHz devices.
Beamforming and 2 × 2 MU-MIMO help direct wireless signals toward compatible devices and reduce interference when multiple terminals are communicating.
Separate Wireless Groups
The Virtual AP function supports up to eight wireless terminal groups on each frequency band, allowing as many as 16 SSIDs across the 2.4 GHz and 5 GHz radios. Each virtual access point can use its own VLAN ID and security settings.
This allows one AP-95M to separate traffic for different departments, device groups, visitors, or communication systems.
Automatic Network Management
The AP-95M can automatically select a wireless channel according to nearby signal conditions. Automatic power adjustment and terminal connection limits help reduce interference and prevent excessive device concentration from lowering network performance.
Configuration and firmware updates can be completed through a standard web browser. The access point also supports SNMP for network monitoring and centralized management.
Flexible Power and Installation
The AP-95M can operate through IEEE 802.3af Power over Ethernet or a compatible 12V DC power adapter. The supplied mounting bracket allows installation on a wall or ceiling, which ICOM recommends because the unit transmits and receives through its top surface.
Technical Specifications
Power
- Power over Ethernet: IEEE 802.3af
- Maximum PoE Power Consumption: 9W
- DC Input: 12V DC ±10%, more than 2A
Dimensions
- Dimensions: 16.2 × 16.2 × 4.2 cm / 6.4 × 6.4 × 1.7 in.
Weight
- 520 g / 1.1 lbs.
Durability
- Operating Temperature: -10°C to 55°C / 14°F to 131°F
- Operation below 0°C / 32°F requires the unit to remain powered on
- Operating Humidity: 5% to 95%, non-condensing
Included
- ICOM AP-95M Wireless LAN Access Point
- Mounting bracket set
- AC adapter, depending on product version
Additional
- Security: WEP 64/128/152-bit, WPA, WPA2, WPA-PSK, WPA2-PSK, and IEEE 802.1X/EAP
- Hidden SSID function
- Security cable slot
- Browser-based configuration and firmware updates
- Installation: Desktop, wall, or ceiling
- Manufacturer: ICOM
- Model: AP-95M
Data Network
- Wireless Standards: IEEE 802.11a/b/g/n/ac
- Wi-Fi Generation: IEEE 802.11ac Wave 2
- Frequency Bands: 2.4 GHz and 5 GHz simultaneous operation
- Wireless Data Rates: Up to 867 Mbps theoretical
- MIMO: 2 × 2 MU-MIMO
- Beamforming support
- Virtual AP Groups: Up to eight per frequency band
- Maximum SSIDs: 16 across both frequency bands
- VLAN support
- Automatic channel selection
- Automatic transmission power adjustment
- Configurable terminal connection limits
- Router function
- Network monitoring
- Packet filtering
- Web authentication
- SNMP support
Interfaces
- Ethernet Port: One RJ-45
- Wired Standards: 10BASE-T, 100BASE-TX, and 1000BASE-T
- Wired Data Rates: 10/100/1000 Mbps
- Automatic MDI/MDI-X detection
