Thales MissionLINK 200 Premium L-Bracket Pole Mount
Description
Fixed Antenna Mounting

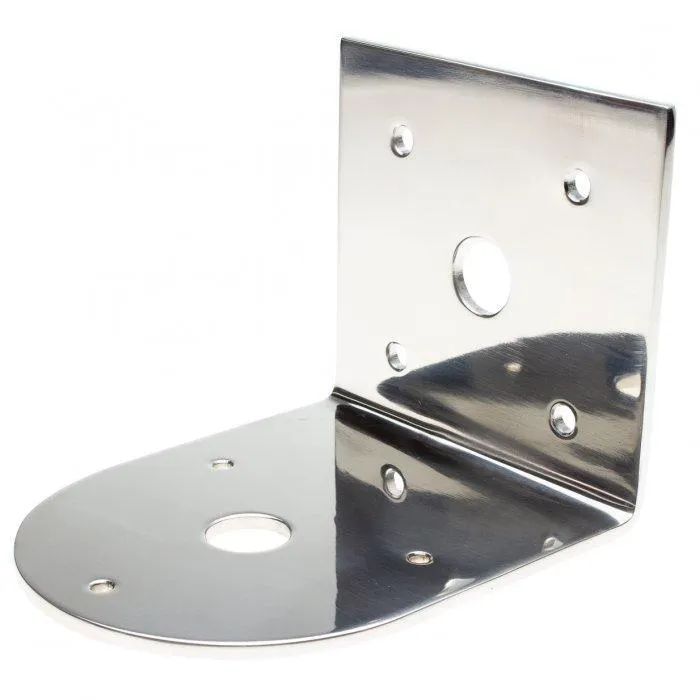

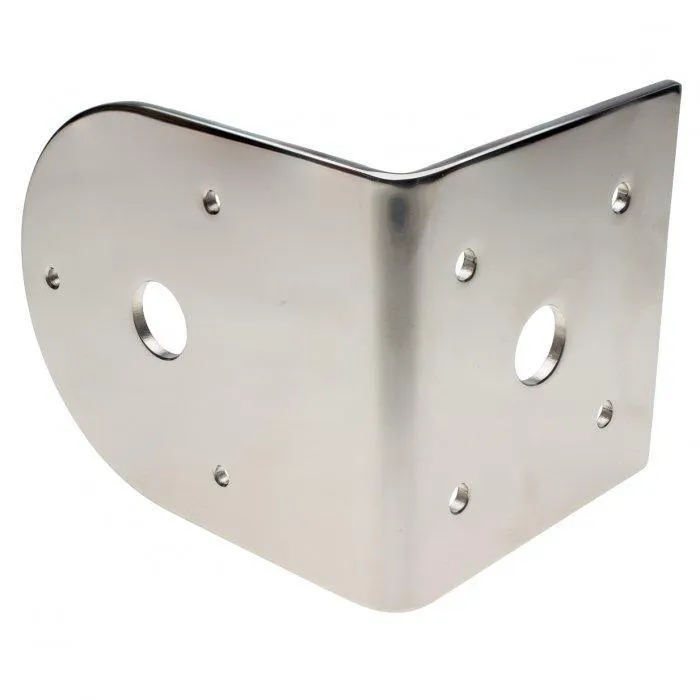

The L-bracket provides a stable mounting platform for the Certus 200 broadband active antenna. It is designed for fixed installations where magnetic mounting is unsuitable or where the antenna must be secured to a mast, rail, or pole.
Stainless Steel Construction
The mounting plate is made from 3 mm AISI 316L stainless steel. This corrosion-resistant material is appropriate for exposed installations, including coastal, marine, industrial, and remote environments.
Pole Compatibility
The supplied brackets fit tubing with an outside diameter of up to 48.3 mm / 1.9 in. The antenna mounting plate uses an 80 mm bolt circle with three 4.5 mm mounting holes corresponding to the mounting points on the bottom of the Certus 200 antenna.
MissionLINK and VesseLINK Support
This mount is designed for Thales MissionLINK 200 and VesseLINK 200 systems. The MissionLINK installation guide identifies the 1100855-503 bracket as the Premium L-Bracket kit for fixed Certus 200 antenna installations.
Technical Specifications
Dimensions
- Dimensions: 13.0 × 10.0 × 10.5 cm / 5.1 × 3.9 × 4.1 in.
- Maximum pole diameter: 48.3 mm / 1.9 in.
- Antenna bolt circle diameter: 80 mm / 3.15 in.
- Antenna mounting holes: Three 4.5 mm holes
Weight
- 0.79 kg / 1.74 lbs.
Durability
- Construction: 3 mm AISI 316L stainless steel
- Installation type: Fixed outdoor pole or mast mounting

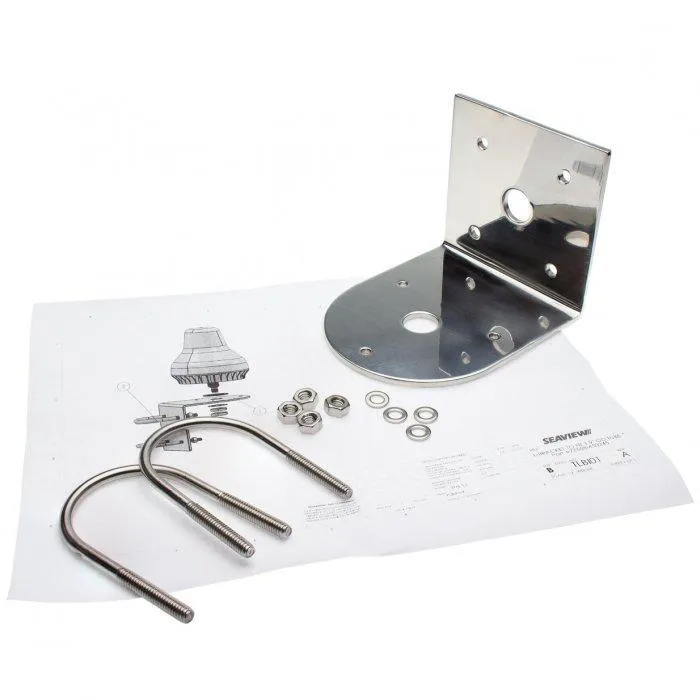

Included
- Stainless steel L-bracket mounting plate
- Two pole-mount brackets
- Mounting hardware
Additional
- Compatible systems: Thales MissionLINK 200 and VesseLINK 200
- Manufacturer: Thales
