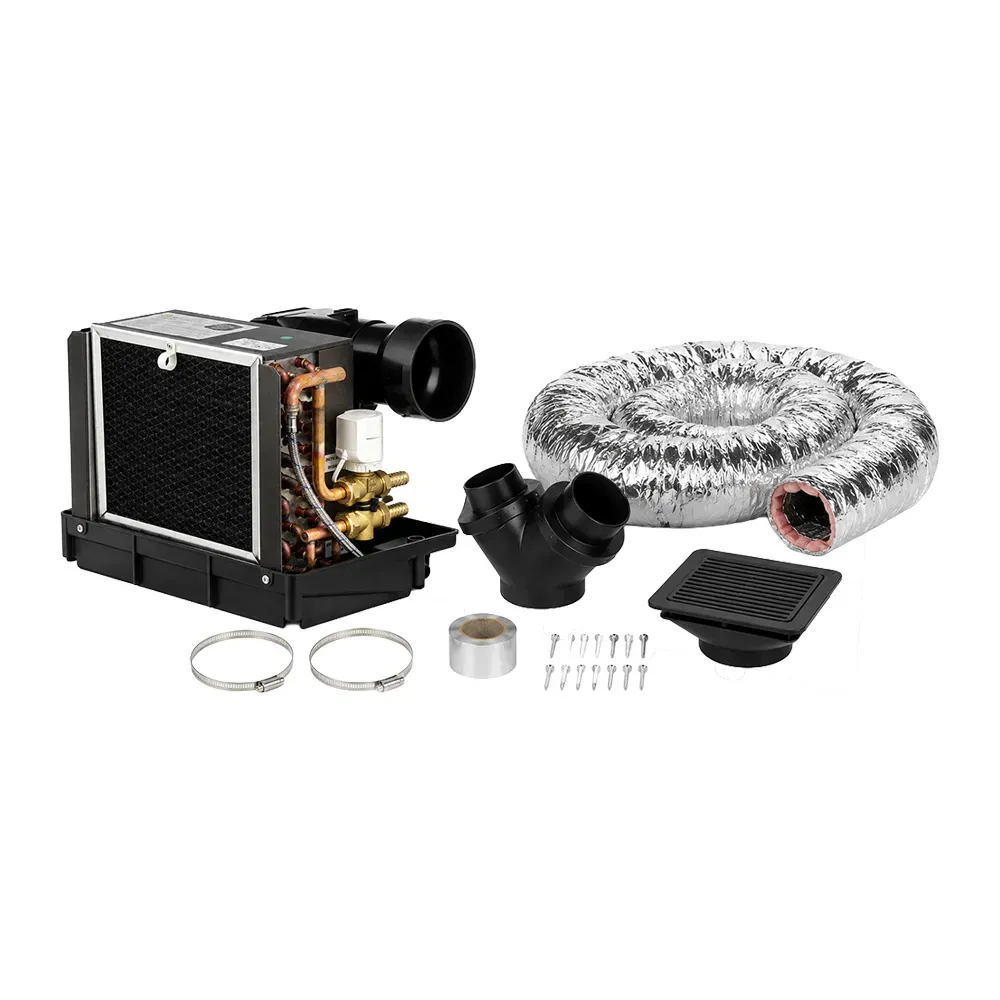

Intellian Dometic Air Conditioning Unit with Duct Kit VC1-2115

External Antenna Cooling

The VC1-2115 combines a Dometic external air-conditioning unit with the duct components required to route cooled air into a compatible antenna enclosure. Installing the cooling equipment outside the radome reduces the amount of active HVAC equipment positioned alongside the antenna mechanism.

The system is intended to help keep the electronics, RF equipment, and other internal components within a suitable operating-temperature range during warm-weather or high-power operation.

Complete Unit and Duct Package

The VC1-2115 combines two separately listed Intellian components: the VC1-2113 Dometic air-conditioning unit and the VC1-2114 duct kit. Purchasing the combined package provides both primary parts under one Intellian kit number.

Additional installation components may still be required, including:

• Antenna-specific air-conditioner frame and skirt
• Mounting and sealing hardware
• Electrical supply and control wiring
• Condensate drainage
• Additional duct fittings or insulation required by the installation

Professional Marine Installation

The unit is intended for professional maritime installations and should be fitted by qualified marine HVAC and satellite-communications personnel. Proper duct routing, weather sealing, drainage, electrical protection, and airflow are important for dependable cooling and to prevent moisture from entering the antenna enclosure.

Installers should follow the applicable Intellian antenna documentation, Dometic air-conditioner instructions, vessel requirements, and shipyard procedures.

Compatibility Confirmation

Public listings identify the VC1-2115 as an Intellian Dometic external air-conditioning unit with duct kit but do not consistently specify every compatible antenna model. The antenna system, radome configuration, cooling requirements, and associated frame or skirt part numbers should therefore be confirmed before ordering.
