Description
Fast Charging On the Move
Charge 5x faster than traditional 12V ports with the EcoFlow 500W Alternator Charger. Using energy directly from your vehicle's alternator, it efficiently converts excess driving power into stored electricity. With its DC-DC conversion technology, it replenishes 1kWh in as little as 2.1 hours—keeping your portable power station charged during short trips or long drives.
3-in-1 Versatility: Charge, Maintain, Jump Start
The 500W Alternator Charger goes beyond simple charging. Acting as a 3-in-1 system, it functions as a fast charger, reverse charger, and battery maintainer, ensuring both your portable power station and vehicle battery remain in top condition. The result: less downtime, more efficiency, and a safer, more reliable energy setup wherever your journey takes you.
Wide Compatibility and Simple Setup

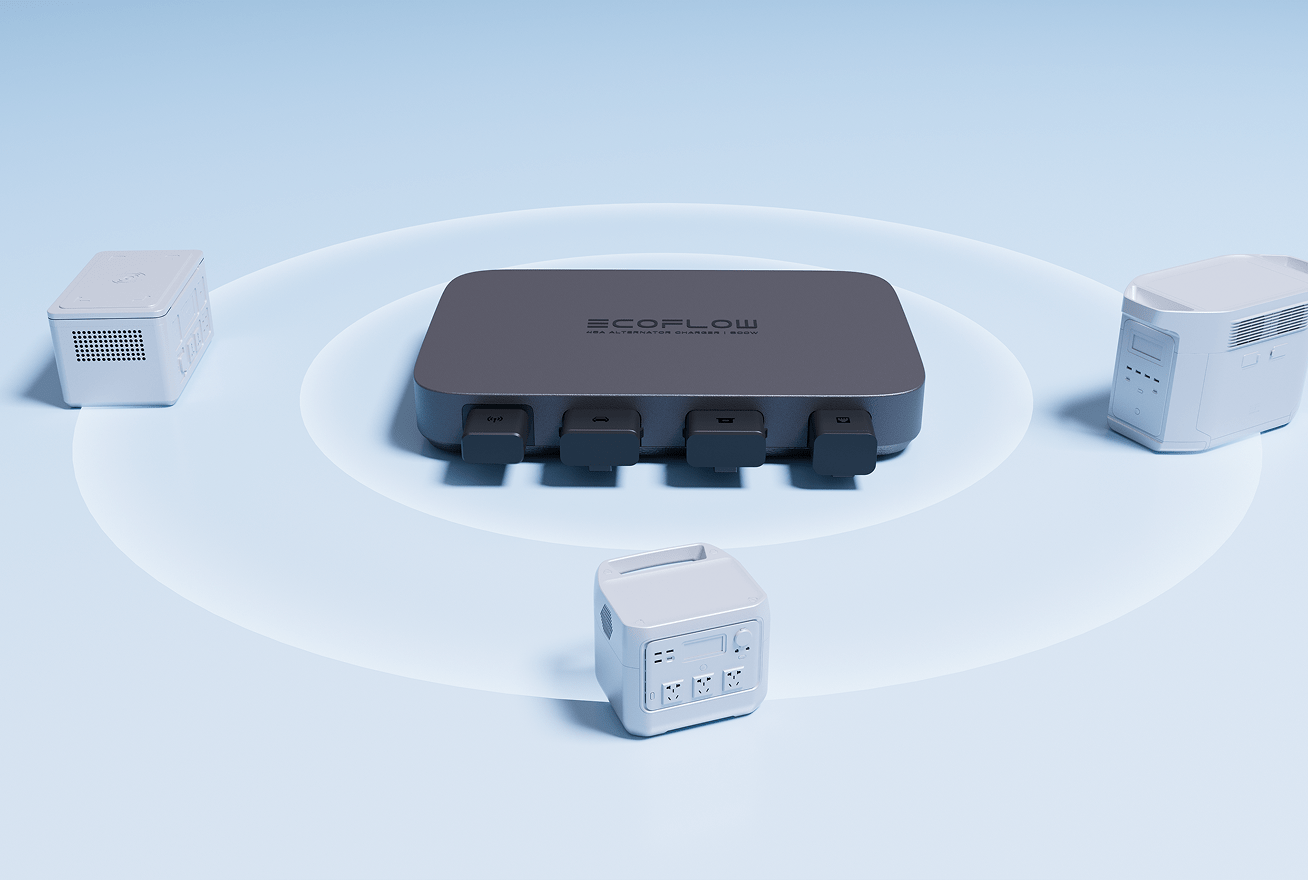

Compatible with EcoFlow DELTA Series, RIVER Series, and most third-party portable power stations via XT60 connection, this charger integrates seamlessly into existing setups. It's also suitable for various vehicle types, including SUVs, pickups, and RVs. Installation is quick—just three steps to connect and start charging.
*Note: Reverse charging and battery maintenance require the XT150 cable (sold separately).*Smart, Safe, and Connected
Powered by GaN (Gallium Nitride) technology, the charger offers efficient, low-heat performance with built-in protections against overcurrent, reverse polarity, short circuits, and over/undervoltage. With Apple CarPlay® and Android Auto™ integration, you can monitor charging progress and power station status through your vehicle's infotainment system—reducing distractions and keeping control at your fingertips.

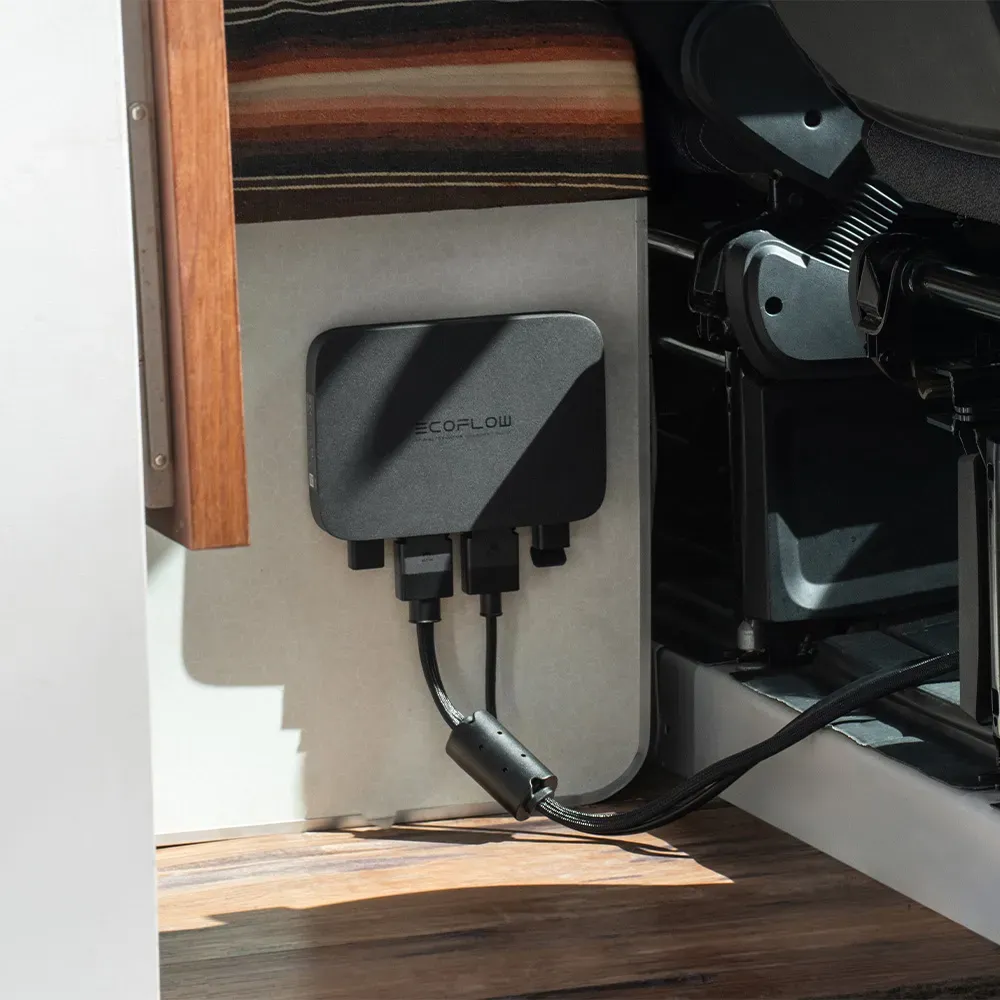

Compact, Durable, and Built for Travel
Designed for easy installation and clean integration, the EcoFlow 500W Alternator Charger fits neatly in your vehicle or RV without leaving marks or clutter. Its robust build and wide operating temperature range (-20°C to 60°C) ensure reliable performance through any weather or terrain, making it the perfect companion for off-grid living or long road trips.
Technical Specifications
Dimensions
- 9.53 × 7.64 × 1.38 in (242 × 194 × 35 mm)
Weight
- 3.53 lbs (1.6 kg)
Durability
- Operating Temperature: –4℉ to 140℉ (–20℃ to 60℃)
- Storage Temperature: –22℉ to 158℉ (–30℃ to 70℃)
- Operating Humidity: ≤95%
- Storage Humidity: ≤95%
- Protection Type:
- Reverse polarity protection
- Overcurrent protection
- Short circuit protection
- Overvoltage protection
- Undervoltage protection
Included
- EcoFlow 500W Alternator Charger
- Installation Board
- Cable Puller
- M6 nut
- M5
- Input Cable 5m
- XT150 output cable 1m
- M6
- Fuse Cable
- ST5.5
- Manual & Warranty Card
Battery
- Battery Maintenance Mode:
- Input: 40V-60V⎓, 3A Max.
- Output: 13.8V/27.6V⎓, 100W Max.
- Charging Mode:
- Input: 12V/24V⎓(11V-31V⎓), 45A Max.
- Output: 40V-60V⎓, 500W Max.; 24V⎓, 360W Max.
- Reverse Charging Mode:
- Input: 40V-60V⎓, 13.2A Max.
- Output: 13.8V/27.6V⎓, 500W Max.
- Fuse's Rated Current: 125A
Additional
- Wi-Fi:
- Frequency: 2412 MHz-2472 MHz
- Maximum output power: 18.22 dBm
- Bluetooth :
- Frequency: 2402MHz-2480MHz
- Maximum output power: <10dBm
