Hughes HL1120W Mast Adapter with Trimast
The Hughes HL1120W Mast Adapter with Trimast is a fixed mounting system for installing the HL1120W outdoor satellite antenna on a suitable wall or structural surface. Its three-leg support design holds the mast vertically while distributing the mounting points across the installation surface.
The adjustable mast adapter and short stanchion position the antenna above the supporting surface and allow the required 3-degree forward tilt for water drainage. This mount is suited for permanent OneWeb LEO installations at offices, remote facilities, utility sites, and other locations with a clear view of the sky.
Satellite Phone Store can help confirm HL1120W system compatibility and identify the appropriate mounting, cabling, and installation components for a complete fixed satellite deployment.
Description
Fixed HL1120W Installation
This mounting kit is designed specifically for the Hughes HL1120W outdoor unit. The Trimast attaches to a structurally suitable mounting surface, while the mast adapter connects the antenna’s short stanchion to the Trimast pole. The completed assembly provides a dedicated fixed mounting point for the dual-panel HL1120W antenna.
Three-Point Support

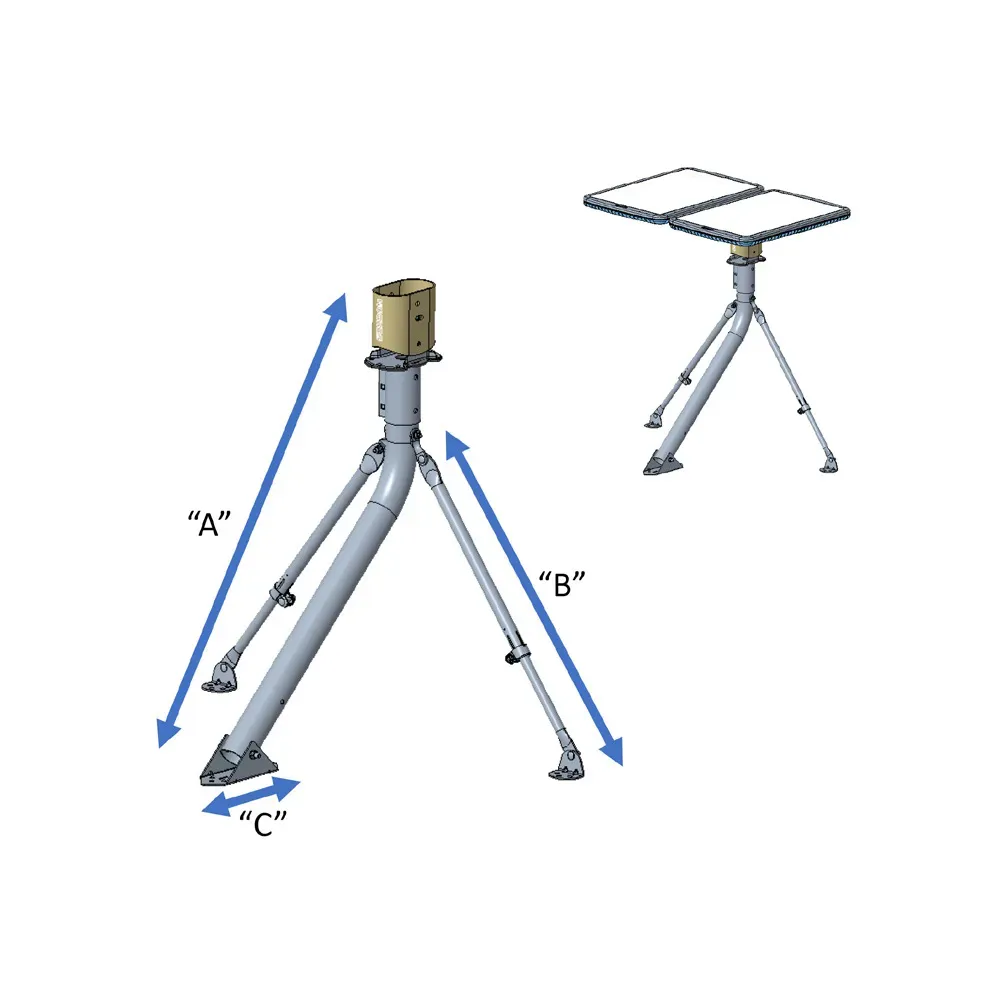

The Trimast uses a central mast with three supporting legs to create a stable wall-mounted structure. During installation, the mast must be positioned vertically so the antenna’s radiating surface remains parallel with the ground. The mounting location must also provide an unobstructed view of the sky between 36 and 90 degrees above the installed terminal.
Adjustable Antenna Position
The included short stanchion pivots within the mast adapter assembly, allowing the installer to set the HL1120W antenna to the required 3-degree forward tilt. This angle promotes drainage away from the antenna surface and must be verified with an inclinometer before the mounting bolts are fully tightened.
Installation Hardware
The kit includes a blind-mate guide and the specified hardware for securing the mast adapter, stanchion, and antenna assembly. Hughes specifies three carriage bolts and nylon nuts for attaching the adapter canister to the Trimast pole, along with M4 and M8 hardware for the antenna interface. Installation should be completed on a suitable structural surface using the required tools and surface-specific fasteners.
Technical Specifications
Dimensions
- 76.0 × 59.3 × 20.1 cm / 29.94 × 23.33 × 7.91 in.
Weight
- 6.67 kg / 14.70 lbs.
Included
- Hughes Trimast assembly
- HL1120W mast adapter
- Short stanchion
- Blind-mate guide
- Mounting bolts, nuts, and washers
Additional
- Product type: Fixed antenna mounting system
- Compatibility: Hughes HL1120W outdoor unit
- Mounting configuration: Mast adapter with three-leg Trimast
- Required antenna tilt: 3 degrees forward
- Required sky visibility: Unobstructed view from 36 to 90 degrees above the terminal
- Mast adapter attachment hardware: 3 × 5/16-18 carriage bolts, 1.25 in. long, 3 × 5/16-18 nylon nuts
- Blind-mate guide hardware: 4 × M4 × 0.7 screws, 12 mm long
- Stanchion mounting hardware: 6 × M8 × 1.25 hex bolts, 20 mm long, 4 × M8 flat washers, 2 × M8 fender washers, 6 × M8 lock washers
- Manufacturer part number: 1508654-0001
