Hughes HL1120W Non-Penetrating Mount with Short Stanchion
The Hughes HL1120W Non-Penetrating Mount with Short Stanchion provides a fixed platform for installing the HL1120W outdoor antenna on a suitable flat roof or ground surface without drilling through it. The base uses ballast to hold the assembly in position, making it suitable for installations where penetrating anchors are not preferred or permitted.
The included 12 cm short stanchion keeps the antenna closer to the mounting surface than the tall-stanchion version. This lower-profile configuration is useful where additional elevation is unnecessary and the antenna can maintain the required clear view of the sky.
Satellite Phone Store can help confirm HL1120W compatibility and identify the appropriate cabling, grounding, power, and installation components for a complete OneWeb LEO satellite deployment.
Description
Non-Penetrating Installation
The mount rests on a supplied rubber mat and uses ballast rather than fasteners driven through the roof or supporting platform. This helps preserve the installation surface while providing a dedicated base for the Hughes HL1120W outdoor unit. Hughes specifies a flat, suitable location with an unobstructed view of the sky between 36 and 90 degrees above the terminal.
Short Stanchion Configuration
The short stanchion measures 120 mm and weighs 0.74 lb. Compared with the 270 mm tall version, it positions the antenna closer to the ballast tray, creating a lower overall installation profile.
Ballasted Mounting Base
The mount is designed to work with two standard 4 × 8 × 16 in. concrete blocks, although sandbags or other suitably heavy objects may also be used. Hughes specifies a minimum total ballast weight of 50 lb., with the final arrangement selected to suit the installation surface and local environmental conditions.
Adjustable Antenna Position
The stanchion attaches to the mount’s central support and allows the installer to set the antenna to the required 3-degree forward tilt before fully tightening the mounting hardware. The HL1120W body must extend over the non-penetrating tray when installed.
HL1120W-Specific Hardware
The kit includes the blind-mate guide, short stanchion, rubber mat, penetrating mount section, non-penetrating tray, and the required bolts, washers, and spring locks for attaching the mount to the HL1120W outdoor unit.
Technical Specifications

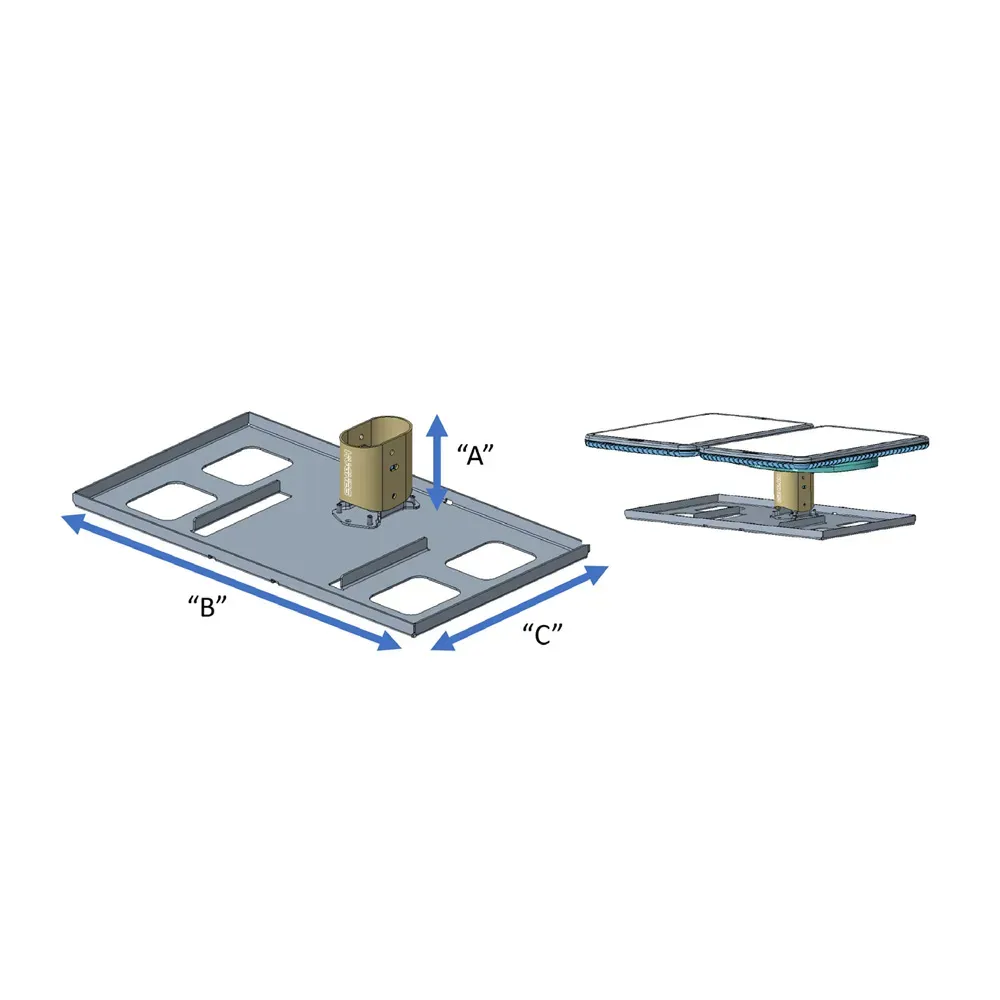

Dimensions
- Mount dimensions: 73.2 × 41.3 × 14.0 cm / 28.83 × 16.25 × 5.50 in.
- Short stanchion length: 12.0 cm / 4.72 in.
Weight
- Mount weight: 6.02 kg / 13.27 lbs.
- Short stanchion weight: 336 g / 0.74 lb.
Included
- Hughes non-penetrating mount tray
- Short stanchion
- Blind-mate guide
- Rubber mat
- Penetrating mount section
- Bolts, washers, and spring locks required for mount assembly
Additional
- Product type: Non-penetrating fixed antenna mount
- Compatibility: Hughes HL1120W outdoor unit
- Mounting configuration: Ballasted tray with short stanchion
- Minimum ballast: 22.7 kg / 50 lbs. total
- Recommended ballast format: 2 × 4 × 8 × 16 in. concrete blocks
- Required antenna tilt: 3 degrees forward
- Installation surface: Suitable flat horizontal surface
- Required sky visibility: Unobstructed view from 36 to 90 degrees above the terminal
