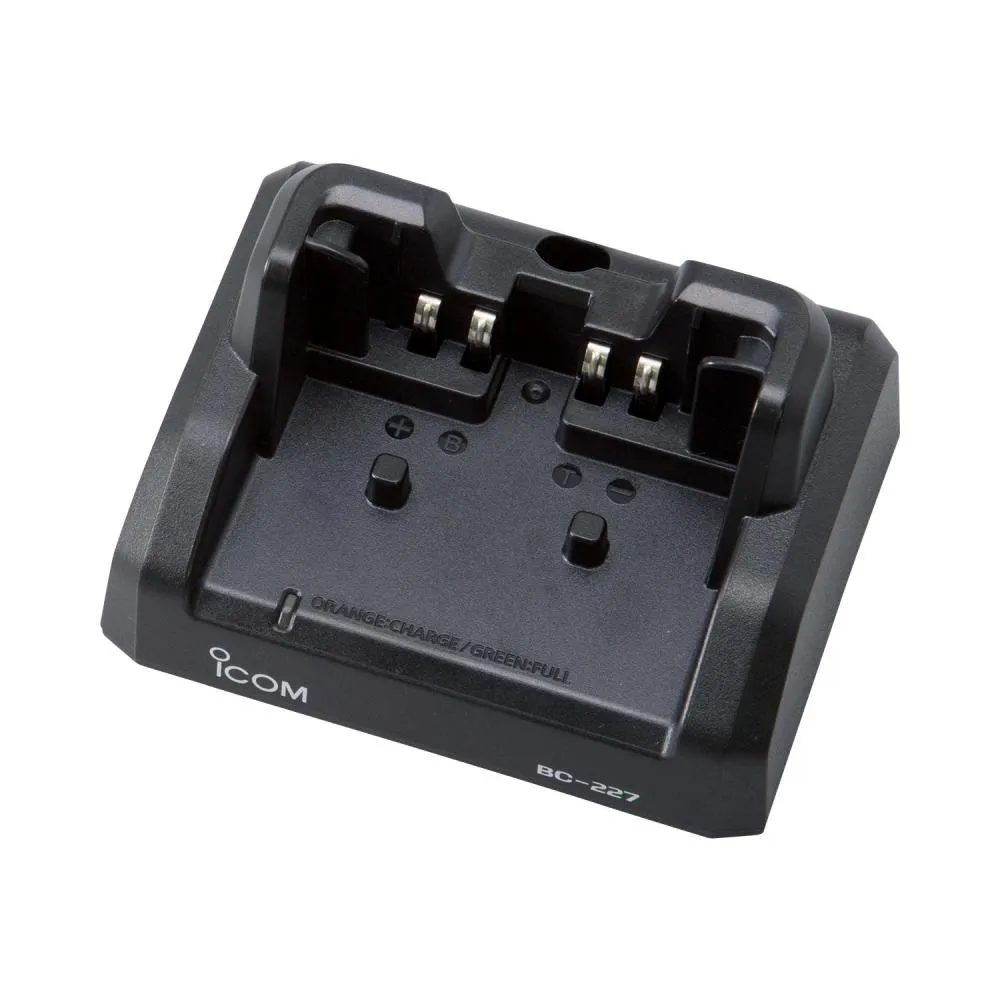

ICOM AC Adapter BC-227
Description
Rapid Charging for Compatible Batteries
The BC-227 supplies an 885 mA charging current to supported ICOM lithium-ion battery packs. Compatible batteries include:
- ICOM BP-283
- ICOM BP-284
- ICOM BP-290
- ICOM BP-294
- ICOM BP-303
- ICOM BP-303N
An integrated 10.5-hour protection timer limits extended rapid-charging operation.
Compact Desktop Design
The charger occupies little space on a desk, shelf, workbench, or radio console. It is intended for users who need to charge one radio or battery at a time rather than operate a connected multi-charger station.
Compatible ICOM Radios
ICOM lists the BC-227 for compatible radios including:
- ICOM IC-M85 and IC-M85UL
- ICOM IC-F3400D and IC-F4400D
- ICOM IC-F3600D and IC-F4600D
- ICOM IC-F52D and IC-F62D
- ICOM IC-F7010, IC-F7020, and IC-F7040
- ICOM IP730D and IP740D
- ICOM IP730D Lite and IP740D Lite
- ICOM IP-M60
Regional AC Adapter Versions
The supplied AC adapter varies by regional version:
- Version 22: BC-123SA with U.S. plug
- Version 23: BC-123SE with European plug
- Version 24: BC-123SV with Australian plug
Technical Specifications
Power
- Power-supply voltage: 12–16V DC
- Charging current: 885 mA
- Overcharge protection timer: 10.5 hours during rapid charging
- Power and charging management: Integrated control IC
Dimensions
- 9.5 × 7.2 × 4.9 cm / 3.7 × 2.9 × 1.9 in
Durability
- Operating temperature: +15°C to +40°C / +59°F to +104°F
Included
- ICOM BC-227 Rapid Desktop Charger
- Regional BC-123S-series AC adapter, depending on version
Additional
- Product type: Rapid desktop charger
- Battery chemistry: Lithium-ion
- Compatible battery packs: ICOM BP-283, ICOM BP-284, ICOM BP-290, ICOM BP-294, ICOM BP-303, ICOM BP-303N
- Charging indicator: LED
- Manufacturer: ICOM
- Model: BC-227
