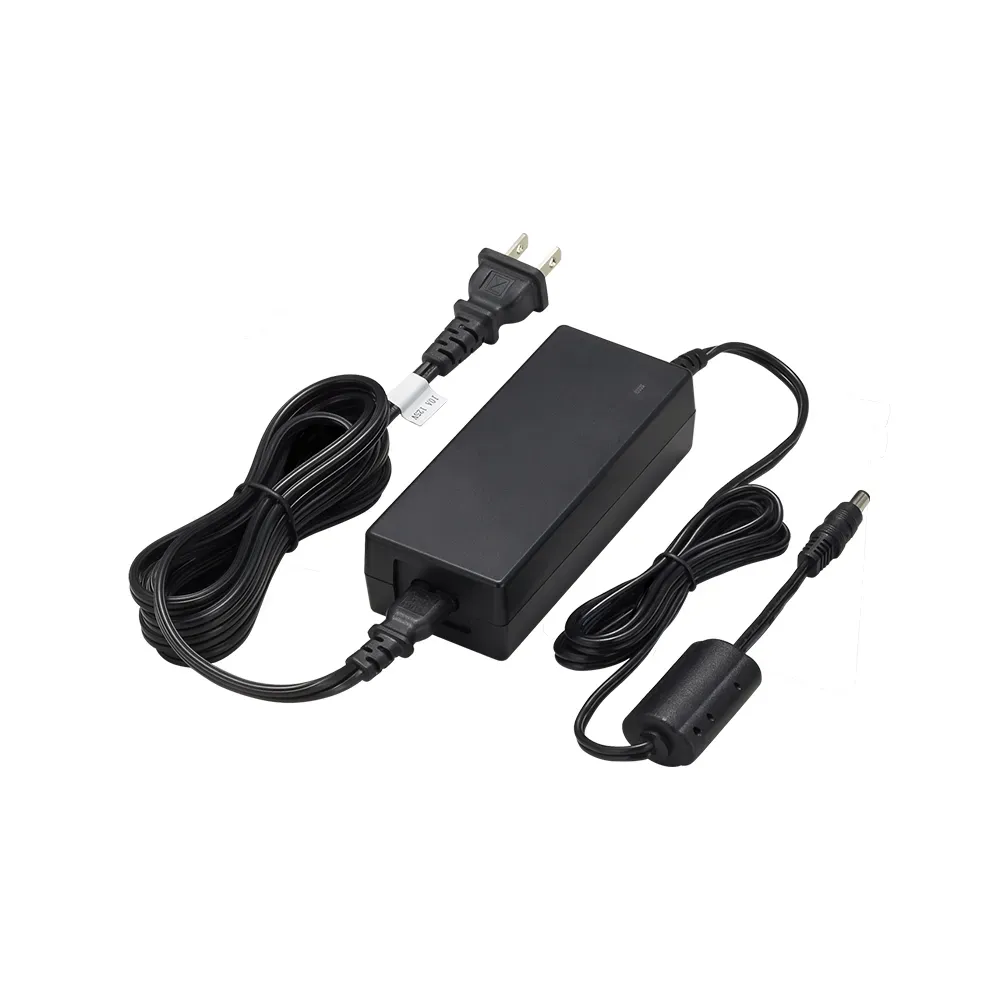

ICOM BC228 Connects 2-6 BC226 (AC adapter)
Description
Power for Multiple BC-226 Chargers
The BC-228 supplies power to as many as six interconnected Icom BC-226 desktop chargers. This allows several compatible radios or battery packs to charge from one adapter instead of requiring a separate AC adapter for every charging position.
Single- or Multi-Charger Operation
The adapter may also be used with one BC-226 charger. For installations connecting two through six BC-226 units, Icom specifies the BC-228 as the required power adapter.
Worldwide AC Input
A 100–240V AC input range supports use with common mains-power systems in different regions. The appropriate outlet connection may depend on the supplied power-cord version and destination market.
Technical Specifications
Power
- Input voltage: 100–240V AC
- Output voltage: 15V DC
- Output current: 4A
- Maximum connected BC-226 chargers: 6
- Supported configuration: One charger or two to six interconnected chargers
Dimensions
- DC cable length: 1.2 m / 47.2 in.
- AC power cord length: 1.83 m / 72 in.
Included
- Icom BC-228 AC Adapter
- AC power cord
Additional
- Product type: AC power adapter
- Manufacturer: Icom
- Model: BC-228
- Charger compatibility: Icom BC-226 and BC-202IP3L connectable desktop chargers
Interfaces
- DC connector outer diameter: 5.5 mm
- DC connector inner diameter: 2.1 mm
- DC connector length: 9.5 mm
