ICOM headset with earphone HS102
Description
Hands-Free Radio Communication

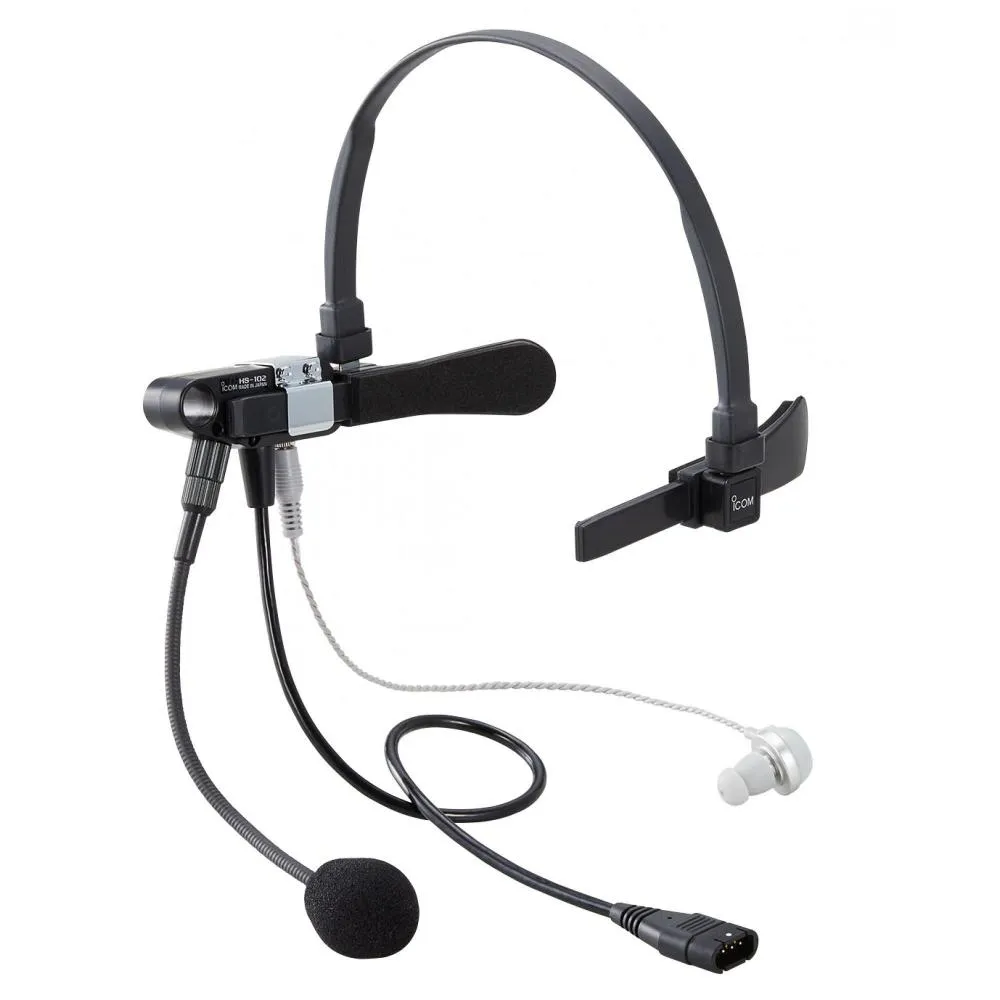

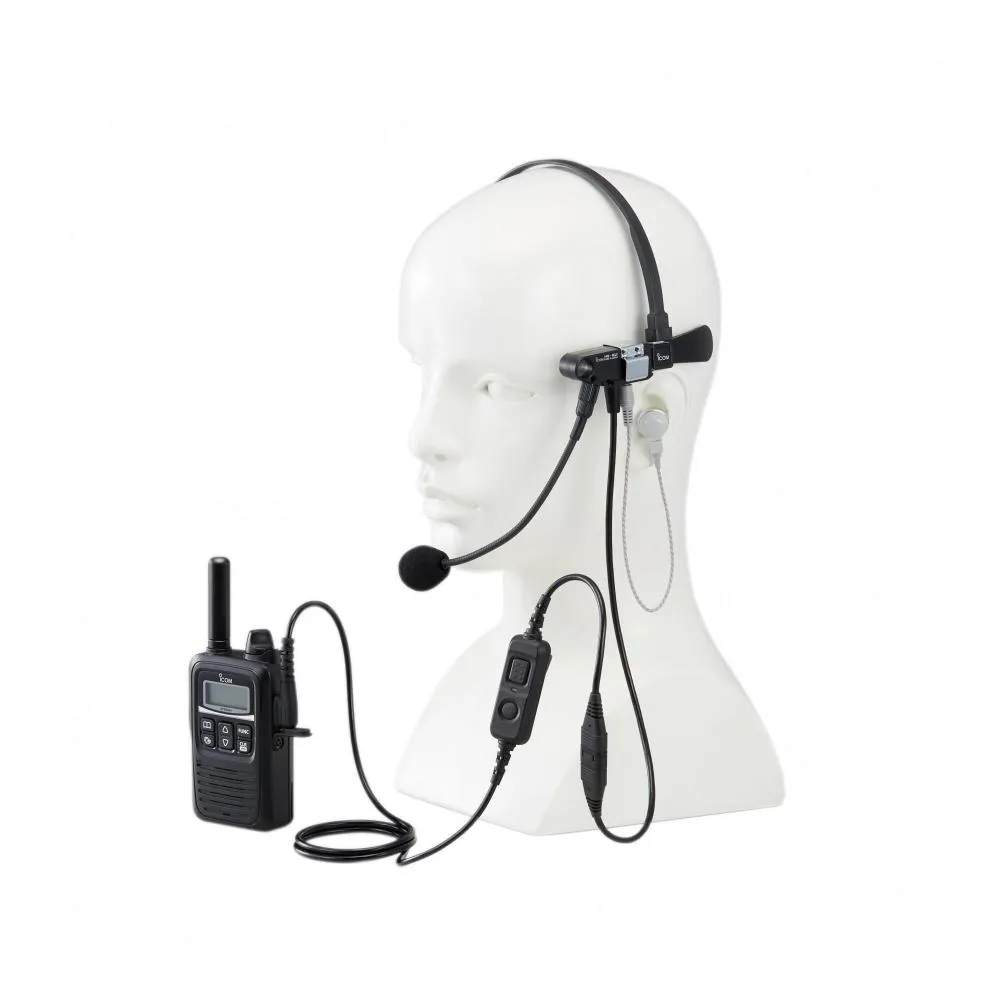

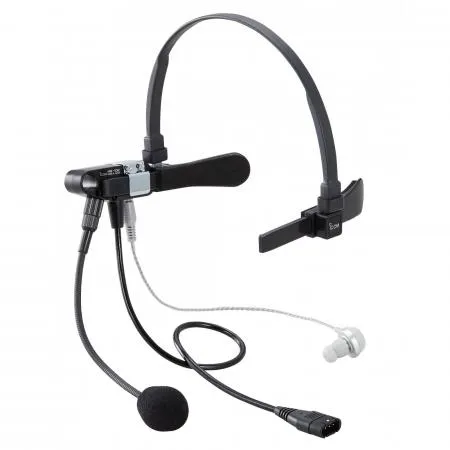

The HS-102 combines a single-ear earpiece and microphone in a lightweight wired headset. It keeps incoming audio close to the user’s ear while allowing voice communication without repeatedly lifting the radio.
This setup is practical for users who need to keep their hands available while coordinating staff, handling equipment, or moving between work areas.
Adjustable Microphone Sensitivity
A high/low microphone sensitivity switch allows the headset to be adjusted according to the user’s voice level and surrounding conditions. This provides more control over microphone pickup in quieter rooms or busier operating environments.
Radio Compatibility
ICOM lists the HS-102 for compatible IP and LTE radios including:
- ICOM IP501H
- ICOM IP503H and IP503H Lite
- ICOM IP100H
- ICOM IP504H
- ICOM IP510H
Compatibility varies by radio, and a connection or PTT cable may be required. The OPC-2359 PTT switch cable is specifically required for models such as the IP100H, IP501H, and IP503H.
Technical Specifications
Included
- ICOM HS-102 Headset with Earphone
Additional
- Headset Type: Single-ear earphone headset
- Integrated microphone
- Microphone Sensitivity: High/low selectable
- Compatible Radios: Selected ICOM IP100H, IP501H, IP503H, IP503H Lite, IP504H, and IP510H models
- Manufacturer: ICOM
- Model: HS-102
Interfaces
- Plug Type: Flat four-pole plug
- Plug-Side Cable Length: 300 mm / 11.8 in.
- Earphone-Side Cable Length: 200 mm / 7.9 in.
- Compatible Connection Cable: ICOM OPC-2359, depending on radio model
