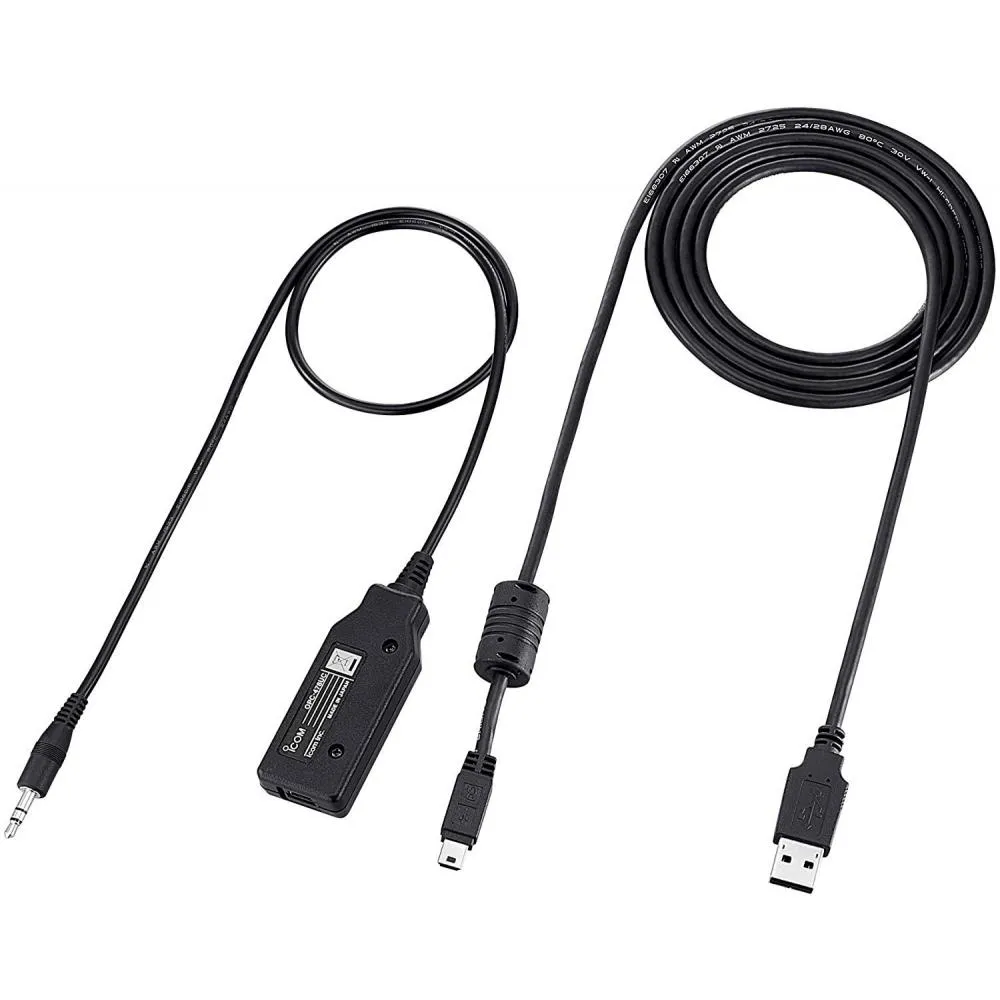

ICOM OPC478UC USB Programming Cable

Computer-Based Radio Programming

The OPC-478UC provides the data connection required by compatible ICOM cloning and programming software. It is useful for configuring replacement radios, maintaining standardized settings across a fleet, and saving radio configurations for future use.

The settings available depend on the connected radio and programming software.

Connection and Compatibility

The cable connects to a computer through USB and terminates in a 3.5 mm stereo plug. It works directly with radios that use the matching programming port, while other models require an additional adapter.

For the ICOM IP501H and IP503H programming setup, the required components are:

• ICOM CS-IP501H programming software
• ICOM OPC-478UC USB programming cable
• ICOM OPC-2144 plug adapter cable
• Compatible Windows computer

Compatibility should be confirmed for the specific radio before purchase because ICOM uses different programming cables and adapters across its product range.

Driver Installation

The appropriate ICOM USB driver must be installed before connecting and using the programming cable. Current drivers and installation instructions are available through ICOM’s support resources.

The cable and radio should remain connected and powered throughout read or write operations to avoid interrupting the programming process.
