ICOM Repeater CY-5300
Description
Analog and NXDN Digital Operation
The CY-5300 supports both analog FM and NXDN digital communication. Mixed-mode operation allows the repeater to receive analog or digital traffic on a programmed channel and retransmit it in the corresponding mode, providing a practical migration path for organizations that are not replacing every radio at once.

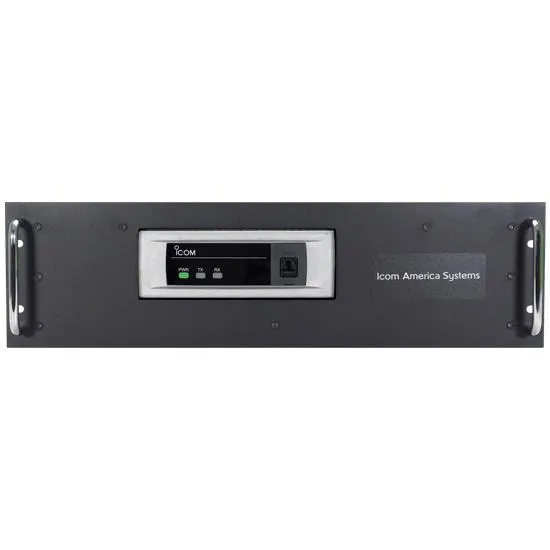

The repeater provides 32 channels in one zone and supports CTCSS, DTCS, and digital RAN access codes. Its front panel includes a 12-character display, programmable controls, and an internal speaker for local monitoring or base-station operation.
VHF Coverage and Output Power
The CY-5300 operates across the 136–174 MHz VHF band and provides selectable output levels of 50W, 25W, and 5W. The repeater module supports 50W operation at a 50% duty cycle or continuous 25W operation under the manufacturer’s specified conditions.
Actual communication range depends on antenna height and placement, terrain, building construction, feed-line loss, operating frequency, and system design. Appropriate duplexers, filters, antennas, and professional frequency coordination are required for a complete installation.
All-in-One Rack-Mount Design

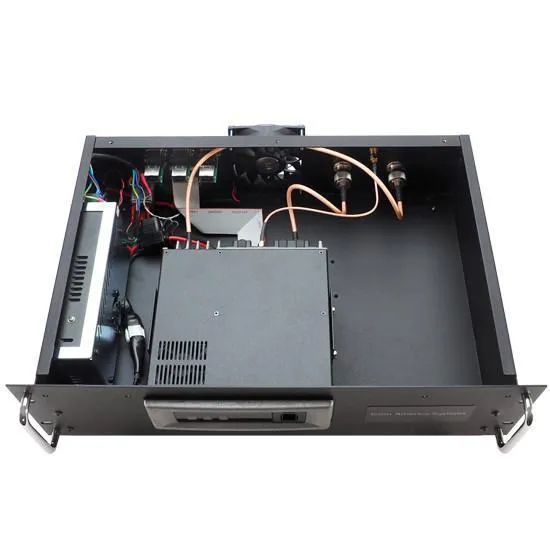

The repeater is built into a 19-inch rack-mount chassis with an internal 110/220V AC power supply. It also includes a heavy-duty, temperature-controlled cooling fan, N-type RF connectors, a grounding stud, shielded data ports, and a DB-25 accessory interface.
Available internal configurations can include:
- Receive preselector
- Notch duplexer
- Notch duplexer and receive preselector
These configurations can reduce the need for separate external components, depending on the frequencies and system requirements.
Automatic Battery Backup
The internal power supply supports automatic transfer to an external backup battery when AC power is lost. When AC power returns, the supply resumes powering the repeater and recharges the connected battery. ICOM confirms that compatible lead-acid or AGM batteries may be used.
Battery capacity, wiring, protection, ventilation, and installation requirements should be determined according to the required runtime and applicable electrical standards.
Expandable Radio System
The CY-5300 can operate as a conventional standalone repeater or be expanded using the optional UC-FR5300 network/controller board and applicable software. Available system configurations include:
- NXDN simulcast conventional
- Multisite conventional
- Single-site trunking
- Multisite trunking
- Receiver voting
- IP-based monitoring and maintenance
Simulcast configurations use synchronized repeaters operating on the same frequency pair to improve coverage across larger or difficult service areas. Optional controller hardware, software, and a GNSS antenna are required.
Technical Specifications
Power
- RF output power: 50W, 25W, or 5W
- Repeater-module power requirement: 13.6V DC nominal
- Internal power supply: 110/220V AC
- Transmit current: 15A maximum at 50W
- Receive current: Standby with fan off: 500 mA, Maximum audio: 1.9A
- Battery-backup support: Automatic external battery switchover and charging
- Compatible backup battery chemistry: Lead-acid or AGM
Display
- Display type: 12-character alphanumeric LCD
- Programmable controls: 5 front-panel buttons
- Status indicators: Transmit, receive, digital mode, and channel activity indicators
Dimensions
- 48.3 × 13.3 × 31.1 cm / 19.0 × 5.25 × 12.25 in
Weight
- 6.57 kg / 14.5 lbs
Durability
- Operating temperature: -30°C to +60°C / -22°F to +140°F
- Cooling: Temperature-controlled 80 CFM fan
- Installation format: 19-inch rack-mount chassis
Included
- ICOM CY-5300 VHF Repeater
- Integrated UR-FR5300 repeater module
- Internal AC power supply
- AC power cable
- Rack-mount chassis
- Instruction documentation
Additional
- Frequency range: 136–174 MHz
- Frequency stability: Standard: ±1.0 ppm or less, GNSS corrected: ±0.1 ppm or less
- Digital receiver sensitivity: 0.32 µV typical at 1% BER
- Analog receiver sensitivity: 0.25 µV typical at 12 dB SINAD
- Audio output: 3.9W typical into 4 ohms
- Antenna impedance: 50 ohms
- Repeater module: ICOM UR-FR5300
- Compatible optional controller: ICOM UC-FR5300
- Manufacturer: ICOM
- Model: CY-5300
Calling Features
- Operating modes: NXDN digital, Analog FM, Digital/analog mixed mode
- Channel capacity: 32 channels / 1 zone
- Channel spacing: 6.25, 12.5, and 25 kHz
- Analog access control: CTCSS and DTCS
- Digital access control: RAN
- DTMF encoder and decoder
- CW station identification
- PTT priority control
- Internal speaker for base-station operation
Data Network
- Optional IP network connectivity
- Optional single-site trunking
- Optional multisite trunking
- Optional multisite conventional operation
- Optional NXDN simulcast conventional operation
- Receiver voting support
- Remote programming and maintenance with optional controller
- SNMP trap and Syslog support with optional network/controller board

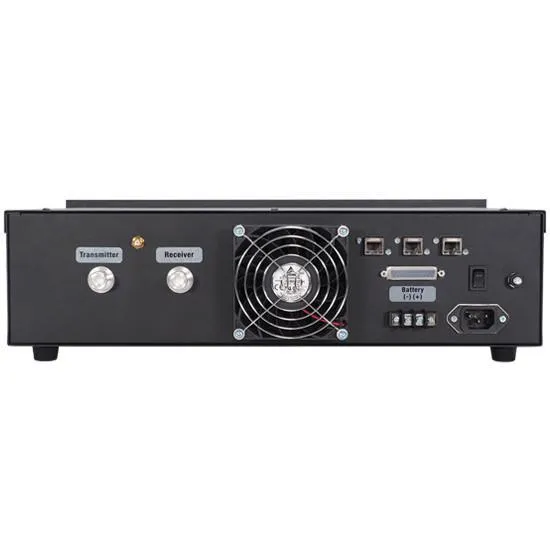

Interfaces
- RF antenna connection: N-type, 50 ohms
- External equipment interface: DB-25
- External battery connection: Screw-terminal connector
- Data connections: 3 shielded data ports
- Ground connection: Built-in grounding stud
- Optional network interface: Ethernet through UC-FR5300 controller
- Optional GNSS connection: Through compatible controller and GNSS antenna
