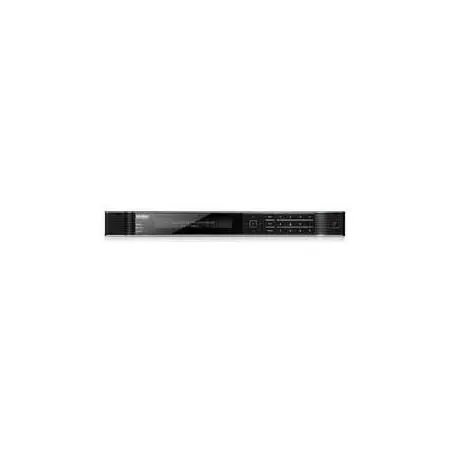

Intellian AC 19" Rack-mount ACU w/iARM for Intellian t240CK (T3 model) BP-TA01

Control and Monitoring for the t240CK

The BP-TA01 serves as the primary below-deck controller for the Intellian t240CK. It provides access to antenna status, tracking and satellite settings, installation parameters, system diagnostics, and other controls needed to operate and maintain the antenna system.

The t240CK is a stabilized 2.4-meter marine television antenna capable of receiving C-band and Ku-band television services simultaneously from the same satellite. The BP-TA01 is supplied with supported T3 configurations of this system.

Rack-Mount Installation

The ACU is designed for installation in a standard 19-inch equipment rack. This format is suited to large yachts, cruise ships, commercial vessels, and offshore platforms where satellite, network, and entertainment equipment is organized in a dedicated below-deck rack.

The unit should be installed in a dry, ventilated, and service-accessible equipment area according to the t240CK installation manual.

Local and Web-Based Management

Built-in Wi-Fi allows technicians and operators to connect to the ACU from a compatible computer or mobile device. The t240CK management interface supports antenna monitoring and configuration, satellite-library management, firmware updates, diagnostic information, and performance logging.

This access is useful for:

• Initial antenna commissioning and alignment
• Selecting and configuring satellites
• Monitoring tracking and operating status
• Updating firmware and satellite data
• Reviewing system logs and diagnostic information
• Replacing a damaged or failed compatible ACU

Model-Specific Compatibility

The BP-TA01 is identified for the Intellian t240CK T3 system. Intellian produces different controllers for other antenna families and hardware generations, so the antenna model, generation, and existing system connections should be verified before purchase.
