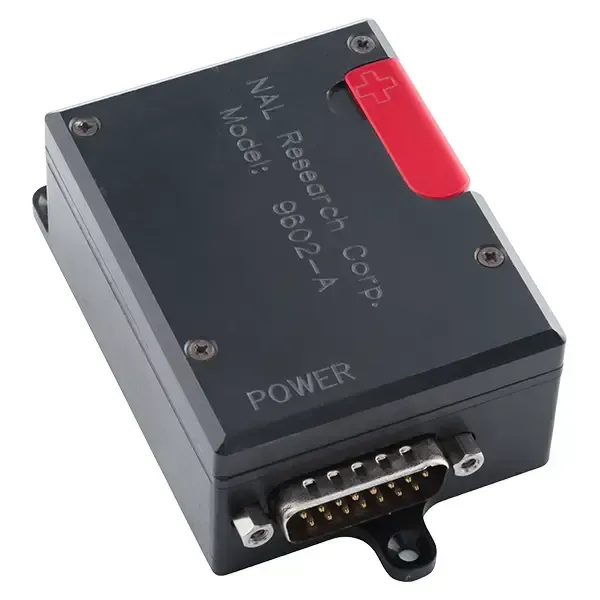

NAL Iridium 9602-A
The NAL Iridium 9602-A is a compact satellite transceiver designed to provide reliable two-way data communications over the Iridium satellite network. Built around the Iridium 9602 SBD transceiver, it simplifies integration into custom tracking, telemetry, and remote monitoring systems by combining satellite communications with a compact, deployment-ready design.
Ideal for OEMs, system integrators, and organizations operating beyond cellular coverage, the 9602-A supports applications such as asset tracking, fleet management, environmental monitoring, industrial automation, and remote sensing. Its low power consumption and rugged construction make it well suited for long-term deployments in demanding environments.
Satellite Phone Store provides expert guidance, fast shipping, and compatible Iridium SBD service plans to help businesses build reliable satellite IoT and machine-to-machine (M2M) solutions.
Description
Reliable Global Satellite Communications
The NAL Iridium 9602-A communicates through the Iridium satellite network, providing truly global coverage for short data messages. Whether monitoring equipment in remote locations, tracking mobile assets, or collecting sensor data, it delivers dependable connectivity where cellular networks are unavailable or unreliable.
The transceiver supports two-way Short Burst Data (SBD), allowing systems to both send operational data and receive commands or configuration updates from remote operators.
Designed for OEM and Embedded Applications
Built for integration into custom equipment, the 9602-A offers a compact form factor that simplifies installation in space-constrained systems. Its serial communication interface and support for standard AT commands allow developers to integrate satellite communications into existing hardware and software with minimal complexity.
The module is well suited for products that require reliable low-bandwidth satellite communications without the size or power requirements of larger satellite terminals.
Built for Remote Monitoring
The NAL Iridium 9602-A is commonly deployed in applications where dependable communication is more important than high data throughput. Typical use cases include:
- Fleet and vehicle tracking
- Industrial telemetry
- Remote equipment monitoring
- Environmental data collection
- Utility infrastructure monitoring
- Oil and gas operations
- Maritime tracking
- Scientific research projects
Its efficient power consumption makes it suitable for battery-powered and solar-powered systems operating for extended periods.
Flexible Integration
The transceiver is designed to work with compatible external Iridium antennas and host controllers, giving developers flexibility when designing custom solutions. Support for the standard Iridium AT command set helps reduce development time and simplifies deployment across a variety of industries.
Features
- Global Iridium coverage
- Two-way satellite data
- Compact OEM design
- Low power operation
- AT command support
- Embedded integration
- Remote monitoring ready
- Industrial applications
Package
NAL Iridium 9602-A Includes:
- NAL Iridium 9602-A Satellite Transceiver
- Product documentation
Technical Specifications
Dimensions
- 69 mm x 55 mm x 32 mm (2.73" x 2.17" x 1.26")
Weight
- 179 g (6.3 oz)
Durability
- Operating Temp: –40°C to +85°C (–40°F to +185°F)
- Operating Humidity: < 75% RH
Battery
- Low power consumption
- Designed for embedded applications
- Sleep mode support
Additional
- Compact OEM form factor
- OEM integration ready
- Compatible with external Iridium antennas
- Supports custom telemetry applications
Data Network
- Iridium Short Burst Data (SBD)
- Global Iridium satellite coverage
- Two-way satellite data
- Mobile-originated messaging
- Mobile-terminated messaging
- Standard AT command interface
- Serial communication
Interfaces
- UART serial interface
- RF antenna connection
- Power input
- Control interfaces
