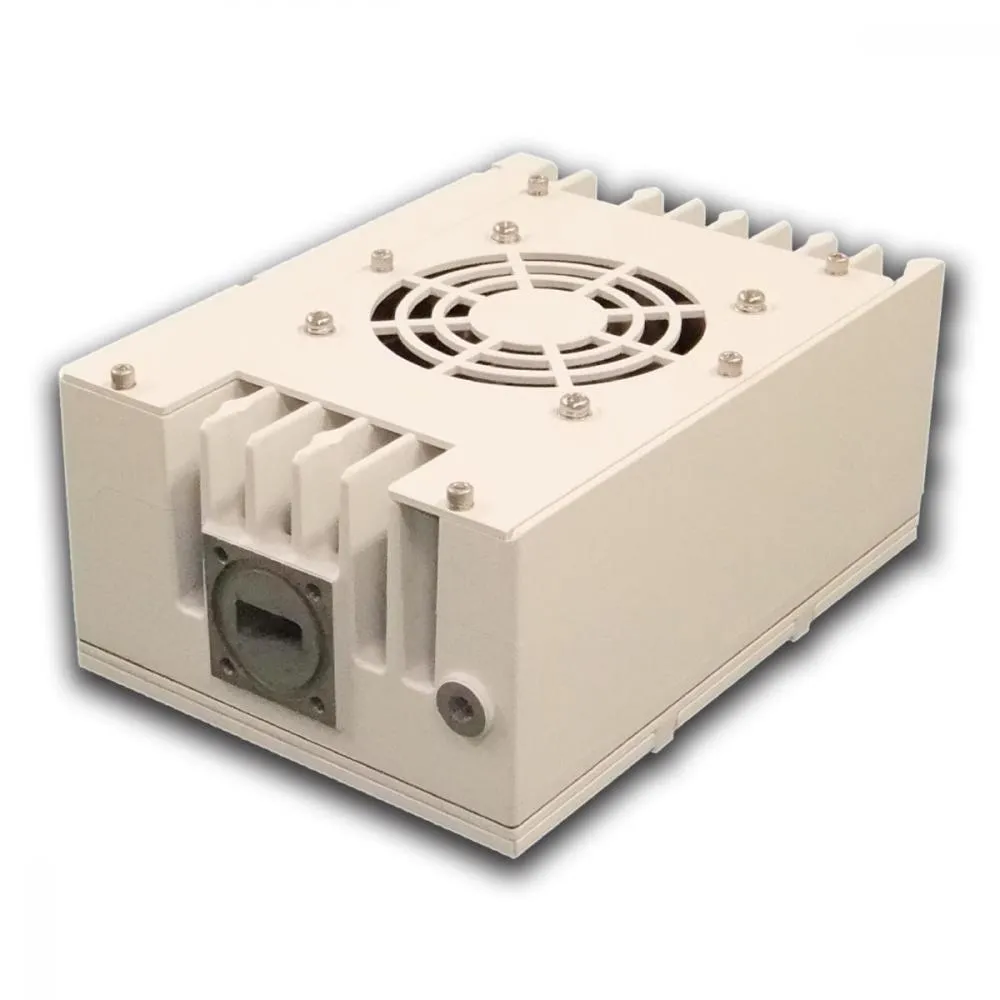

Intellian NJRC Ku-band Extended Mini 16W BUC w/M&C (NJT 8319UNMR) V1-2213
Description
Universal Ku-Band Uplink Coverage
The NJT8319UNMR operates across the 13.75–14.5 GHz universal Ku-band uplink range. It accepts a 950–1,700 MHz IF signal and uses a 12.8 GHz local oscillator, allowing compatible terminals to operate across both standard and extended Ku-band uplink frequencies.
16W RF Output
The BUC provides a minimum P1dB output of +42 dBm, equivalent to 16W. Its nominal linear gain is 68 dB, with a specified minimum of 62 dB, supporting compatible satellite systems used for internet access, voice, operational communications, and other network services.
RS-232C Monitoring and Control
The NJT8319UNMR includes an RS-232C M&C interface for integration with compatible antenna and terminal controls. This interface supports remote monitoring and management of operating status and transmission functions.
A built-in LED provides a local visual status indication during installation, maintenance, and troubleshooting.
Separate DC Power Connection
The N-type female connector carries the L-band IF signal and reference signal, while DC power is supplied through a separate MS connector. The BUC operates from a nominal 48V DC source and accepts an input range of 36–60V DC.
At P1dB output, power consumption is approximately 160W typical and 180W maximum. The power system and wiring must therefore be suitable for the BUC’s voltage and current requirements.
Outdoor VSAT Installation
The weatherized enclosure carries an IP67 rating and uses forced-air cooling to manage heat during operation. It is suitable for installation within compatible stabilized marine antennas and outdoor fixed VSAT assemblies.
Technical Specifications
Power
- RF output power at P1dB: 16W / +42 dBm minimum
- Input voltage: 36–60V DC
- Nominal input voltage: 48V DC
- Power consumption at P1dB: 160W typical, 180W maximum
- DC power input: Separate MS connector
Dimensions
- 18.0 × 13.0 × 8.0 cm / 7.09 × 5.12 × 3.15 in.
Weight
- 2.4 kg / 5.3 lbs
Durability
- Ingress protection: IP67
- Construction: Weatherized outdoor enclosure
- Cooling: Forced air
- Operating temperature: -40–75°C / -40–167°F
- Performance-guaranteed temperature: -40–55°C / -40–131°F
- Compliance: RoHS
Included
- Intellian V1-2213 NJRC NJT8319UNMR Universal Ku-Band 16W BUC with RS-232C M&C
Additional
- Product type: Block upconverter
- Manufacturer: NJRC / Nisshinbo Micro Devices
- BUC model: NJT8319UNMR
- Intellian part number: V1-2213
- Frequency band: Universal Ku-band
Data Network
- RF output frequency: 13.75–14.5 GHz
- IF input frequency: 950–1,700 MHz
- Local oscillator frequency: 12.8 GHz
- Linear gain: 68 dB nominal, 62 dB minimum
- ACPR: -28 dBc maximum at +41 dBm output
- Output power at P1dB: +42 dBm minimum
Interfaces
- IF input connector: N-type female, 50 ohms
- RF output interface: WR-75 waveguide with groove
- DC power connection: MS connector
- Monitoring and control interface: RS-232C
- Status indicator: Integrated LED
