Peplink AP One Rugged
Description
Reliable Wireless Coverage
The AP One Rugged delivers simultaneous dual-band Wi-Fi 5 connectivity, allowing devices to connect over either the 2.4 GHz or 5 GHz band for improved performance and reduced interference. It supports up to 300 Mbps on 2.4 GHz and up to 866 Mbps on 5 GHz, making it suitable for business applications, mobile operations, and industrial connectivity.
Multiple operating modes—including Bridge, Router (NAT), Mesh, and Wireless Distribution System (WDS)—provide flexibility for expanding or integrating wireless networks.
Built for Harsh Environments
Unlike traditional office access points, the AP One Rugged is designed to operate reliably in challenging environments.
Its rugged construction features:
- Industrial metal enclosure
- Operating temperatures from -40°C to 65°C
- Shock and vibration resistance
- Railway and transportation certifications
- Electromagnetic compatibility certifications

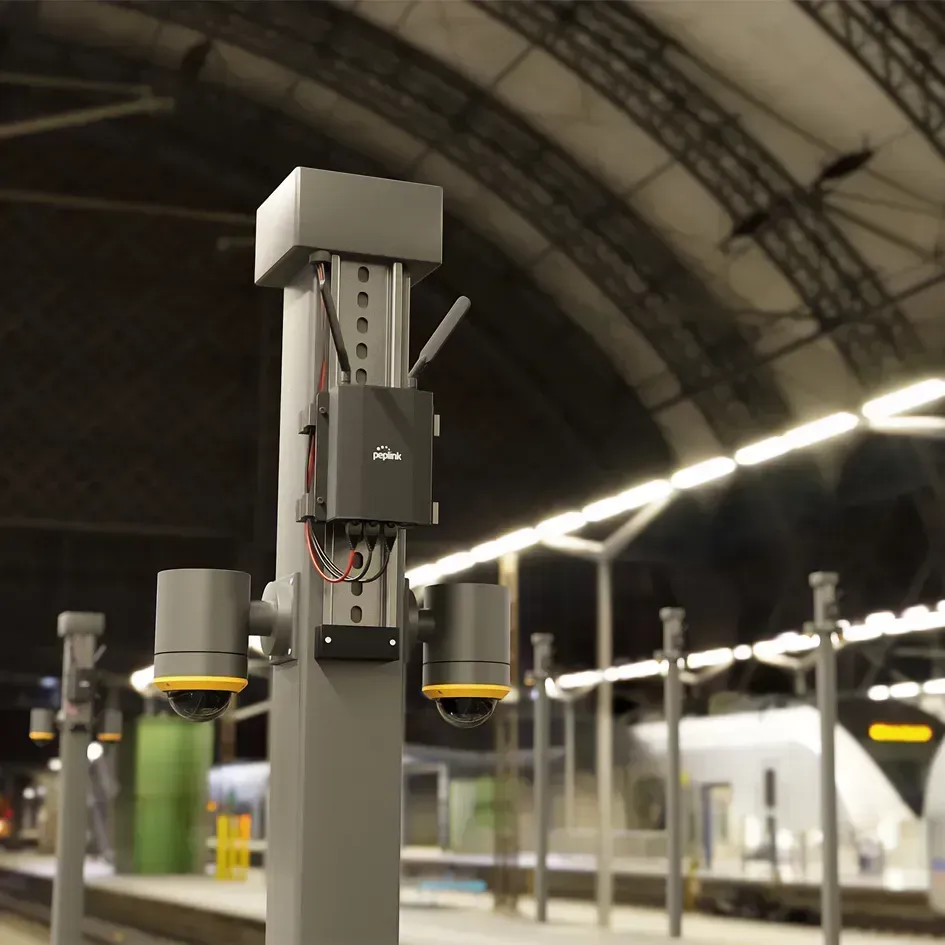

These capabilities make it well suited for vehicles, rail systems, industrial facilities, outdoor cabinets, and other demanding installations.
Enterprise Wi-Fi Management
The AP One Rugged includes enterprise-grade wireless management features that simplify deployment across single or multiple sites.
Supported capabilities include:
- Up to 16 SSIDs
- WPA2/WPA3 security
- VLAN support
- Captive portal integration
- Client isolation
- Bandwidth management
- SNMP monitoring
- InControl cloud management
Organizations can centrally configure, monitor, and maintain wireless deployments using Peplink's management tools.
Flexible Installation
The compact enclosure allows installation in locations where space is limited while supporting multiple power options for easier deployment.
The access point supports:
- 802.3at Power over Ethernet (PoE+)
- 10–30 V DC power input
- External Wi-Fi antennas
- Three Gigabit Ethernet ports
These options provide flexibility when integrating the device into industrial control cabinets, vehicles, communication racks, or fixed infrastructure.
Designed for Professional Deployments
The AP One Rugged is commonly used to extend dependable wireless coverage in applications such as:
- Fleet vehicles
- Public transportation
- Rail systems
- Industrial automation
- Warehouses
- Manufacturing facilities
- Public safety vehicles
- Remote infrastructure
Its rugged construction and enterprise networking capabilities make it suitable for deployments that require reliable wireless connectivity under demanding operating conditions.
Features
- Industrial Wi-Fi access point
- Dual-band Wi-Fi 5
- Rugged metal enclosure
- PoE+ powered
- Three Gigabit ports
- Cloud management
- Mesh networking support
- Extreme temperature operation
Package
Peplink AP One Rugged Includes:
- Peplink AP One Rugged access point
- 12 V power adapter
- 2 × Wi-Fi antennas
- Quick start guide
Technical Specifications
Power
- 10–30 V DC input
- 802.3at PoE+
- Maximum power consumption: 13 W
Dimensions
- 12.21 × 10.7 × 3.5 cm / 4.8 × 4.2 × 1.4 in
Weight
- 0.365 kg / 0.8 lbs
Durability
- Ruggedized metal enclosure
- Operating temperature: -40°C to 65°C (-40°F to 149°F)
- Humidity: 15–95% non-condensing
- EN 50155 railway certified
- EN 50121-3-2 certified
- EN 50121-4 certified
- EN 61373 shock and vibration certified
- FCC, CE, IC, E-Mark, RoHS compliant
Included
- AP One Rugged
- 12V2A Power Supply (ACW-632)
- 2 x Wi-Fi Antenna (ACW-342)
Additional
- Bridge mode
- Router (NAT) mode
- Mesh networking
- Wireless Distribution System (WDS)
- WPA/WPA2/WPA3 security
- VLAN support
- InControl cloud management
- SNMP v1/v2c/v3
- 1-year limited warranty
Data Network
- Wi-Fi 5 (802.11ac) 2×2 MIMO
- Simultaneous dual-band operation
- 2.4 GHz: Up to 300 Mbps
- 5 GHz: Up to 866 Mbps
- Up to 60 recommended concurrent users per radio
- Up to 16 SSIDs

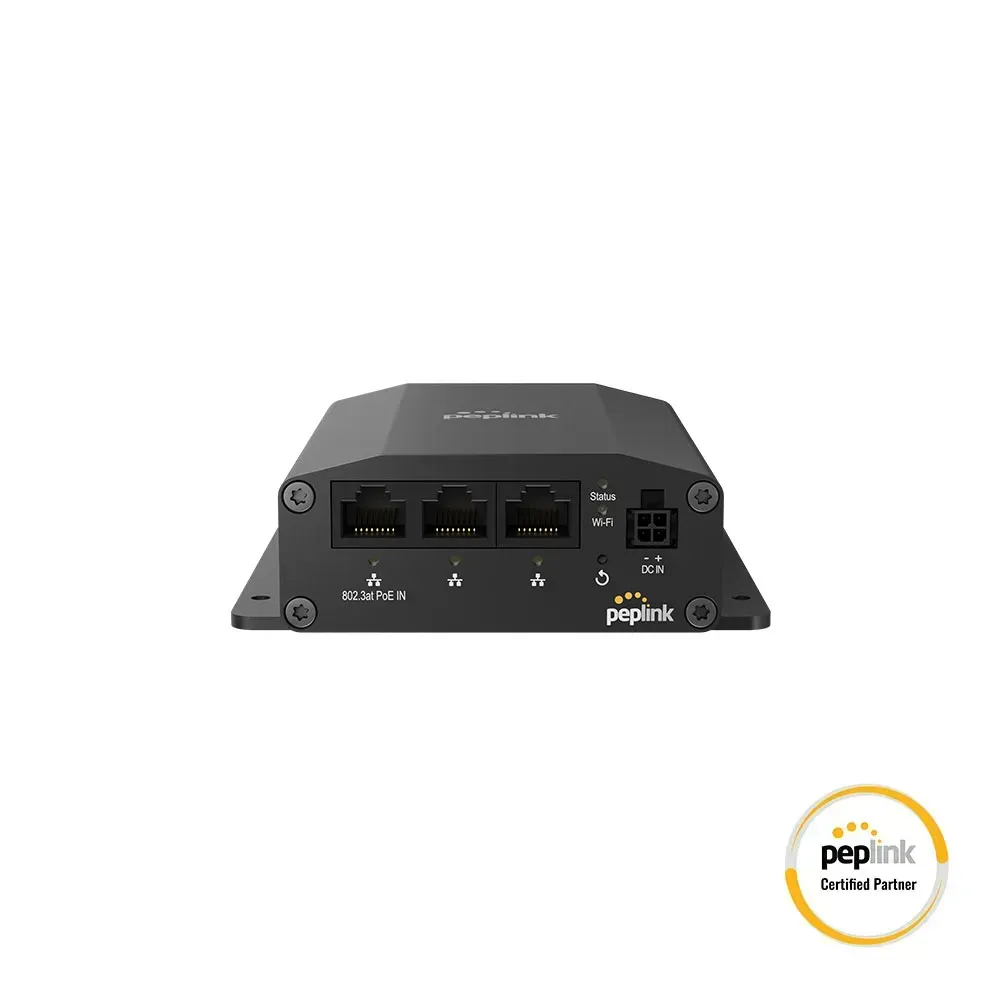

Interfaces
- 3× Gigabit Ethernet ports
- 2× RP-SMA Wi-Fi antenna connectors
- 802.3at PoE+ input
- 10–30 V DC power input
