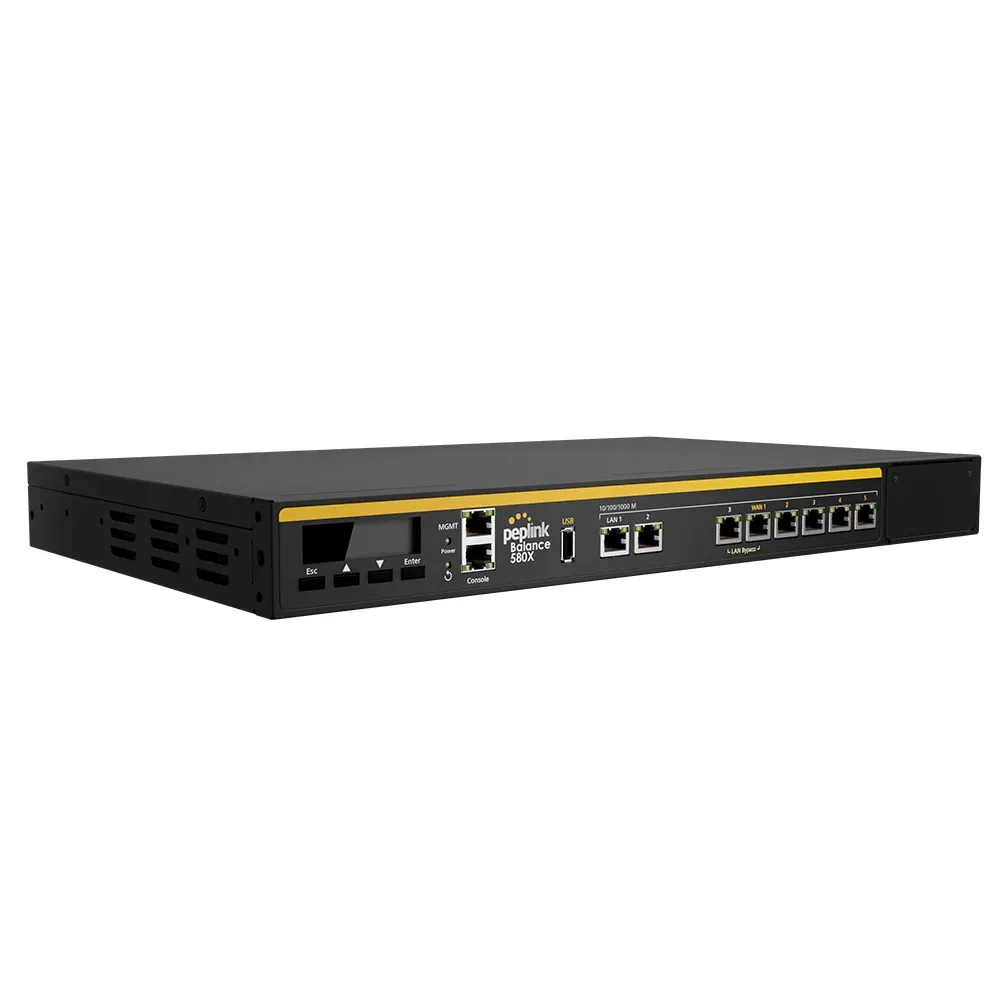

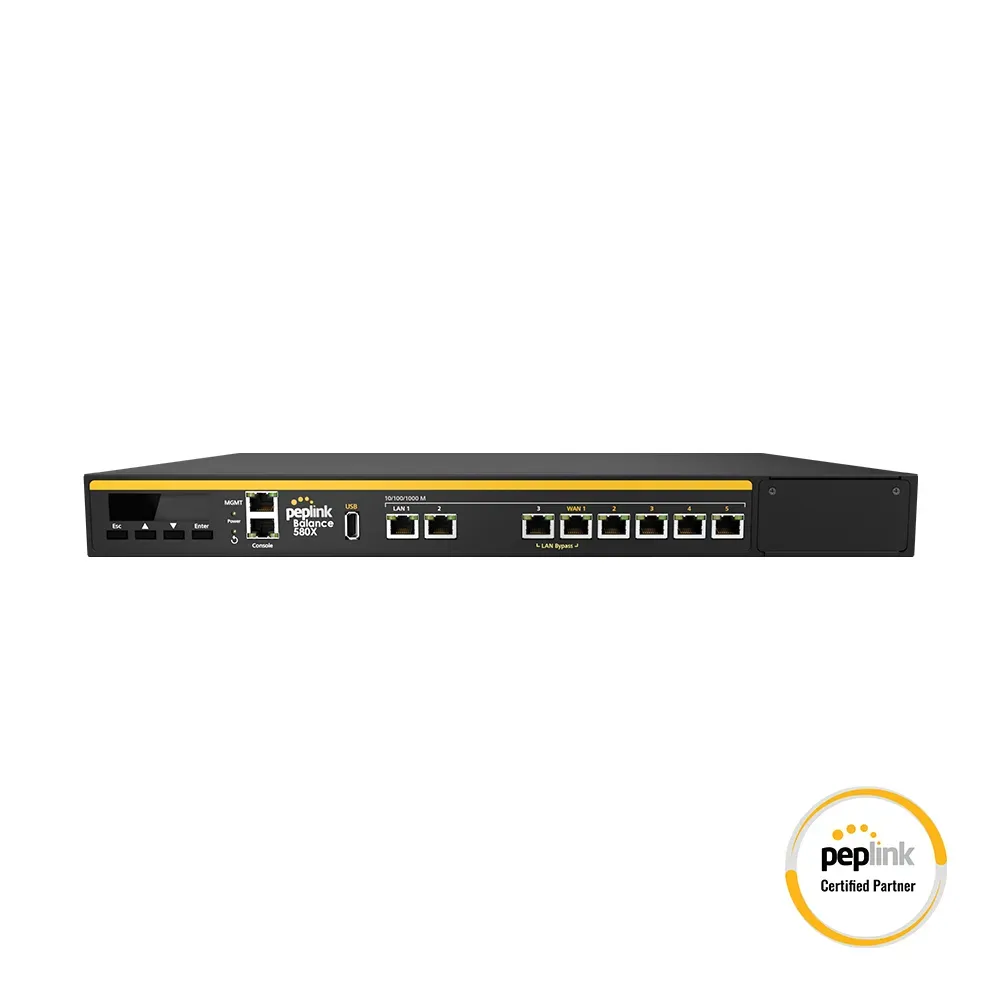

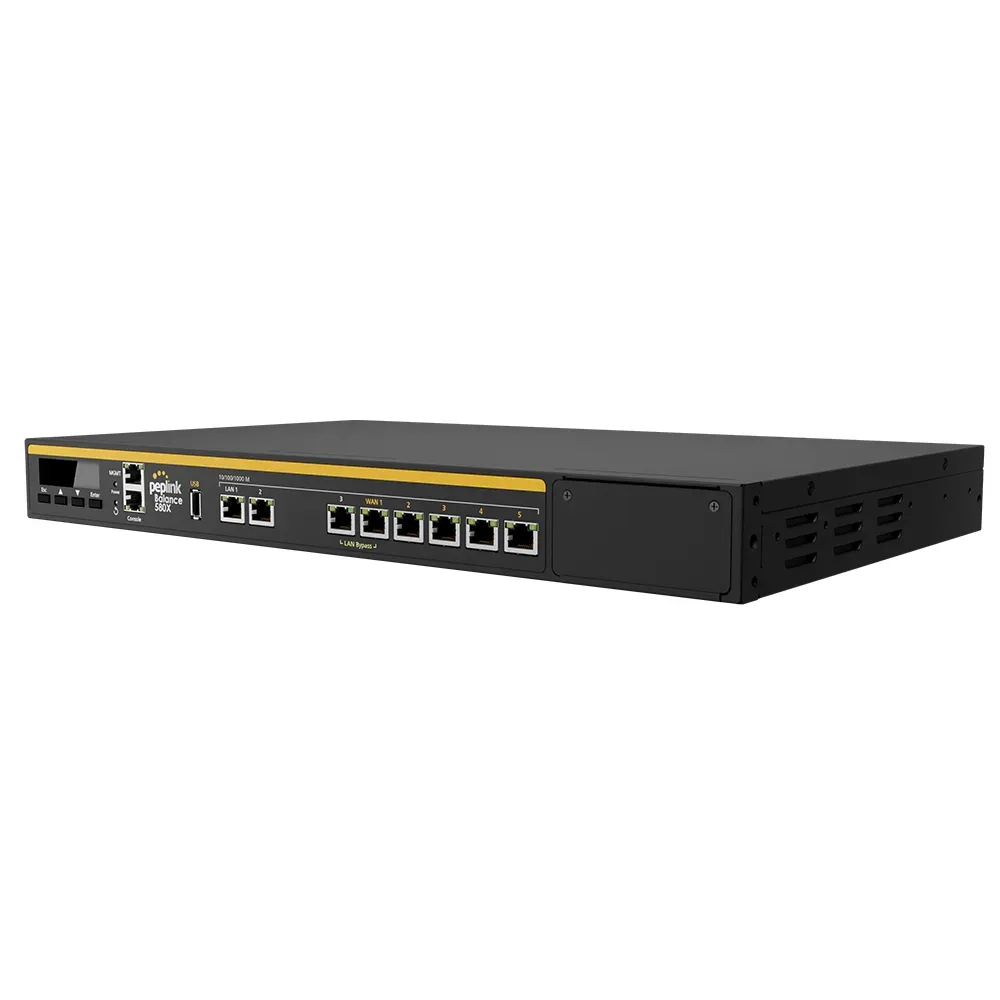

Peplink Balance 580X

Peplink Balance 580X - Enterprise Multi-WAN Router with PoE++

The Peplink Balance 580X combines high-speed routing, flexible Multi-Gig connectivity, and powerful PoE++ output in a 1U rack-mount platform. Recommended for 500 to 2,000 users, it delivers up to 8Gbps routing throughput to support demanding enterprise networks and multi-site deployments.

Flexible 10G and 2.5G Connectivity

Dedicated 10G Ethernet WAN and LAN ports provide high-speed connections for internet access and local network infrastructure. Four additional 2.5G Ethernet WAN/LAN ports can be configured through the web administration interface to suit your network topology, alongside four dedicated 2.5G LAN ports. Two USB-C WAN interfaces offer further options for compatible Peplink adapters and USB dongles.

Reliable Networking with SpeedFusion

SpeedFusion Bandwidth Bonding, Hot Failover, and Smoothing help maintain reliable connectivity across multiple WAN connections. With up to 1Gbps SpeedFusion VPN throughput, both with and without 256-bit AES encryption, the Balance 580X supports secure, high-bandwidth communication between locations. It supports 100 SpeedFusion VPN peers by default, with optional licenses available to expand capacity to 300 or 500 peers.

Eight PoE++ Ports with a 720W Power Budget

Eight 2.5G Ethernet ports provide 802.3bt Type 4 PoE++ output, with a total power budget of 720W. Power compatible devices such as pan-tilt-zoom cameras, Wi-Fi 7 access points, and external cellular equipment directly from the router, reducing the need for separate power injectors and simplifying cabling.

Optional 5G, LTE, and SIM Management Expansion

A FlexModule Mini slot allows the Balance 580X to expand with an optional 5G, LTE, or SIM Injector module, sold separately. A compatible cellular module enables SIM options including Mini-SIM, Peplink eSIM, bring-your-own eSIM, RemoteSIM, and FusionSIM. The optional SIM Injector module supports centralized SIM management for connected Peplink Dome or Antenna MAX solutions.

Centralized Management and Network Control

Peplink InControl 2 provides centralized cloud management, while the router's local interface supports on-site administration. The built-in AP and switch controller supports up to 100 managed devices. High Availability, Drop-In Mode, content filtering, and remote user access provide additional flexibility for enterprise network deployments.

Built-In Edge Computing

Docker support and 8GB of internal storage allow compatible applications to run directly on the router. External storage is supported through USB, providing additional flexibility for edge services and network applications.

Designed for Rack Installation

The Balance 580X fits into a standard 1U rack space and includes a rack mounting kit with screws. It accepts 100V to 240V AC power and operates at temperatures from 0°C to 40°C, making it suitable for office network racks and controlled equipment rooms.
