High-Performance Maritime Connectivity

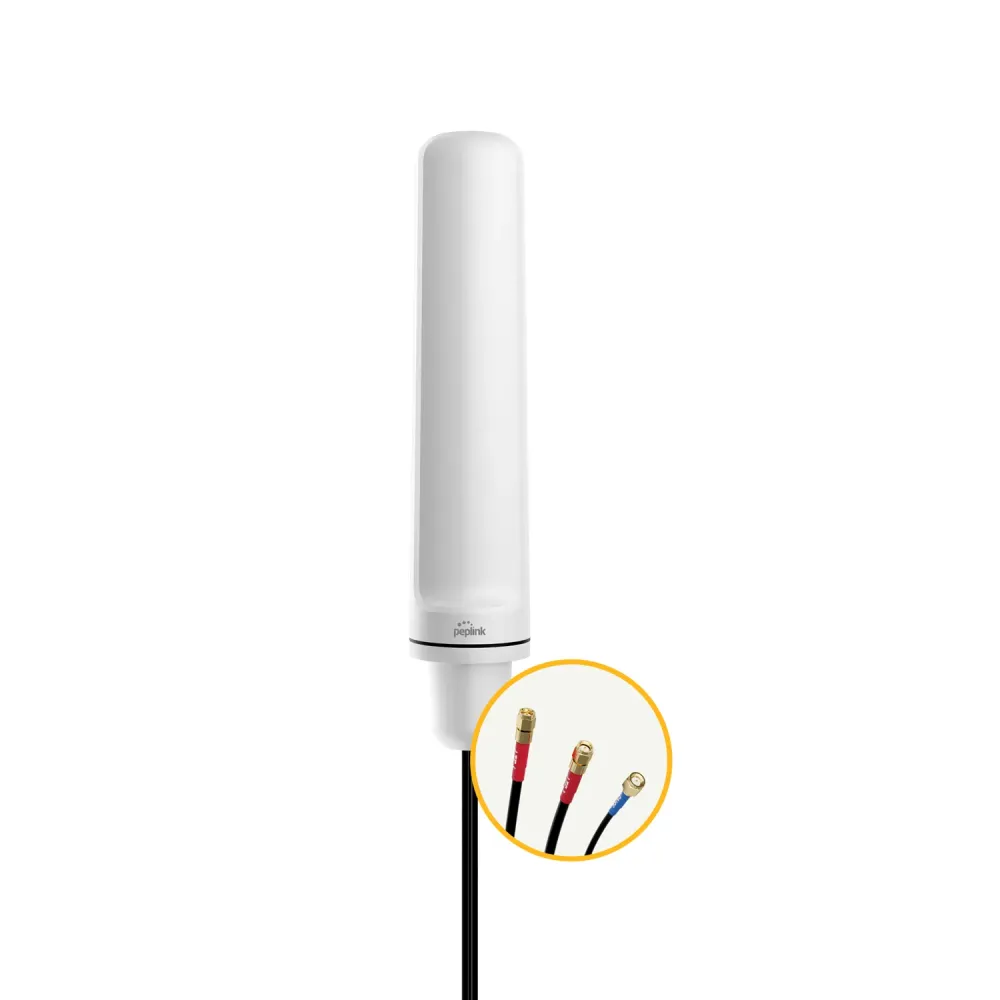

The Peplink Maritime Antenna 20G is a cutting-edge solution designed specifically for maritime applications. Boasting dual LTE/5G and a single GPS channel, this antenna is engineered to deliver robust and reliable connectivity on the high seas. With its ultra-wide bandwidth, the Maritime 20G ensures seamless access to LTE and 5G networks, while the built-in high gain LNA GPS receiver offers precise tracking capabilities.
Durability Meets Innovation
Crafted with durability in mind, the Maritime 20G features an IP68 rated housing that is both durable and UV-stable, ensuring it can withstand harsh maritime conditions. Its omnidirectional design guarantees optimal signal reception in all directions, making it an ideal choice for a wide range of maritime installations. The antenna's sleek white design and easy installation process make it a versatile and aesthetically pleasing addition to any vessel.
Versatile Applications and Easy Installation
The Maritime 20G supports a standard maritime 1" 14 TPI thread mount and comes with an L-shape mount for non-standard installations, offering unparalleled flexibility. Designed to cover cellular bands as well as 2.4 & 5GHz Wi-Fi frequencies, this antenna is a comprehensive solution for maritime communication needs. For Wi-Fi usage, an SMA to RP-SMA adapter is required, further enhancing its versatility.
Technical Specifications
Power
- Maximum cellular feed power handling: 10 W
- GPS operating voltage: 3.3 V
- GPS power consumption: 8.5 ±2.5 mA at 3.3 V
Dimensions
- Diameter: 9.6 cm / 3.78 in.
- Height: 48.4 cm / 19.04 in.
- Cable length: 2 m / 6.5 ft.
- Supported pole diameter: 2.5–5.0 cm / 1–2 in.
- Packaged dimensions: 66.8 × 15.3 × 15.5 cm / 26.3 × 6.0 × 6.1 in.
Weight
- 1.84 kg / 4.05 lbs
Durability
- Enclosure rating: IP68
- Housing material: UV-stable polycarbonate
- Cable jacket: UV-resistant PVC
- Operating temperature: -40°C to 80°C / -40°F to 176°F
- Storage temperature: -40°C to 80°C / -40°F to 176°F
- Wind survivability: 160 km/h / 100 mph
- Salt-spray testing: MIL-STD-810F / ASTM B117
- Compliance: RoHS, REACH, and WEEE
Additional
- Antenna configuration: 2 cellular and 1 GPS element
- Radiation pattern: Omnidirectional
- Color: White
- Mounting options: Standard maritime 1-inch, 14 TPI thread mount, Pole mount, Wall mount, L-shaped bracket mount
- Product code: ANT-MR-20G-S-W-6
Data Network
- Cellular antenna elements: 2
- Cellular configuration: 2×2 MIMO
- Cellular frequency range: 410–6000 MHz
- Cellular peak gain: 3.2 dBi at 410–470 MHz, 5.4 dBi at 617–960 MHz, 4.9 dBi at 1710–2700 MHz, 6.2 dBi at 3400–4200 MHz, 6.8 dBi at 4900–6000 MHz
- Cellular VSWR: Less than 2.5 at 410–470 MHz, Less than 3.0 at 617–960 MHz, Less than 2.5 at 1710–6000 MHz
- Cellular input impedance: 50 ohms
- Cellular polarization: Linear
- Wi-Fi frequency support: 2.4 GHz and 5 GHz when used with suitable SMA-to-RP-SMA adapters
- GPS frequency range: 1561–1602 MHz
- GPS peak gain: 0.5 dBi at 1575 MHz, 1.6 dBi at 1602 MHz
- GPS VSWR: Less than 2.5
- GPS output return loss: 10 dB maximum
- GPS LNA gain: 28 ±3 dB
- GPS noise figure: 1.5 dB maximum at 3.3 V
Interfaces
- Connectors: 3 × SMA male 2 × LTE/5G, 1 × GPS
- Cellular cable type: CFD-200
- Cellular cable diameter: 5.0 mm / 0.2 in.
- Cellular cable loss: 0.33 dB/m at 900 MHz, 0.49 dB/m at 2000 MHz, 0.55 dB/m at 2500 MHz, 0.87 dB/m at 5800 MHz
- GPS cable type: RG-174
- GPS cable diameter: 2.7 mm / 0.1 in.
- GPS cable loss: 3.4 dB/m at 1000 MHz, 4.9 dB/m at 1800 MHz
