Peplink MAX BR1 Mini LTE
Description
Reliable LTE Connectivity
The MAX BR1 Mini LTE is built to maintain reliable internet access over cellular networks when wired broadband is unavailable. Its embedded LTE modem supports download speeds of up to 150 Mbps (Cat 4 models), while redundant SIM slots allow automatic switching between carriers for improved uptime where multiple cellular providers are available.
The router also includes an Ethernet WAN option, allowing it to use wired internet whenever available while maintaining LTE as a backup connection.
Built for Industrial and Mobile Environments
Designed for continuous operation, the MAX BR1 Mini LTE is housed in a compact metal enclosure suitable for demanding environments.
Its industrial design includes:
- Wide operating temperature range
- DC terminal block and barrel power input
- Passive PoE support
- External cellular and Wi-Fi antenna connections
These features make it suitable for permanent installations in vehicles, cabinets, kiosks, control systems, and remote infrastructure.
Flexible Networking Features
The router combines LTE, Ethernet, and Wi-Fi connectivity into a single device. Integrated routing, firewall, VPN, and remote management capabilities make it appropriate for organizations managing distributed equipment or mobile fleets.
Peplink's SpeedFusion and PepVPN technologies help improve connection resilience across multiple WAN sources when deployed within compatible Peplink environments.
Easy Deployment
Installation is straightforward thanks to its compact footprint and multiple power options. The router can be mounted inside vehicles, equipment enclosures, communications cabinets, or other space-constrained locations.
Management is performed through Peplink's web interface and optional InControl cloud management platform, allowing administrators to monitor and configure deployments remotely.
Ideal for Professional Applications
The MAX BR1 Mini LTE is commonly deployed in applications where dependable cellular connectivity is essential, including:
- Fleet and commercial vehicles
- Public safety and emergency response
- Industrial automation
- Remote monitoring systems
- Construction sites
- Digital signage
- Mobile offices
- RV and mobile internet installations
Its combination of reliability, compact size, and professional networking capabilities makes it suitable for both fixed and mobile deployments.
Features
- Industrial LTE router
- Dual SIM redundancy
- Integrated Wi-Fi
- Ethernet WAN backup
- SpeedFusion VPN support
- Compact metal housing
- Wide temperature operation
- Remote cloud management

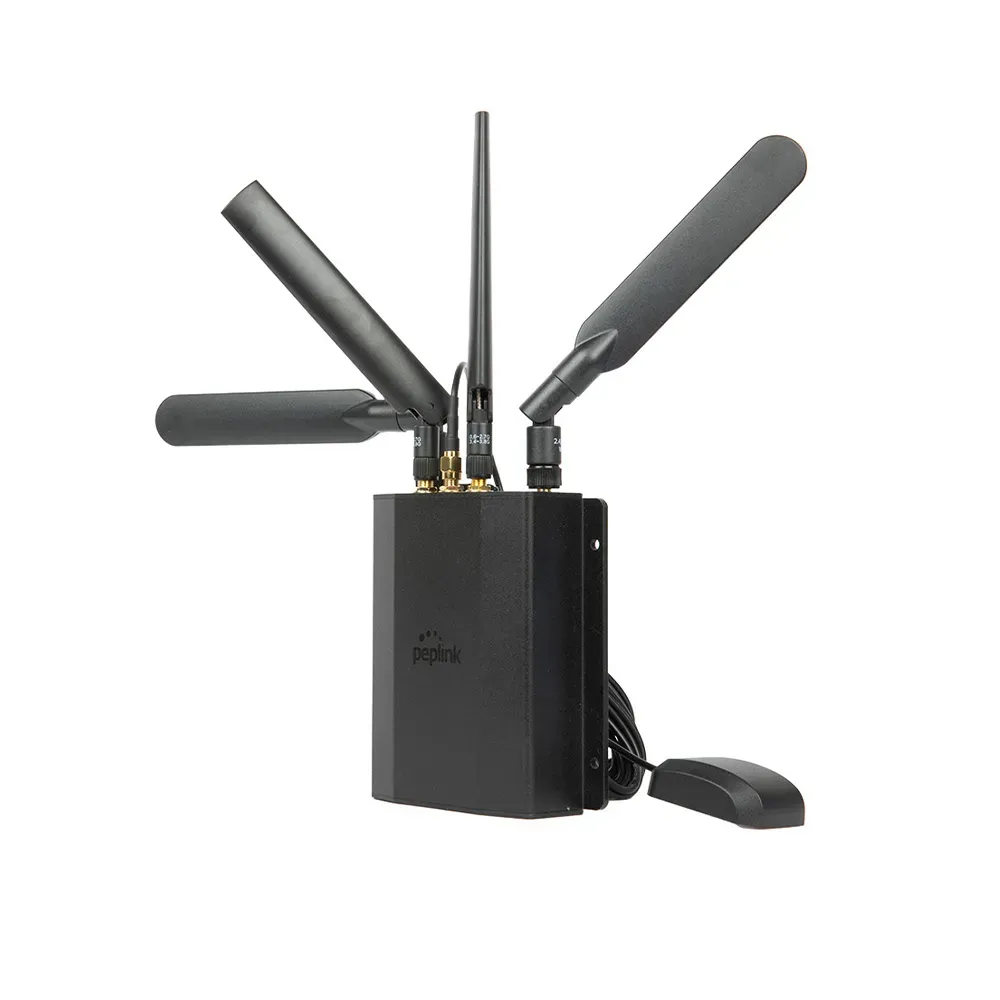

Package
Peplink MAX BR1 Mini LTE Includes:
- 1x BR1 Mini
- 2x LTE Antennas (ACW-235)
- 2x Dual Band Wi-Fi Antennas (ACW-342)
- 1x GPS Active Antenna (ACW-232)
- 1x 12V 2A 4pin Power Supply (ACW-632)
Technical Specifications
Power
- Input: 12–28 VDC
- DC barrel connector
- Terminal block power input
- Passive PoE input (12–28 VDC)
- Power consumption: 1.8 W nominal, 12 W maximum
Dimensions
- 12.57 × 10.7 × 3.5 cm / 5.0 × 4.2 × 1.4 in
Weight
- 0.43 kg / 0.95 lbs
Durability
- Operating Temperature: -40° – 149°F (-40° – 65°C)
- Humidity: 15% – 95% (non-condensing)
Included
- 1x BR1 Mini
- 2x LTE Antennas (ACW-235)
- 2x Dual Band Wi-Fi Antennas (ACW-342)
- 1x GPS Active Antenna (ACW-232)
- 1x 12V 2A 4pin Power Supply (ACW-632)
Additional
- Router throughput: 100 Mbps
- Supports approximately 60 users
- Stateful firewall
- PepVPN and SpeedFusion support
- InControl cloud management compatible
- 1-year limited warranty
Data Network
- Embedded LTE Cat 4 modem
- LTE download: Up to 150 Mbps
- LTE upload: Up to 50 Mbps
- Dual SIM slots with redundancy
- 1× Cellular WAN

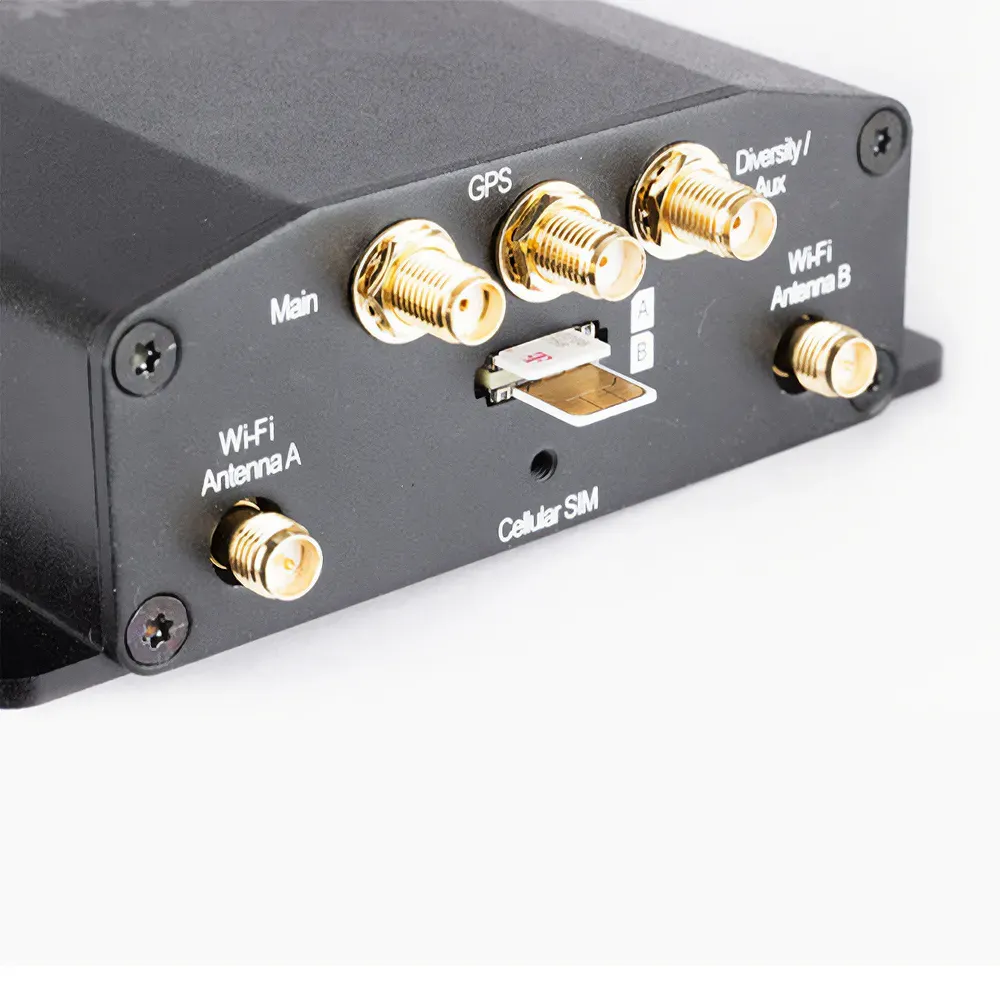

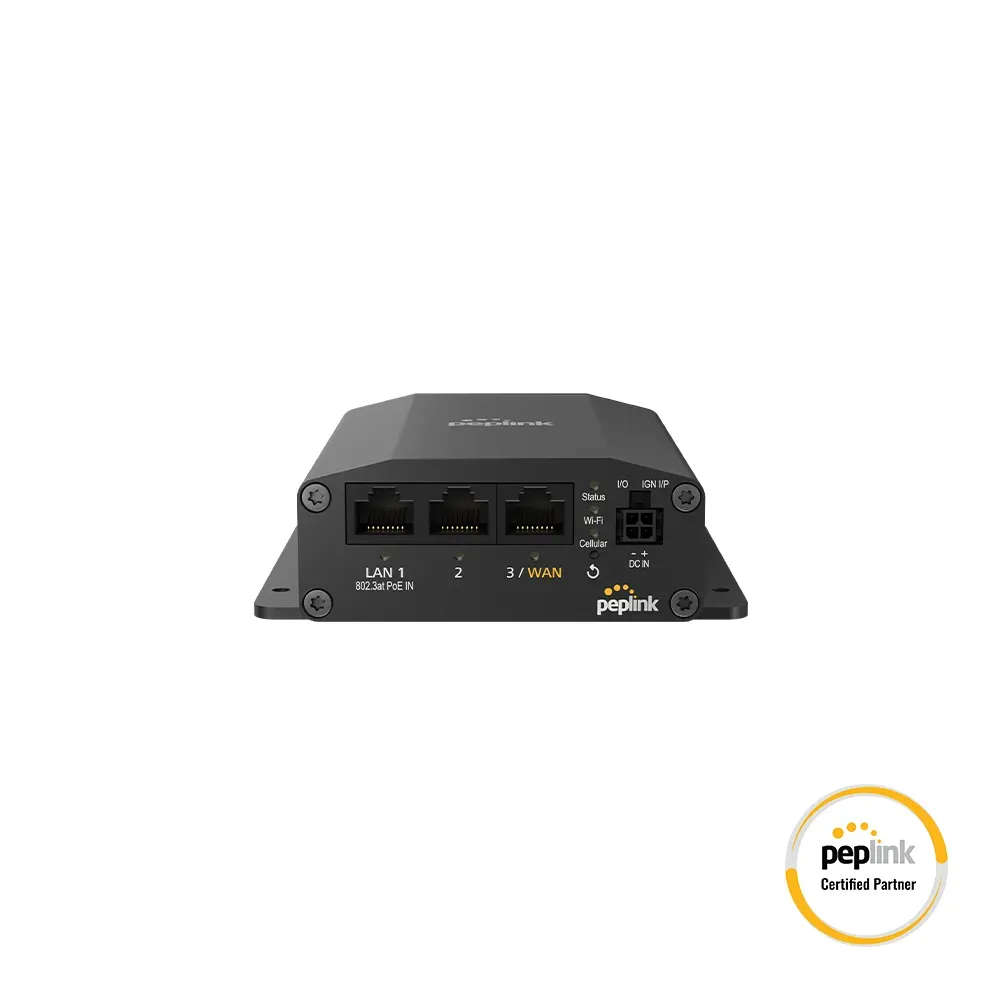

Interfaces
- 1× 10/100 Mbps Ethernet WAN/LAN
- 1× 10/100 Mbps LAN
- 802.11b/g/n Wi-Fi (WAN or Access Point)
- 2× SMA cellular antenna connectors
- 1× RP-SMA Wi-Fi antenna connector
- 1× SMA GPS antenna connector (model dependent)
- DC barrel connector
- Terminal block power input
- Passive PoE input
