Peplink MAX HD1 Dome Pro
Description

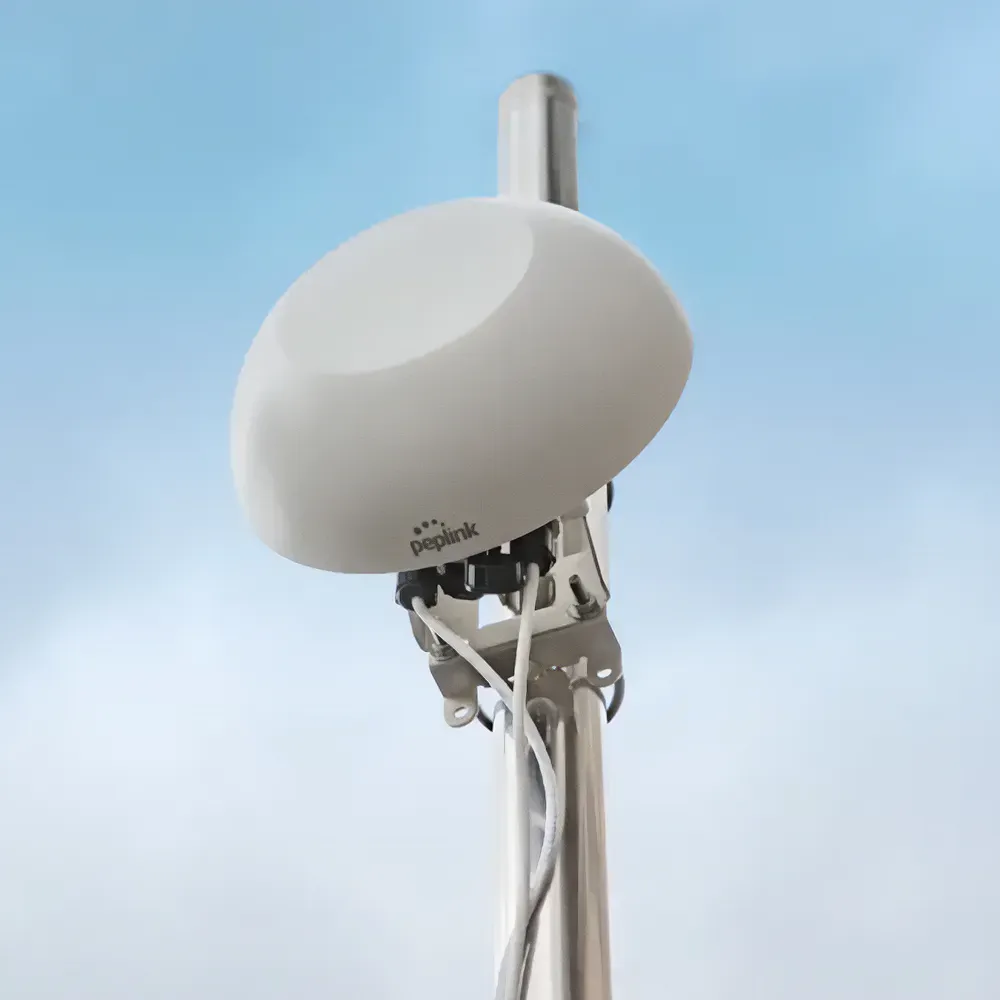

Peplink MAX HD1 Dome Pro: The Pinnacle of Outdoor 5G Connectivity
The Peplink MAX HD1 Dome Pro is a state-of-the-art 5G cellular router designed for the challenging conditions of outdoor deployments. By combining advanced 5G technology with robust Wi-Fi capabilities, the HD1 Dome Pro ensures superior speed and signal quality, minimizing cable loss through its integrated cellular antennas. This device is the embodiment of outdoor interconnectivity refinement, offering unparalleled performance in any environment.
Versatile Network Solutions for Every Need
Equipped with Wi-Fi 6 and Wi-Fi as WAN support, the HD1 Dome Pro offers the versatility needed to optimize your network efficiently. It allows for easy network expansion and bandwidth cost optimization, supported by SpeedFusion's hot failover options to eliminate interruptions. Its straightforward design provides multiple installation possibilities, including an M35 screw mount and an Ethernet splitter for wall or pole mounting, ensuring it fits seamlessly into any setup.
Enhanced Performance and Easy Integration
The HD1 Dome Pro is built to enhance your network's performance through its Power over Ethernet (PoE) functionality. By connecting to Peplink PoE routers, it creates a mega-bandwidth channel with simple failover options. Moreover, its compatibility with external access points extends Wi-Fi coverage effortlessly. The addition of a SIM injector offers instant flexibility, allowing management of up to 10 physical SIMs, further enhancing the HD1 Dome Pro's utility in diverse operational scenarios.
Remote Management and Advanced Security
With remote management capabilities via Peplink's InControl2, managing your network has never been easier or more accessible. The HD1 Dome Pro is equipped with comprehensive security features, including WPA & WPA2 and a stateful firewall, ensuring your network remains secure. Its complete VPN solution, including SpeedFusion technology for site-to-site VPN and hot failover, guarantees reliable, encrypted connections across your network.
Features
- 5G Outdoor Router
- Integrated Wi-Fi 6
- SpeedFusion VPN
- Flexible Mounting
- PoE Enabled
- SIM Management
- Remote Control via InControl2
- Advanced QoS Settings
- Integrated GPS
- Comprehensive Security
Package
Peplink MAX HD1 Dome Pro Includes:
- MAX HD1 Dome Pro
- Ethernet Splitter
- 2x Waterproof Ethernet Connector (ACW-112)
- Mounting Kit Set
Technical Specifications
Power
- Power Input: 1x 802.3at PoE+
- Power Output: 1x 802.3af PoE (with Ethernet Splitter)
- Power Consumption: 20 W (max., without PoE output)
Dimensions
- 4.33 in (radius) x 4.53 in (height)
Weight
- 3.75 lbs (1.7 kg)
Durability
- Enclosure: Rugged outdoor IP67 (with Ethernet Splitter)
- Operating Temperature: -40°F–149°F / -40°C–65°C
- Humidity: 15%–95% (non-condensing)
Included
- MAX HD1 Dome Pro
- Ethernet Splitter
- 2x Waterproof Ethernet Connector (ACW-112)
- Mounting Kit Set
Additional
- Recommended Users: 150
- Antenna: 4x4 Internal MIMO Cellular Antennas, 2x2 Internal MIMO Wi-Fi Antennas, 1x Internal GPS Antenna
- Warranty: 1-Year Limited Warranty
Data Network
- Cellular Data Rate (Downlink/Uplink): 5G: 3.4 Gbps / 900 Mbps
Usage Control Features
- SIM Options: Nano-SIM (4FF), Peplink eSIM, BYO eSIM (2 profiles)5, RemoteSIM from SIM Injector, FusionSIM
Interfaces
- WAN Interface: 1x 5G/LTE Modem with Redundant SIM Slots1
- LAN Interface: 1x 10/100/1000M Ethernet2, 3
- Wi-Fi Interface: Simultaneous Dual-Band (2.4GHz / 5GHz), Wi-Fi 6, 2x2 MIMO, Wi-Fi WAN and/or AP
