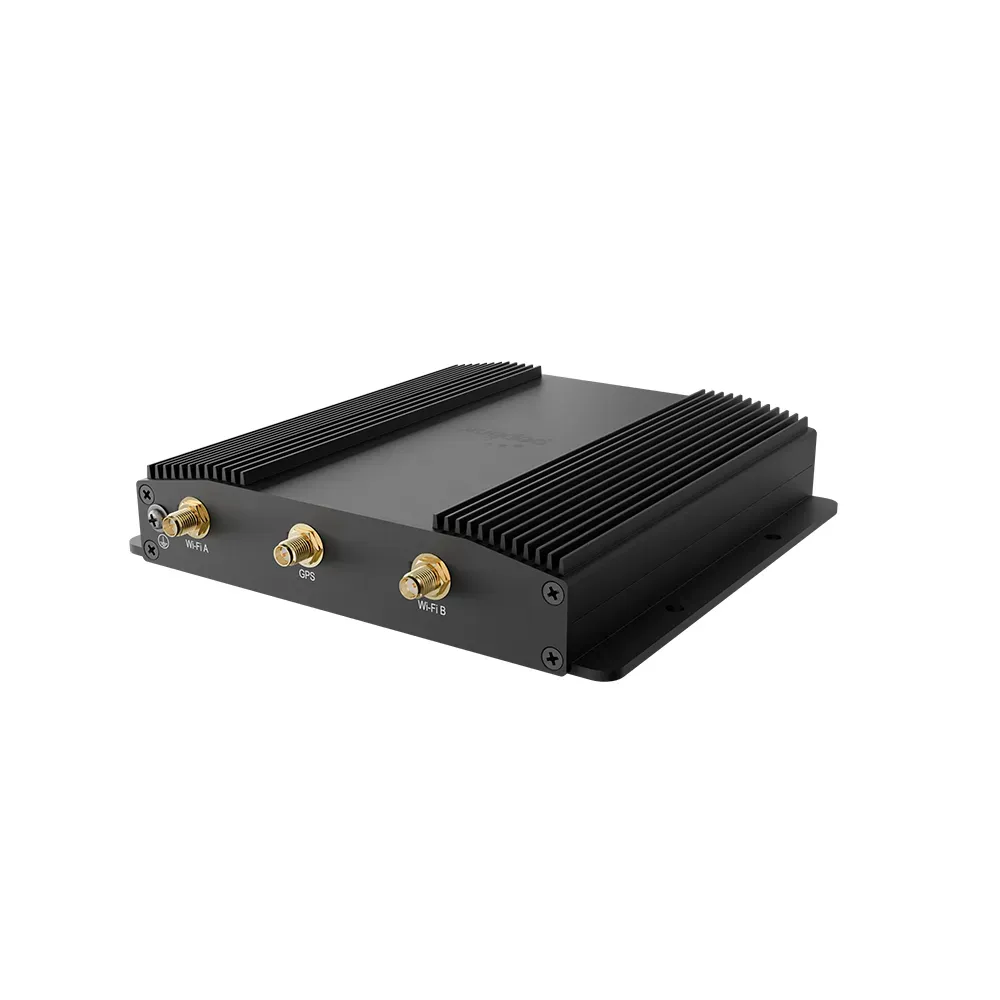

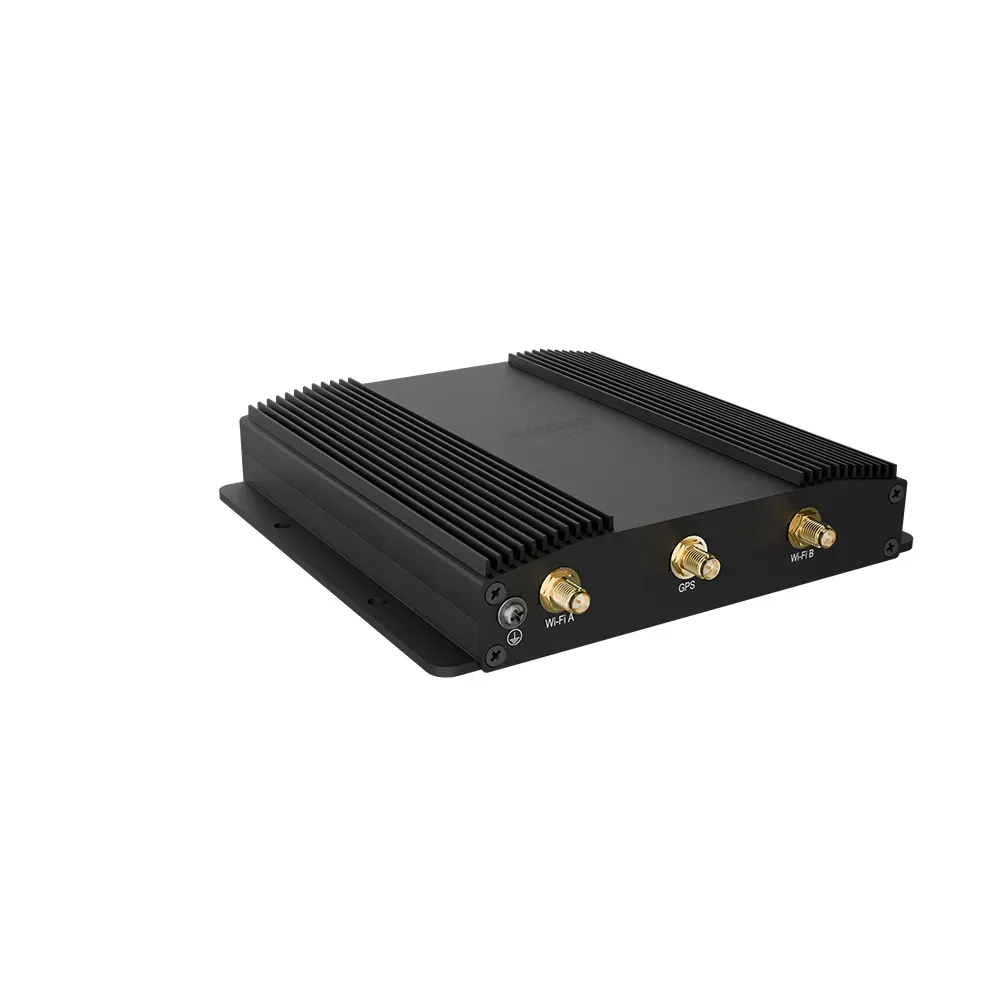

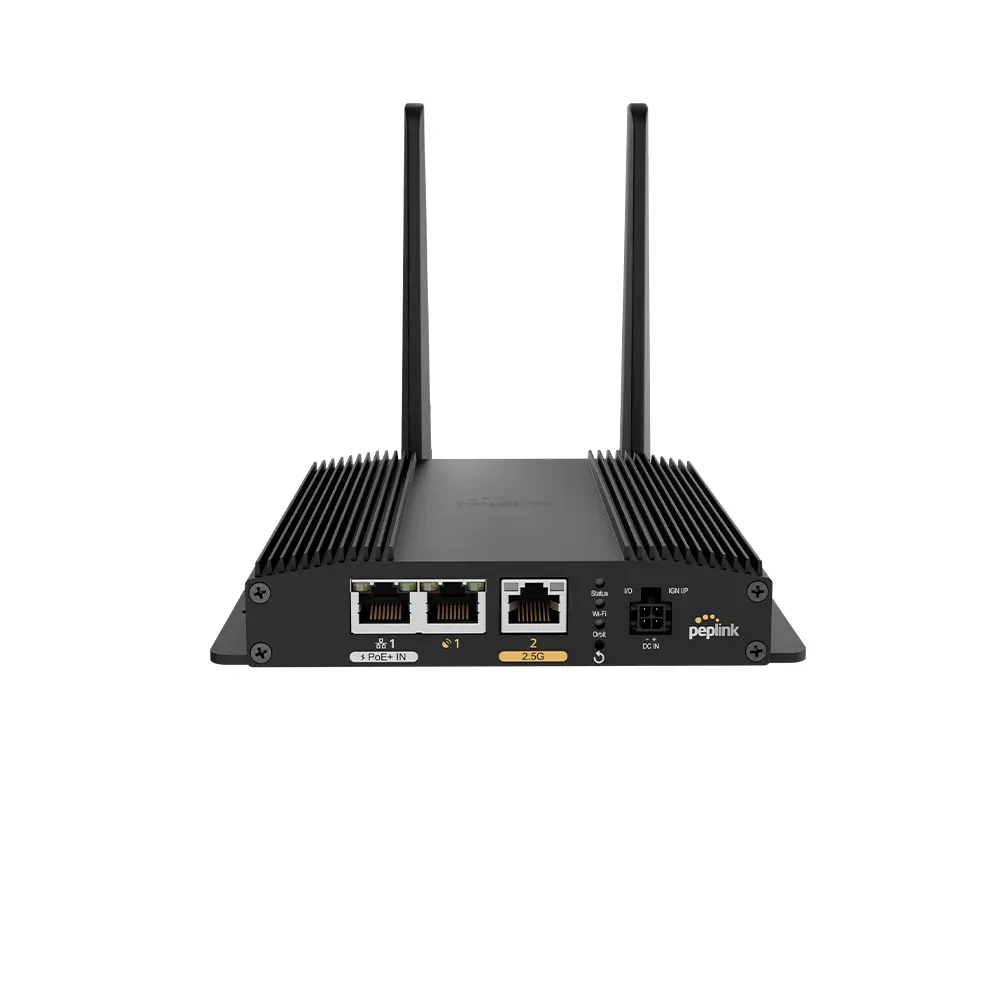

Peplink MAX Orbit 2
Description
Multi-Orbit Network Management
The MAX Orbit 2 provides a single routing platform for multiple satellite connections. Starlink, OneWeb, Iridium, and other supported WAN links can be monitored through Peplink InControl rather than managed through separate network interfaces. This makes it easier to review link status, performance, and usage across a distributed deployment.
Bonding and Connection Reliability
Peplink SpeedFusion can combine supported connections for greater bandwidth or use them for automatic failover when one link becomes unavailable. Hot Failover helps preserve active sessions, Smoothing reduces the effects of packet loss, and SpeedFusion Boost prevents an unstable satellite link from reducing the performance of the entire bonded connection.
Compact Network Platform
The router includes one 2.5 Gigabit Orbit port, one Gigabit Orbit port, and one Gigabit LAN port with 802.3at PoE input. It also provides simultaneous dual-band Wi-Fi 6, integrated GPS, and Docker support with 8 GB of internal storage. The MAX Orbit 2 supports routing throughput up to 1 Gbps and is recommended for networks with up to 150 users.
Built for Remote and Mobile Installations
A rugged enclosure, wide operating-temperature range, integrated GPS, and vibration-tolerant construction make the MAX Orbit 2 suitable for mobile and remote installations. Common applications include vessels, emergency-response vehicles, temporary field offices, energy sites, telecommunications infrastructure, and satellite backup for fixed business networks.
Features
- Two dedicated Orbit ports: 1 × 2.5G and 1 × 1G
- 1 × Gigabit Ethernet LAN port
- 1 Gbps router throughput
- Wi-Fi 6 with simultaneous dual-band operation
- SpeedFusion Hot Failover
- SpeedFusion Bandwidth Bonding
- WAN Smoothing and SpeedFusion Boost
- Integrated GPS
- InControl 2 cloud management
- Docker edge computing with 8 GB of internal storage
- VLAN, firewall, VPN, and QoS controls
- Fanless, vibration-tolerant metal enclosure
- 802.3at PoE input
- Recommended for 1–150 users
Package
Peplink MAX Orbit 2 Includes:
- 1x MAX Orbit 2
- 1x 12V 2A 4-Pin Power Supply
- 2x Dual Band Wi-Fi Antennas
- 1x GPS Active Antenna
Technical Specifications
Power
- Power Consumption: 9W (nominal) / 11W (max.)
- Power Input:
- AC Adapter: AC Input 100V – 240V /
- DC Output 12V
- 4-Pin Micro-Fit Connector: 10V – 30V DC
- Power over Ethernet 802.3at
Dimensions
- 5.78 x 5.08 x 1.15 in (146.8 x 129 x 29.3 mm)
Weight
- 1.21 lbs (550 grams)
Durability
- Operating Temperature: -40° – 149°F / -40° – 65°C
- Humidity: 15% – 95% (non-condensing)
Included
- 1x MAX Orbit 2
- 1x 12V 2A 4-Pin Power Supply
- 2x Dual Band Wi-Fi Antennas
- 1x GPS Active Antenna
Data Network
- Router throughput: 1 Gbps
- Recommended users: 1–150
- VPN throughput without encryption: 400 Mbps
- VPN throughput with 256-bit AES: 200 Mbps
- SpeedFusion VPN peers: 2 standard; 5 with PrimeCare; up to 10 or 20 with additional licensing
- SpeedFusion technologies: Hot Failover, Smoothing, Bandwidth Bonding, SpeedFusion Boost
- Wi-Fi: Wi-Fi 6, 2×2 MU-MIMO
- Wi-Fi bands: Simultaneous 2.4 GHz and 5 GHz
- Wi-Fi modes: WAN and/or access point
- AP and switch controller: Up to 30 devices standard; up to 50 with license
Usage Control Features
- Recommended Users: 1-150
Interfaces

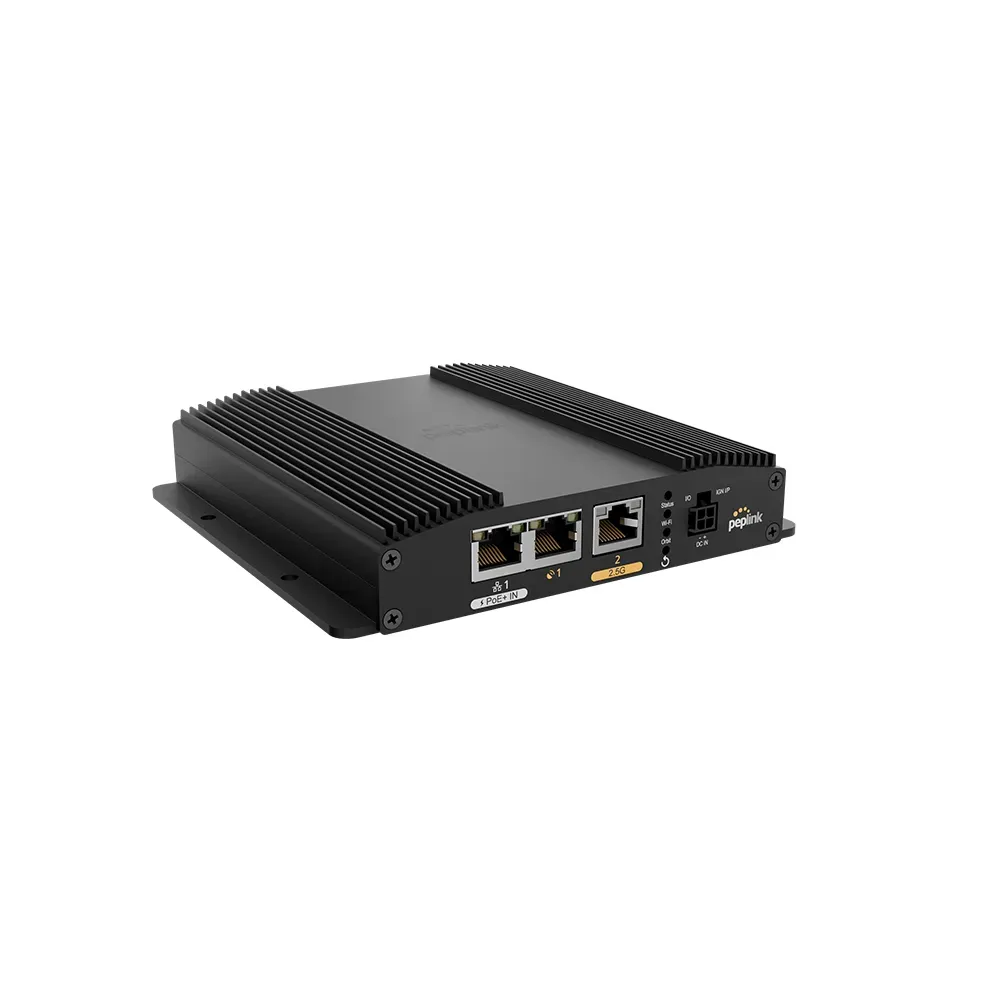

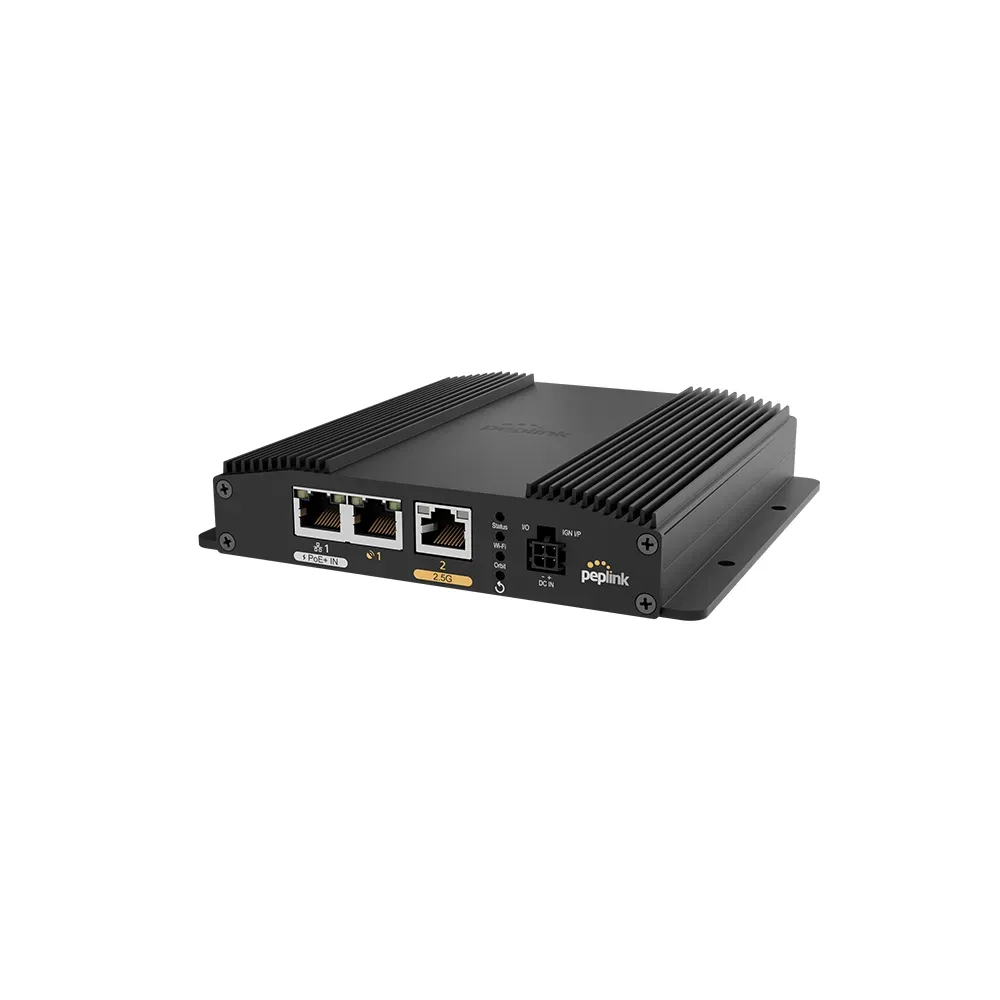

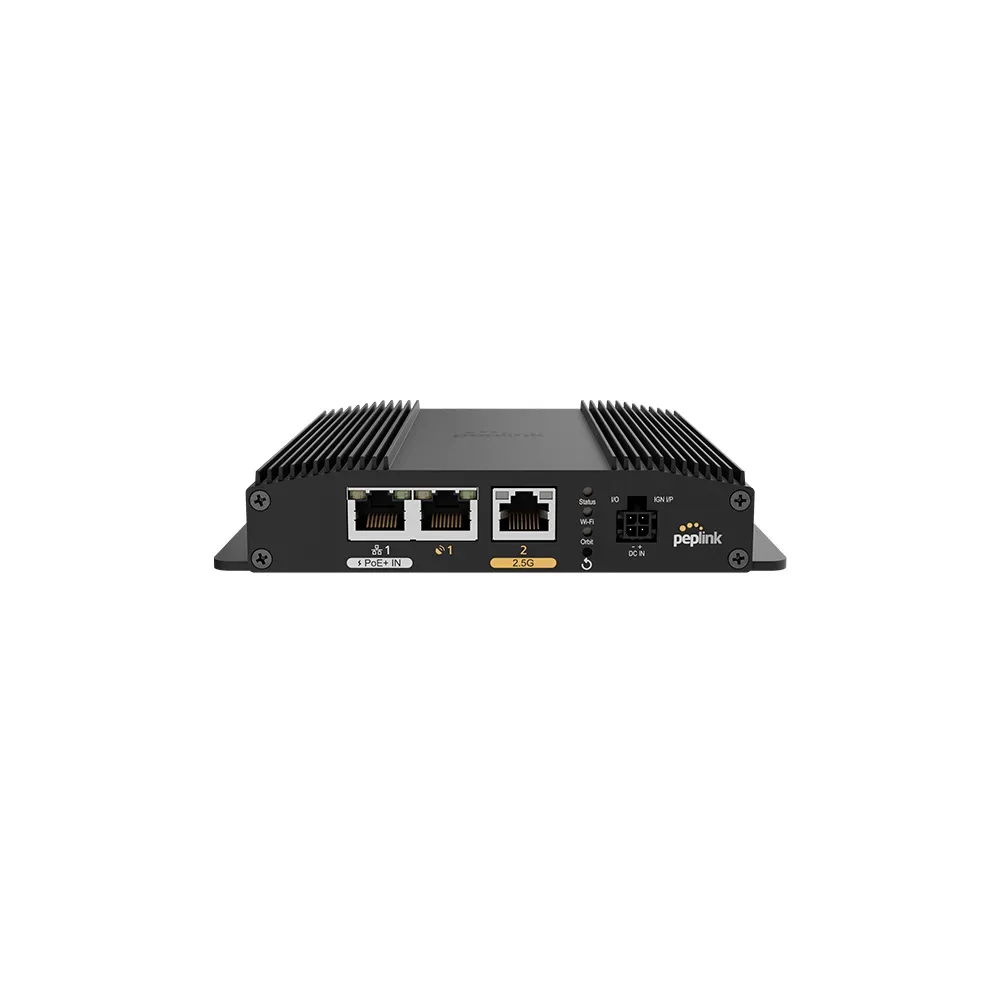

- 1 × 2.5 Gigabit Ethernet Orbit port
- 1 × Gigabit Ethernet Orbit port
- 1 × Gigabit Ethernet LAN port with 802.3at PoE input

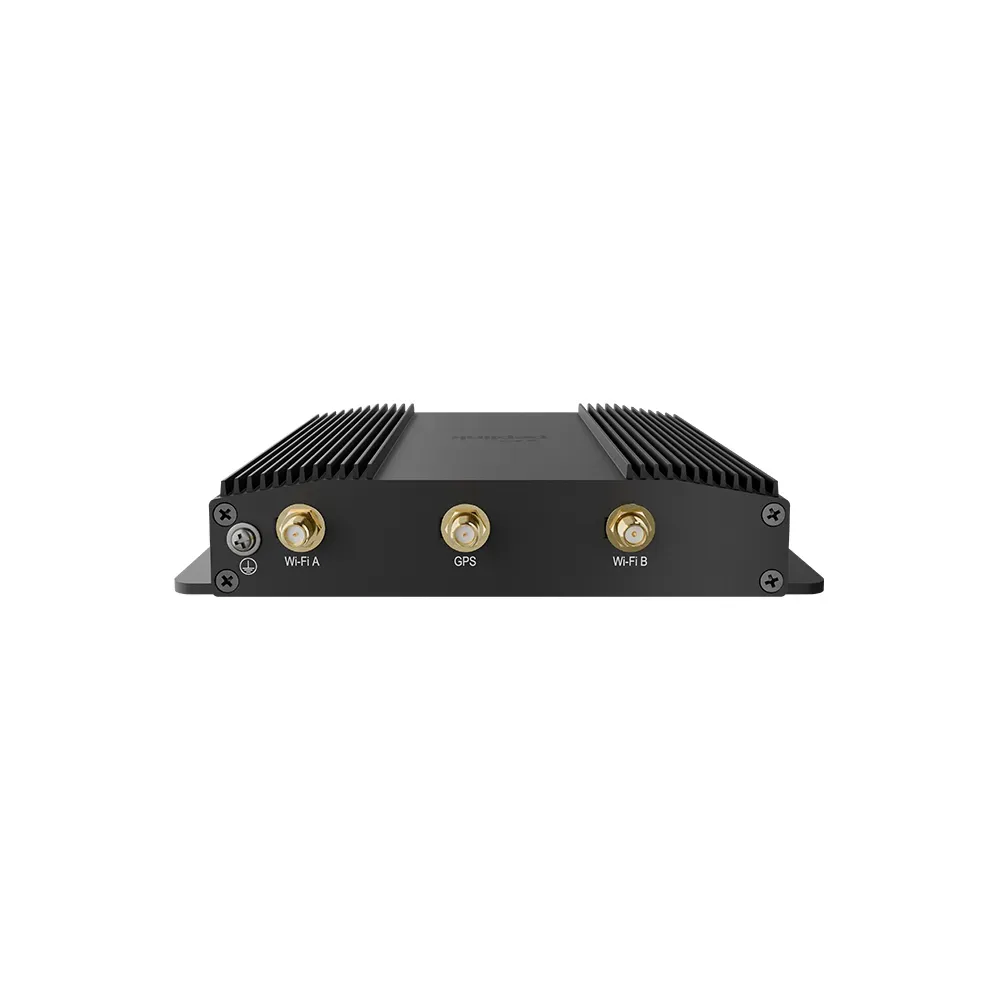

- 2 × RP-SMA Wi-Fi antenna connectors
- 1 × SMA GPS antenna connector
- 1 × 4-pin Micro-Fit connector with GPIO and ignition sensing
