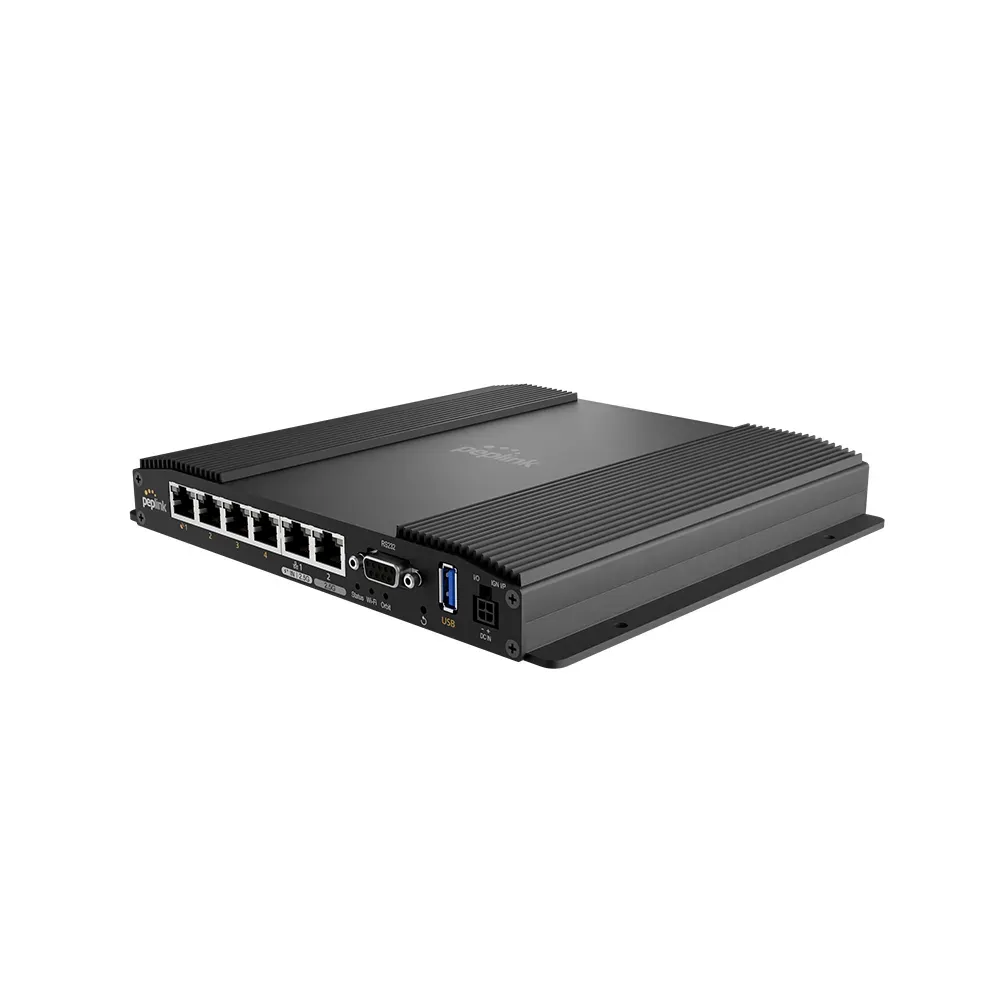

Peplink MAX Orbit 4
Description
Four-Terminal Satellite Connectivity
The MAX Orbit 4 includes four Gigabit Ethernet Orbit ports for connecting multiple satellite terminals. These links can be managed together rather than through separate router interfaces, making the system suitable for installations using multiple terminals or more than one satellite provider.
SpeedFusion Reliability
Peplink SpeedFusion supports Hot Failover, WAN Smoothing, Bandwidth Bonding, and SpeedFusion Boost. These tools can preserve active sessions when a connection fails, combine available bandwidth, and prevent a poorly performing satellite link from reducing the overall performance of the bonded connection.
Flexible Network Interfaces
In addition to its four Orbit ports, the router provides two 2.5 Gigabit Ethernet ports that can be configured as WAN or LAN connections. One supports 802.3at PoE input. A USB 3.0 interface can add external storage or a compatible WAN device, while dual-band Wi-Fi 6 provides local wireless access.
Remote Management and Edge Computing
InControl provides centralized monitoring and management for supported Starlink, OneWeb, Iridium, and Peplink connections. The MAX Orbit 4 also supports Docker applications, with 8 GB of internal storage and additional storage available through its USB port.
Built for Remote and Mobile Deployments
The wide operating-temperature range, integrated GPS, vibration-tolerant construction, and flexible DC power input support fixed and mobile installations outside a conventional office environment. Typical applications include maritime connectivity, field operations, mobile response units, remote infrastructure, and satellite backup for critical business networks.
Features
- Four Gigabit Ethernet Orbit ports
- Two configurable 2.5G WAN/LAN ports
- USB 3.0 interface
- 1 Gbps router throughput
- Wi-Fi 6 with simultaneous dual-band operation
- SpeedFusion Hot Failover
- SpeedFusion Bandwidth Bonding
- WAN Smoothing and SpeedFusion Boost
- Integrated GPS
- InControl 2 cloud management
- Docker support with 8 GB internal storage
- External storage support through USB
- VLAN, firewall, VPN, and QoS controls
- GPIO and ignition sensing
- Recommended for 1–150 users
Package
Peplink MAX Orbit 4 Includes:
- 1x MAX Orbit 4
- 1x 12V DC, 3A 4-Pin Power
- Supply

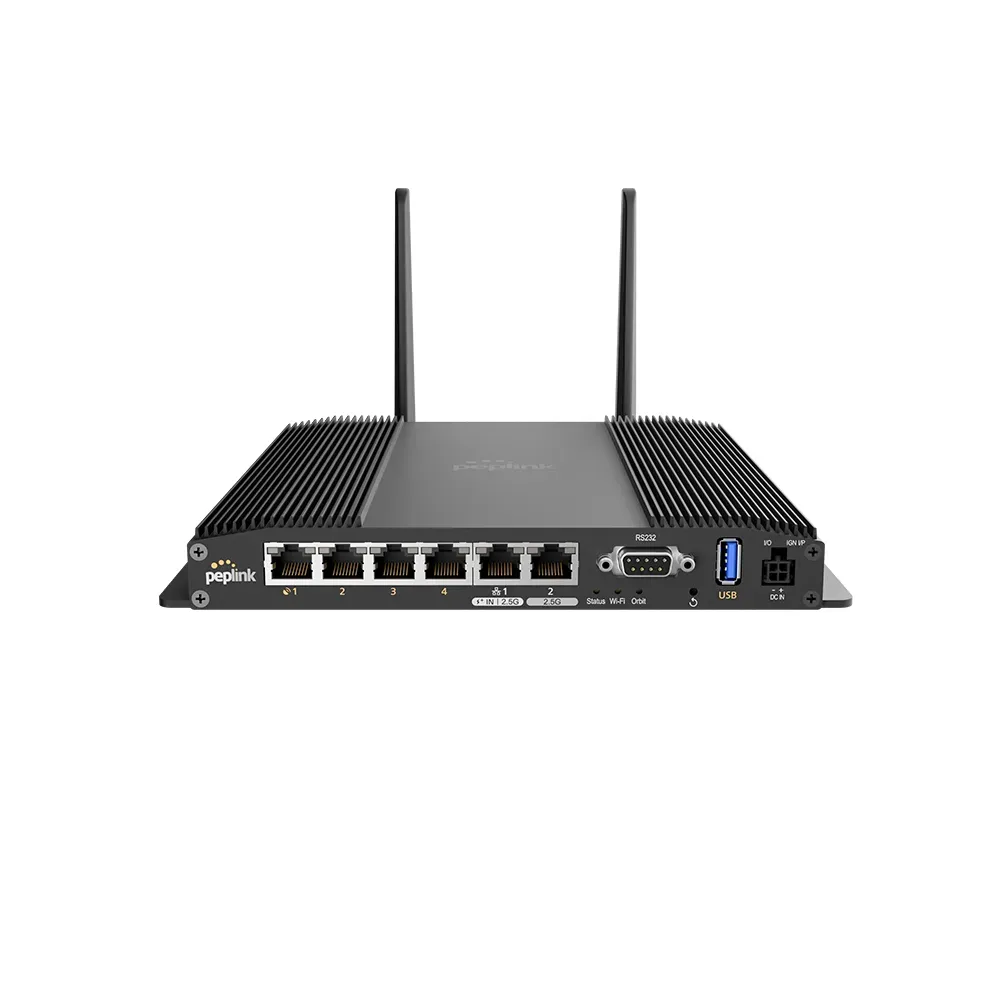

- 2x Dual Band Wi-Fi Antennas
- 1x GPS Antenna
Technical Specifications
Power
- Power Consumption: 11W (nominal) / 14W (max. without USB Output)
- Power Input:
- AC Adapter: AC Input 100V – 240V /
- DC Output 12V
- 4-Pin Micro-Fit Connector: 10V – 30V DC
- Power over Ethernet 802.3at
Dimensions
- 8.58 x 7.68 x 1.61 in (218 x 195 x 29.5 mm)
Weight
- 2.03lbs (924 grams)
Durability
- Operating Temperature: -40° – 149°F / -40° – 65°C
- Humidity: 15% – 95% (non-condensing)
Included
- 1x MAX Orbit 4
- 1x 12V DC, 3A 4-Pin Power
- Supply
- 2x Dual Band Wi-Fi Antennas
- 1x GPS Antenna
Data Network
- Router throughput: 1 Gbps
- Recommended users: 1–150
- VPN throughput without encryption: 400 Mbps
- VPN throughput with 256-bit AES: 200 Mbps
- SpeedFusion VPN peers: 2 standard; 5 with PrimeCare; up to 10 or 20 with additional licensing
- SpeedFusion technologies: Hot Failover, Smoothing, Bandwidth Bonding, SpeedFusion Boost
- Wi-Fi: Wi-Fi 6, 2×2 MU-MIMO
- Wi-Fi bands: Simultaneous 2.4 GHz and 5 GHz
- Wi-Fi modes: WAN and/or access point
- AP and switch controller: Up to 30 devices standard; up to 50 with license
Usage Control Features
- Recommended Users: 1-150

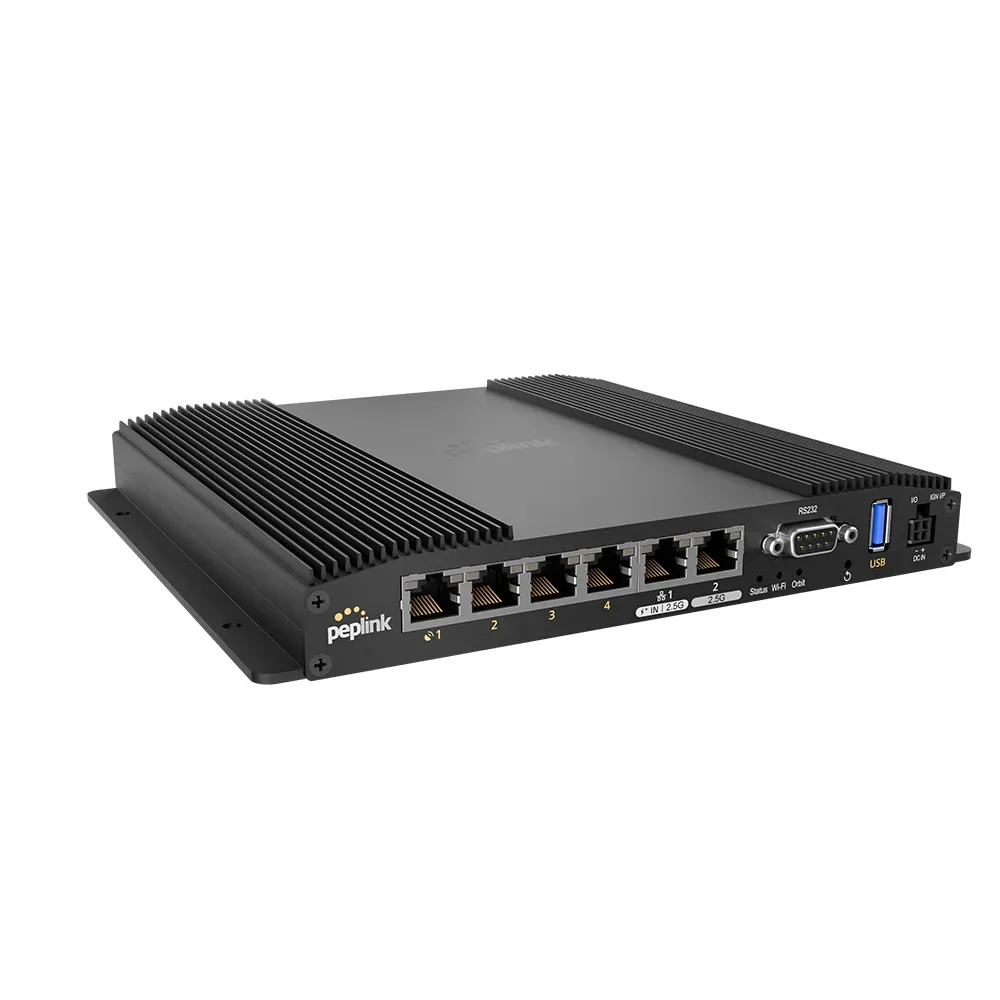

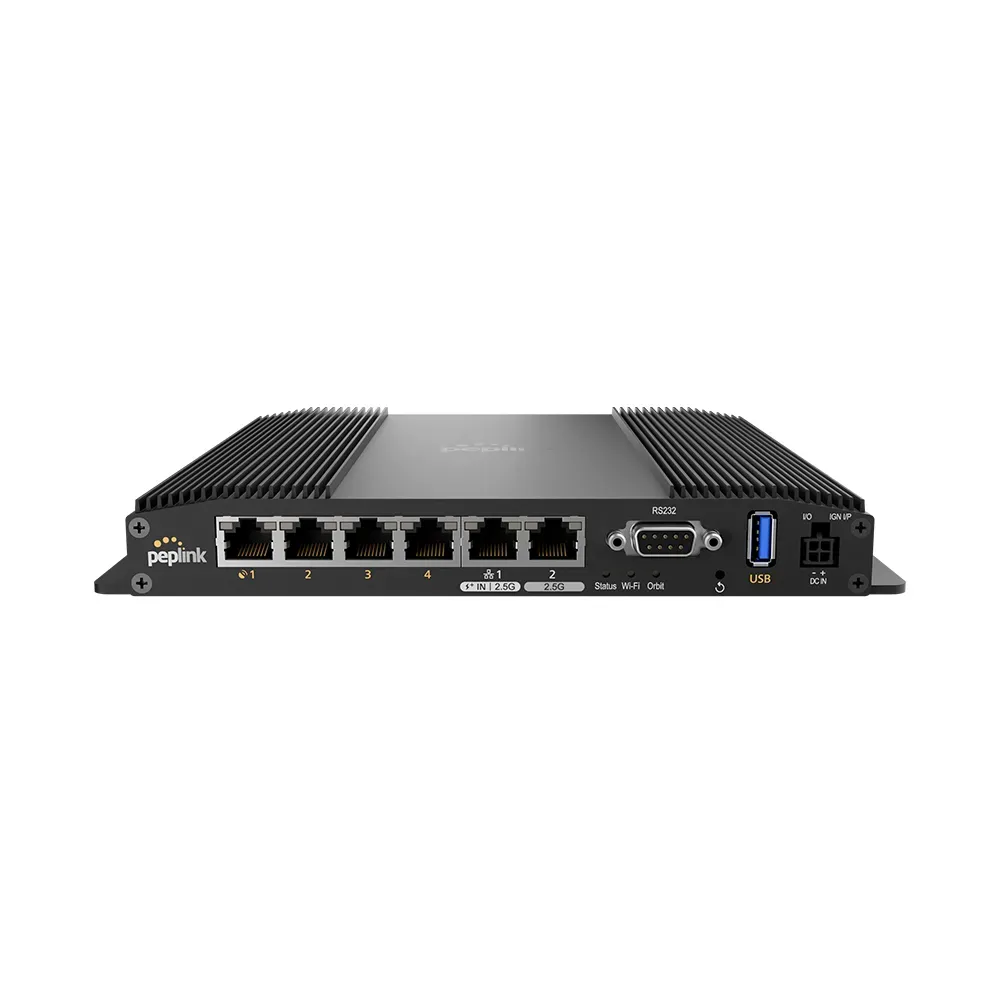

Interfaces
- 4 × Gigabit Ethernet Orbit ports
- 2 × 2.5 Gigabit Ethernet WAN/LAN ports
- 1 × 802.3at PoE input through 2.5 Gigabit Ethernet
- 1 × USB 3.0 interface

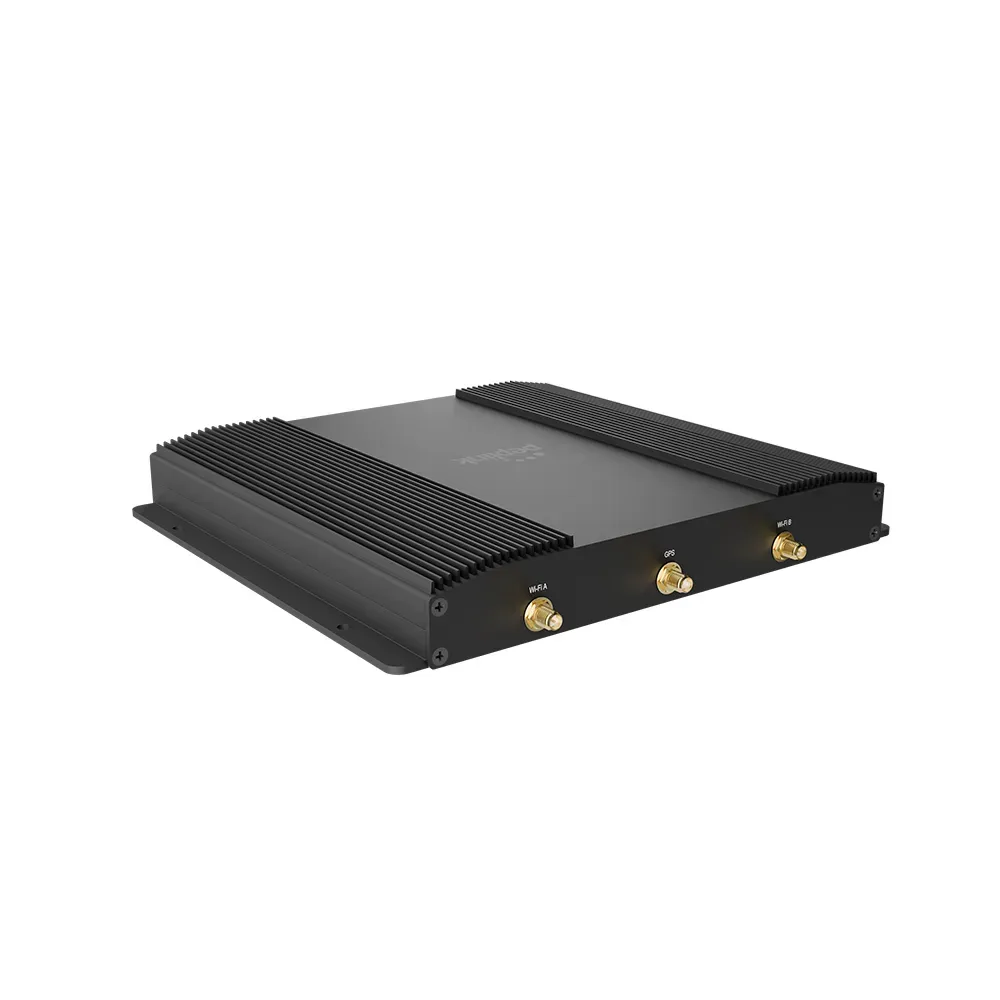

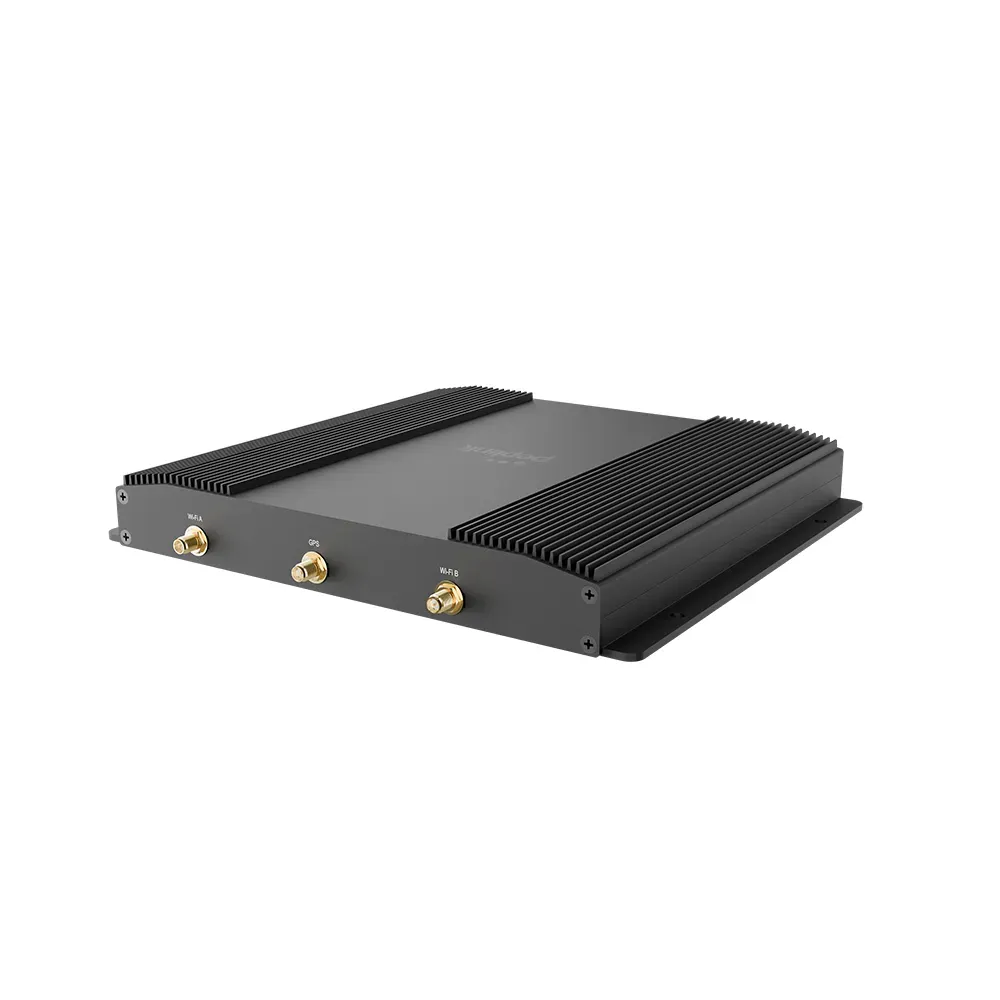

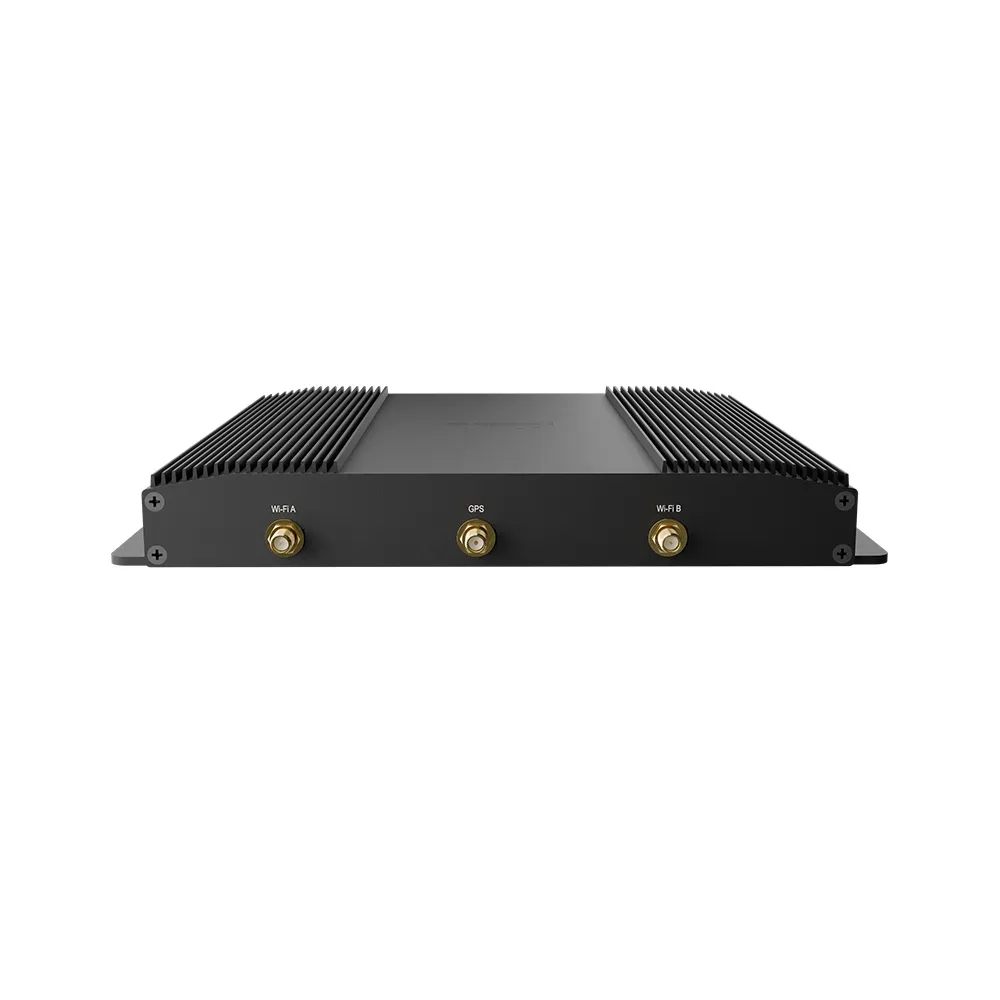

- 2 × RP-SMA Wi-Fi antenna connectors
- 1 × SMA GPS antenna connector
- 1 × 4-pin Micro-Fit connector with GPIO and ignition sensing
