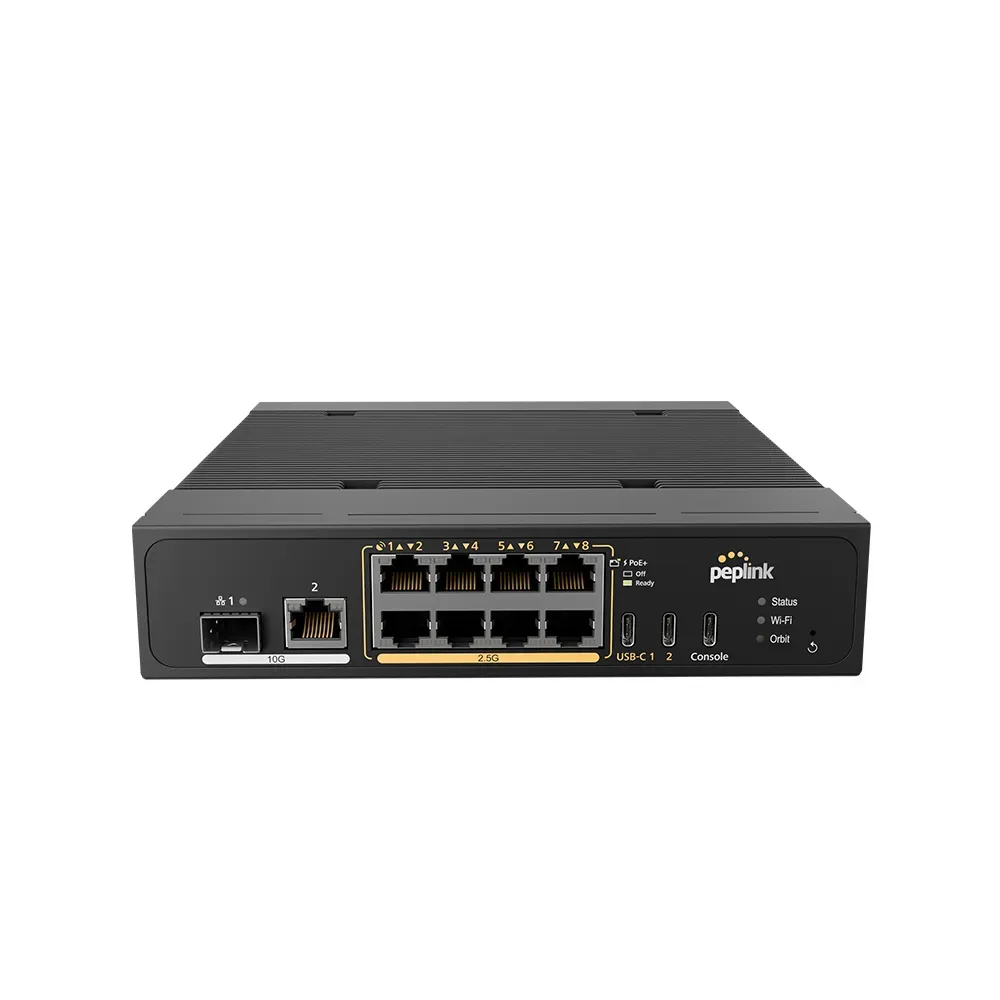

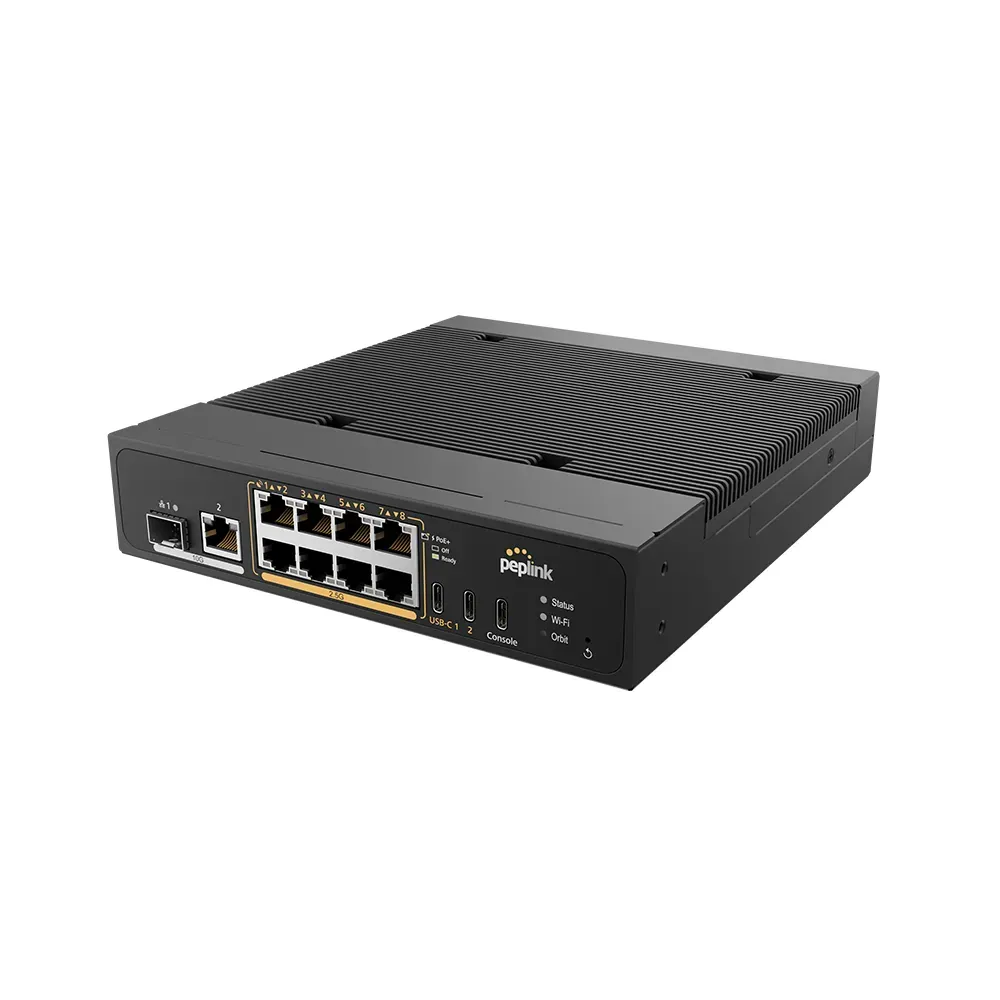

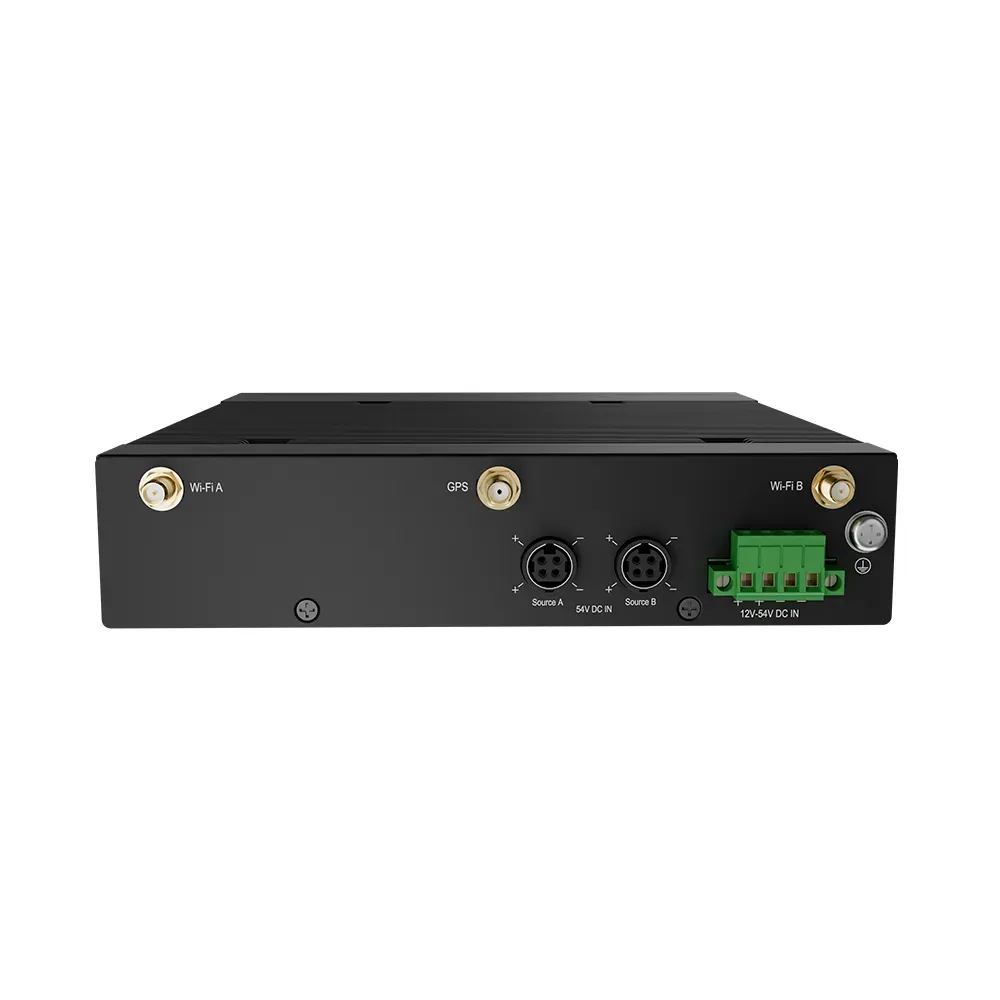

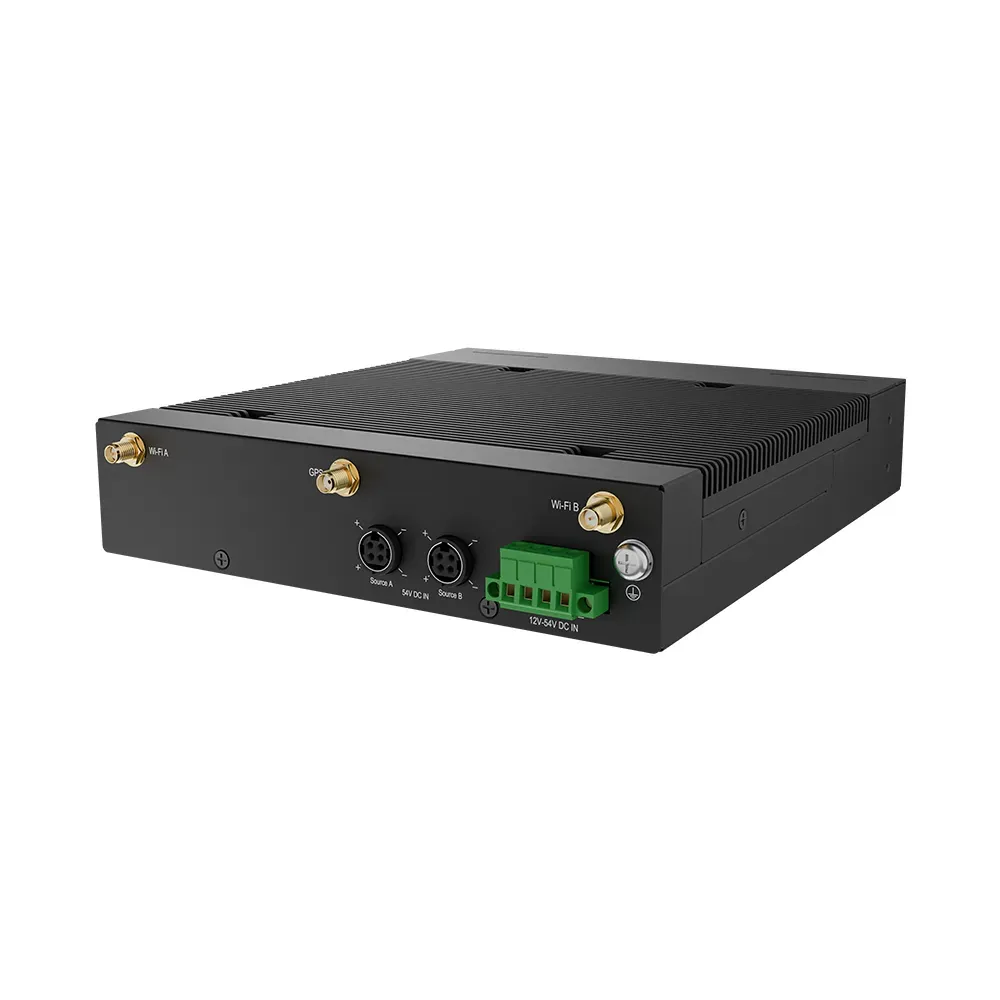

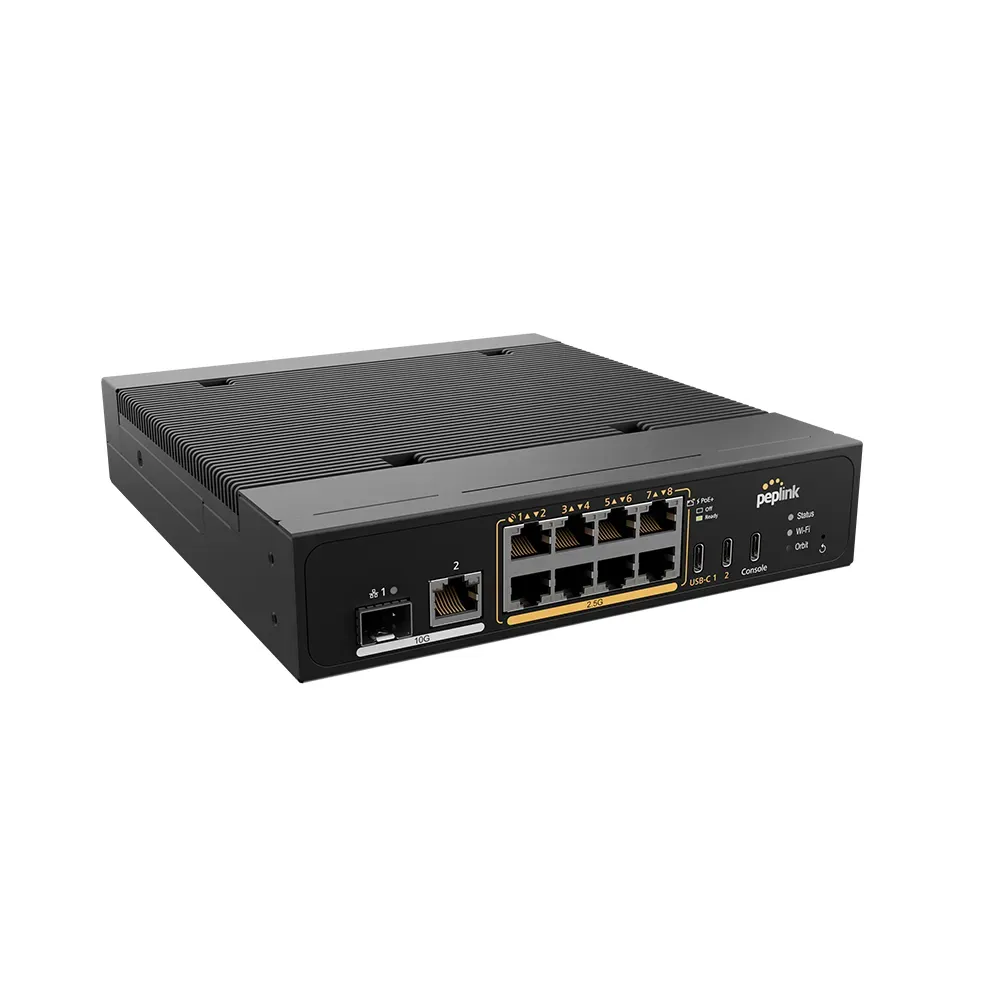

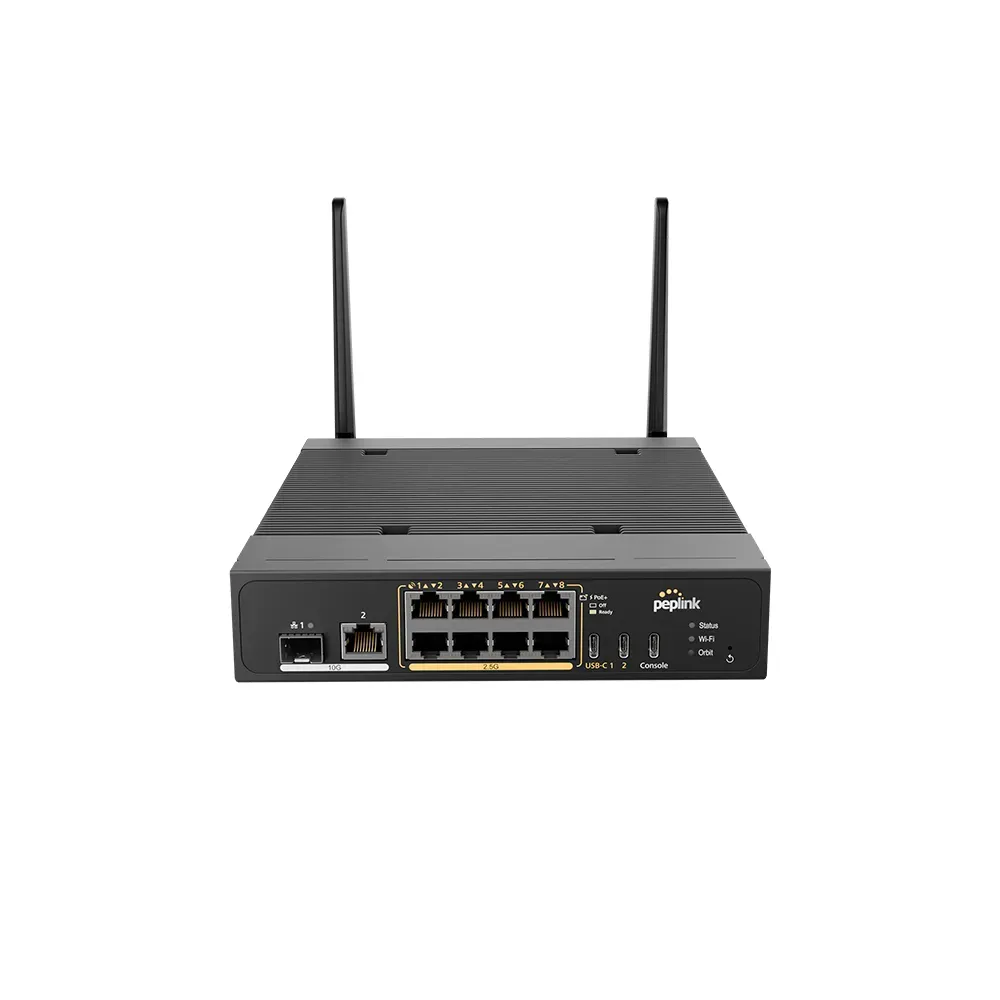

Peplink MAX Orbit 8
Description
Eight-Terminal Satellite Connectivity
The MAX Orbit 8 provides eight 2.5 Gigabit Orbit ports for connecting multiple satellite terminals. This capacity supports larger multi-terminal installations that need greater aggregate bandwidth, redundancy across providers, or separate links for different operational requirements.
SpeedFusion Reliability
Peplink SpeedFusion provides Hot Failover, Smoothing, Bandwidth Bonding, and SpeedFusion Boost. These technologies can preserve active sessions when a connection fails, reduce the effects of packet loss, combine available bandwidth, and prevent an unstable satellite link from lowering the performance of the overall bonded connection.
High-Capacity Network Interfaces
The router includes one 10 Gigabit Ethernet port and one 10 Gigabit SFP+ port, both configurable for WAN or LAN use. Two USB-C WAN interfaces provide additional connection options, while simultaneous dual-band Wi-Fi 7 supports local wireless access.
PoE for Connected Terminals
All eight Orbit ports support 802.3at PoE+ output, allowing compatible satellite terminals or network devices to receive data and power through the same Ethernet cable. The router provides a total PoE power budget of 240W when supplied with the required 50V to 54V DC input.
Centralized Management and Edge Computing
InControl provides centralized monitoring for supported Starlink, OneWeb, Iridium, and Peplink connections. The MAX Orbit 8 also supports Docker applications, with 8 GB of internal storage and external storage support through USB.
Built for Larger Remote Deployments
The MAX Orbit 8 is designed for environments outside a conventional server room. Its wide operating-temperature range, integrated GPS, rack-mount hardware, and vibration-tolerant construction support maritime, mobile, industrial, and remote infrastructure deployments.
Features
- Eight 2.5G Orbit ports
- 4 Gbps router throughput
- 10G multi-gig Ethernet WAN/LAN port
- 10G SFP+ WAN/LAN port
- Two USB-C WAN interfaces
- Wi-Fi 7 with simultaneous dual-band operation
- Up to eight 802.3at PoE+ outputs
- 240W total PoE power budget
- SpeedFusion Hot Failover
- SpeedFusion Bandwidth Bonding
- WAN Smoothing and SpeedFusion Boost
- Integrated GPS
- InControl 2 cloud management
- Docker support with internal and external storage
- Recommended for 50–500 users
Package
Peplink MAX Orbit 8 Includes:
- 1x MAX Orbit 8
- 1x 54V 5.19A Power Supply
- 2x Dual Band Wi-Fi Antennas
- 1x GPS Active Antenna
- 1x Ear Rack Mount Kit with screws
- 1x Rubber Foot Pad Set
Technical Specifications
Power
- Power Consumption: 25W (nominal) / 50W (max. without PoE and USB-C Output)
- Power Input:
- 2x Power DIN: 54V DC
- AC Adapter: AC Input 100V – 240V / DC
- Output 54V
- Terminal Block: 12V – 54V DC
- Power Output: Up to 8x 802.3at PoE+ 5
- Total PoE Power Budget: 240W
Dimensions
- 7.32 x 8.05 x 1.61 in (186 x 204.5 x 41 mm)
Weight
- 7.58 lbs (3.44 kg)
Durability
- Operating Temperature: -40° – 149°F / -40° – 65°C
- Humidity: 15% – 95% (non-condensing)
Included
- 1x MAX Orbit 8
- 1x 54V 5.19A Power Supply
- 2x Dual Band Wi-Fi Antennas
- 1x GPS Active Antenna
- 1x Ear Rack Mount Kit with screws
- 1x Rubber Foot Pad Set
Additional
- Internal storage: 8 GB
- External storage: Supported through USB
- Edge computing: Docker support
Data Network
- Router throughput: 4 Gbps
- Recommended users: 50–500
- VPN throughput without encryption: 1 Gbps
- VPN throughput with 256-bit AES: 1 Gbps
- SpeedFusion VPN peers: 2 standard; 30 with PrimeCare
- SpeedFusion technologies: Hot Failover, Smoothing, Bandwidth Bonding, SpeedFusion Boost
- Wi-Fi: Wi-Fi 7, 2×2 MIMO
- Wi-Fi bands: Simultaneous 2.4 GHz and 5 GHz
- Wi-Fi modes: WAN and/or access point
- AP and switch controller: Up to 30 devices standard; up to 50 with license
Usage Control Features
- Recommended Users: 50-500
Interfaces
- 8 × 2.5 Gigabit Ethernet Orbit ports with 802.3at PoE+ output
- 1 × 10 Gigabit Ethernet WAN/LAN port
- 1 × 10 Gigabit SFP+ WAN/LAN port
- 2 × USB-C WAN interfaces
- 1 × console port
- 2 × RP-SMA Wi-Fi antenna connectors
- 1 × SMA GPS antenna connector
- 2 × 54V DC power connectors
- 1 × 12–54V DC terminal block
