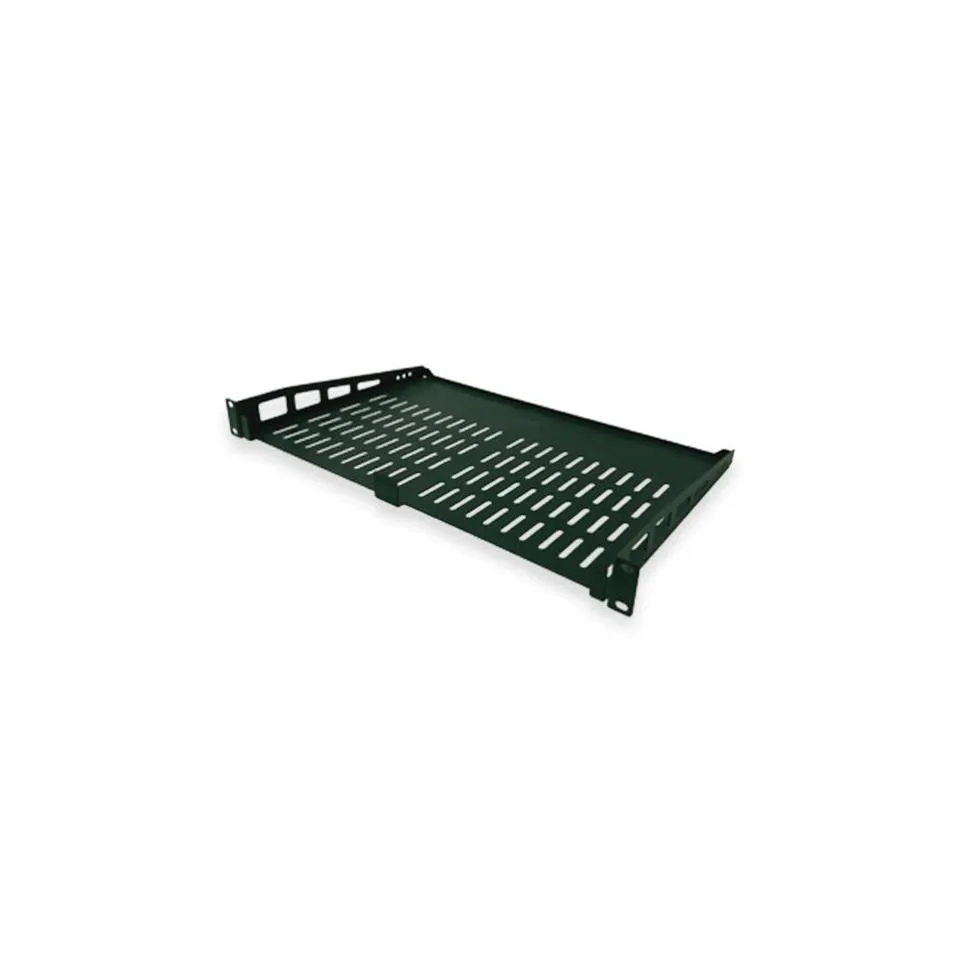

Peplink Metal Rack
Description
Standard 19-Inch Rack Installation
The ACW-741 fits a standard 19-inch rack and occupies 1U of vertical space. It provides a cleaner alternative to placing compact Peplink equipment loose on a shelf or inside a network cabinet.
Dual Half-Rack Layout
The rack includes two half-width mounting decks. This layout supports compatible Peplink equipment while keeping the front connections accessible for power, network, and service access.
SD-PMU Compatibility
The ACW-741 is designed for the Peplink SD-PMU and SD-PMU-LTE. Peplink also lists the rack as a mounting accessory for the SD-PMU, supplied with mounting ears and screws.
For installations involving a compatible Peplink 16-Port Rugged Switch, the separately available ACW-743 T-Mount works with the ACW-741 rack.
Metal Construction
The shelf is made from painted metal with a black finish. Its vented base helps maintain airflow around the installed equipment while providing a rigid mounting surface.
Technical Specifications
Dimensions
- Rack width: 48.2 cm / 19 in.
- Depth: 30.0 cm / 11.8 in.
- Rack height: 4.44 cm / 1.75 in.
- Rack size: 1U
- Mounting layout: 2 half-rack decks
Weight
- 1.0 kg / 2.2 lbs.
Durability
- Construction: Painted metal
- Finish: Black
- Installation type: Standard 19-inch rack mounting
Included
- Peplink ACW-741 Metal Rack
- 6 mounting screws
Additional
- Compatible equipment: Peplink SD-PMU and SD-PMU-LTE
- Optional switch mounting accessory: Peplink ACW-743 T-Mount
- Manufacturer part number: ACW-741
