Description
Advanced Connectivity for On-the-Move Applications

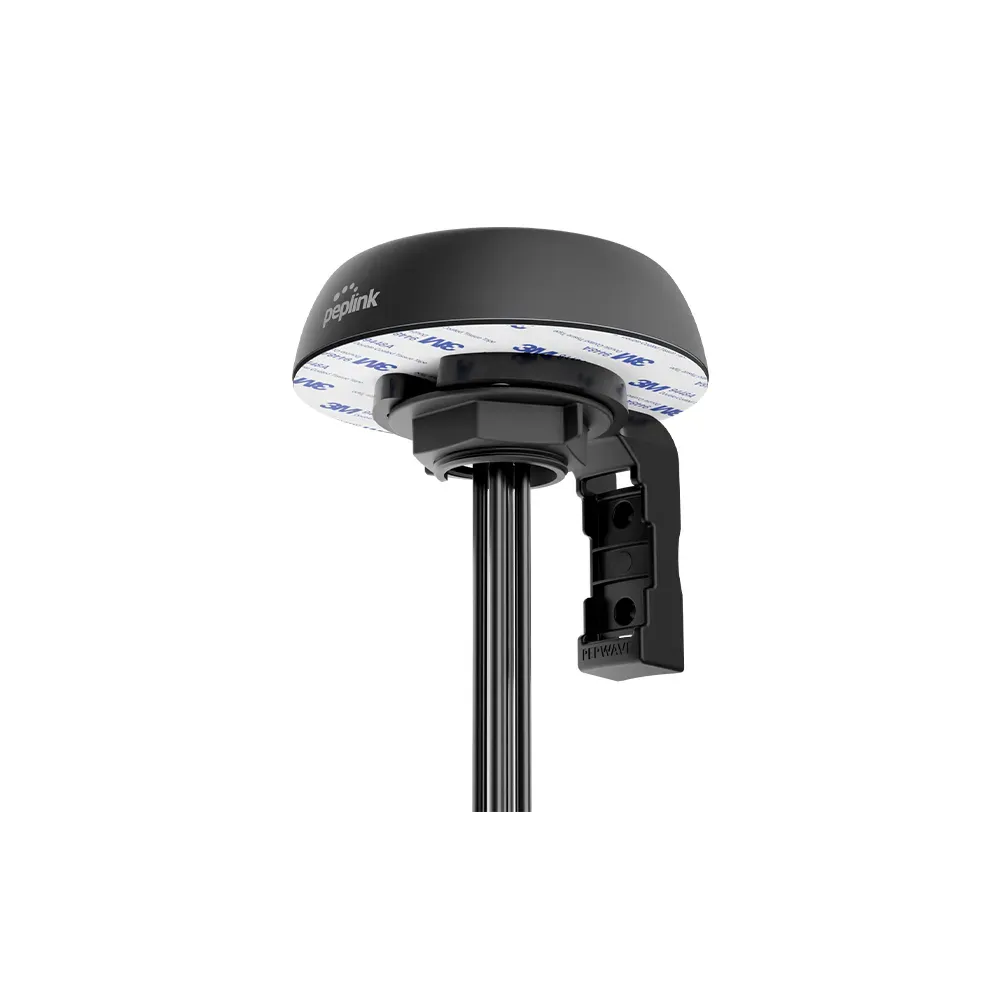

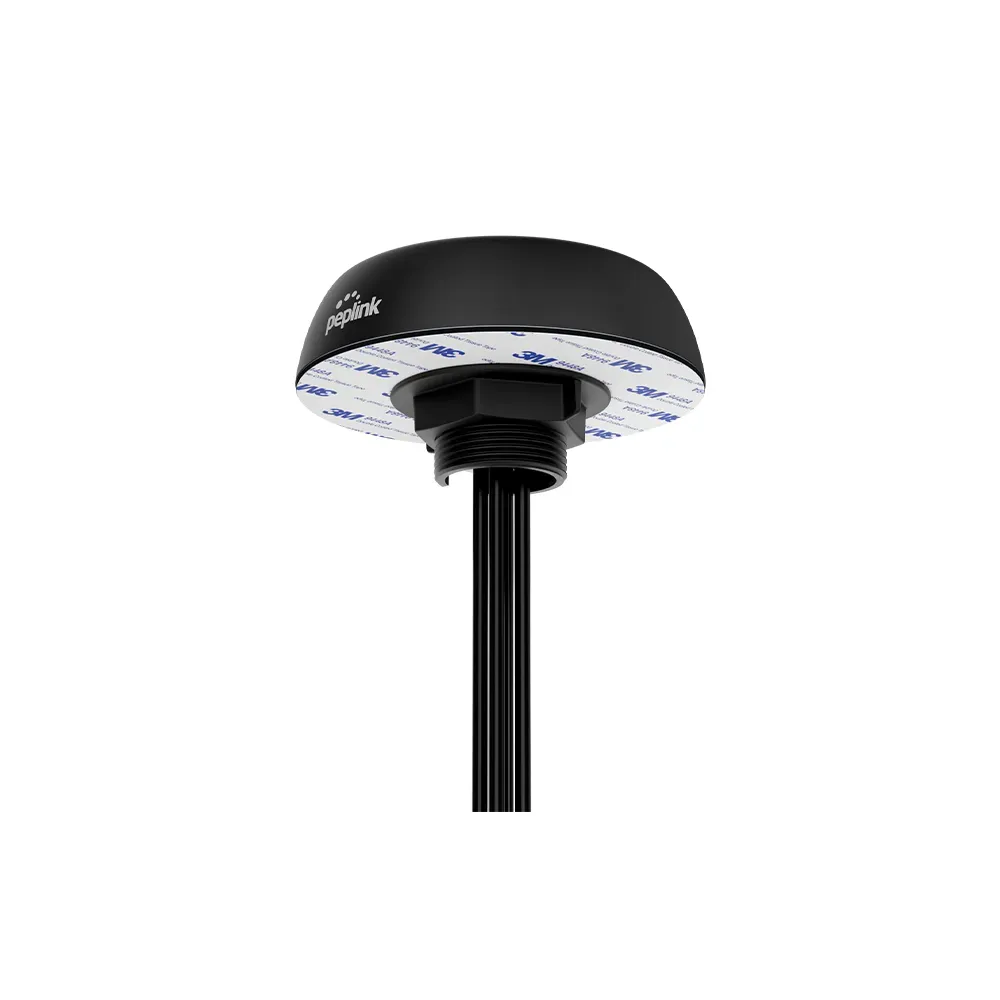

The Peplink Mobility 40G represents the pinnacle of mobile antenna technology, designed specifically for land-based applications requiring robust and reliable cellular connectivity. This black variant, coded ANT-MB-40G-S-B-6, is a powerhouse of performance, featuring a 4x4 MIMO 5G ready cellular antenna system complemented by a high-gain GPS receiver. Covering a wide range of cellular frequencies from 600 to 6000 MHz, including B71 support, the Mobility 40G is built to ensure consistent, high-speed connectivity across a broad spectrum of global cellular networks.
Designed for Durability and Versatility
With an IP68 rating, the Mobility 40G's housing is both durable and UV-stable, making it suitable for various challenging environments. The antenna's sleek black design is not only aesthetically pleasing but also versatile enough to blend into different vehicle types and environments. Whether it's public safety vehicles, mobile healthcare units, or transportation fleets, the Mobility 40G ensures uninterrupted connectivity crucial for mission-critical operations.
Simplified Installation with Maximum Flexibility
Ease of installation is a hallmark of the Mobility 40G, featuring multiple cable length options and connector types (SMA, QMA, or N-type) to accommodate various installation scenarios. The antenna supports panel, wall, and pole mounting, providing the flexibility needed for mobile and stationary setups alike. Its compact dimensions and included mounting accessories ensure a hassle-free installation process, making it an ideal choice for a wide range of mobile applications.
Technical Specifications
Power
- GPS operating voltage: 3.3V DC
- GPS power consumption: 8.5 mA ±2.5 mA
- Cellular feed power handling: 10W
Dimensions
- Diameter: 13.0 cm / 5.12 in.
- Height: 3.6 cm / 1.42 in., excluding mounting spigot
- Cable length: 2 m / 6.5 ft.
- Mounting-hole diameter: 43 mm / 1.69 in.
- Maximum panel thickness: 15 mm / 0.59 in.
Durability
- Radome material: UV-stable PC+ABS
- Water and dust resistance: IP68
- Operating temperature: -40°C to 80°C / -40°F to 176°F
- Storage temperature: -40°C to 80°C / -40°F to 176°F
- Wind survival: 220 km/h / 137 mph
- UV resistance: UL 746C, F1
- Salt-spray testing: MIL-STD-810F / ASTM B117
- Cable flammability: UL 758 VW-1
- Enclosure flammability: UL 94 HB
- Compliance: RoHS, REACH, and WEEE
Included
- Peplink Mobility Antenna 40G – Black
- Integrated 2 m antenna cables
- Mounting bracket
- Double-sided 3M adhesive mounting pad
Additional
- Color: Black
- Mounting options: Panel, wall, or pole
- Ground plane required: No
- Manufacturer part number: ANT-MB-40G-S-B-6
Data Network
- Antenna elements: 4 × LTE/5G, 1 × GPS
- Cellular configuration: 4×4 MIMO
- Cellular frequency range: 617–6000 MHz
- Cellular gain: 0.3 dBi at 617–960 MHz, 5.1 dBi at 1710–2700 MHz, 5.8 dBi at 3400–4200 MHz, 7.0 dBi at 4900–6000 MHz
- Supported LTE bands: B1–B86, excluding B31, B72, B73, B87, and B88
- Supported 5G bands: n1–n99
- Cellular impedance: 50 ohms
- Cellular polarization: Linear
- Cellular VSWR: Less than 2.5 across 85% of the band
- GPS frequency range: 1561–1602 MHz
- GPS peak gain: 0.5 dBi at 1575 MHz; 1.6 dBi at 1602 MHz
- GPS LNA gain: 28 dB ±3 dB
- GPS noise figure: 1.5 dB maximum at 3.3V
Interfaces
- Cellular connectors: 4 × SMA male
- GPS connector: 1 × SMA male
- Cellular cable type: CFD-200
- GPS cable type: RG-174
