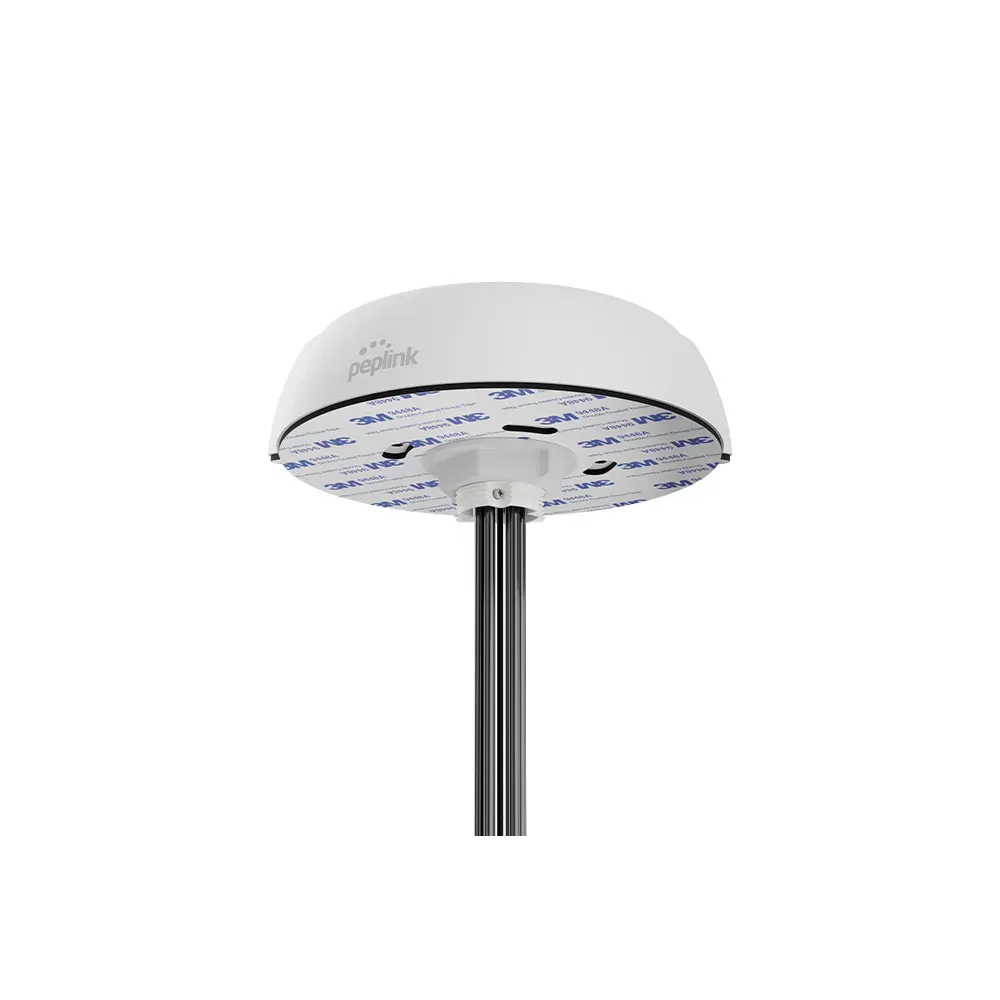

Premier Mobile Connectivity: MOBILITY 42G Extended-Range Antenna
Peplink Mobility 42G w/ 16ft Cable is an advanced 7-in-1 antenna system designed for vehicles and mobile units demanding high-level cellular, Wi-Fi, and GPS connectivity over extended ranges. This white version features an impressive 16 ft (4.8m) cable, along with 4xLTE/5G, 2x Wi-Fi, and 1xGPS capabilities, covering a wide frequency range of 600 to 6000MHz. Ideal for use in public safety, mobile healthcare, and transportation, the Mobility 42G provides exceptional performance with up to 8.2 dBi LTE gain, C-Band support for increased throughput, and an IP68 rating for ultimate durability against environmental elements.
Extended Range with a Sleek Design
The Mobility 42G's extended cable length offers unparalleled flexibility in mounting and positioning, ensuring optimal signal reception even in complex installation scenarios. Encased in a durable, IP68-rated, white housing, this antenna is both aesthetically pleasing and capable of withstanding harsh environmental conditions. Its omnidirectional 4x4 MIMO design enhances connectivity, making it a vital component for leveraging 5G networks and ensuring future-proof operation across diverse mobile applications.
Flexible Installation for Comprehensive Coverage
Designed for ease of installation, the ANT-MB-42G-S-W-16 accommodates various mounting options, including panel, wall, or pole, to meet specific operational needs. The ultra-wide bandwidth supports comprehensive LTE and 5G connectivity, while the dual-band Wi-Fi antennas extend local coverage. With exceptional performance in the crucial 3.3 and 4.2 GHz C-Band frequency ranges, the Mobility 42G is equipped to deliver significant throughput speed boosts, making it an indispensable solution for any sophisticated mobile connectivity requirement.
Technical Specifications
Power
- Cellular and Wi-Fi feed power handling: 10 W
- GPS operating voltage: 3.3 V
- GPS power consumption: 8.5 ±2.5 mA at 3.3 V
Dimensions
- Diameter: 20.8 cm / 8.19 in.
- Height: 5.8 cm / 2.28 in., excluding mounting spigot

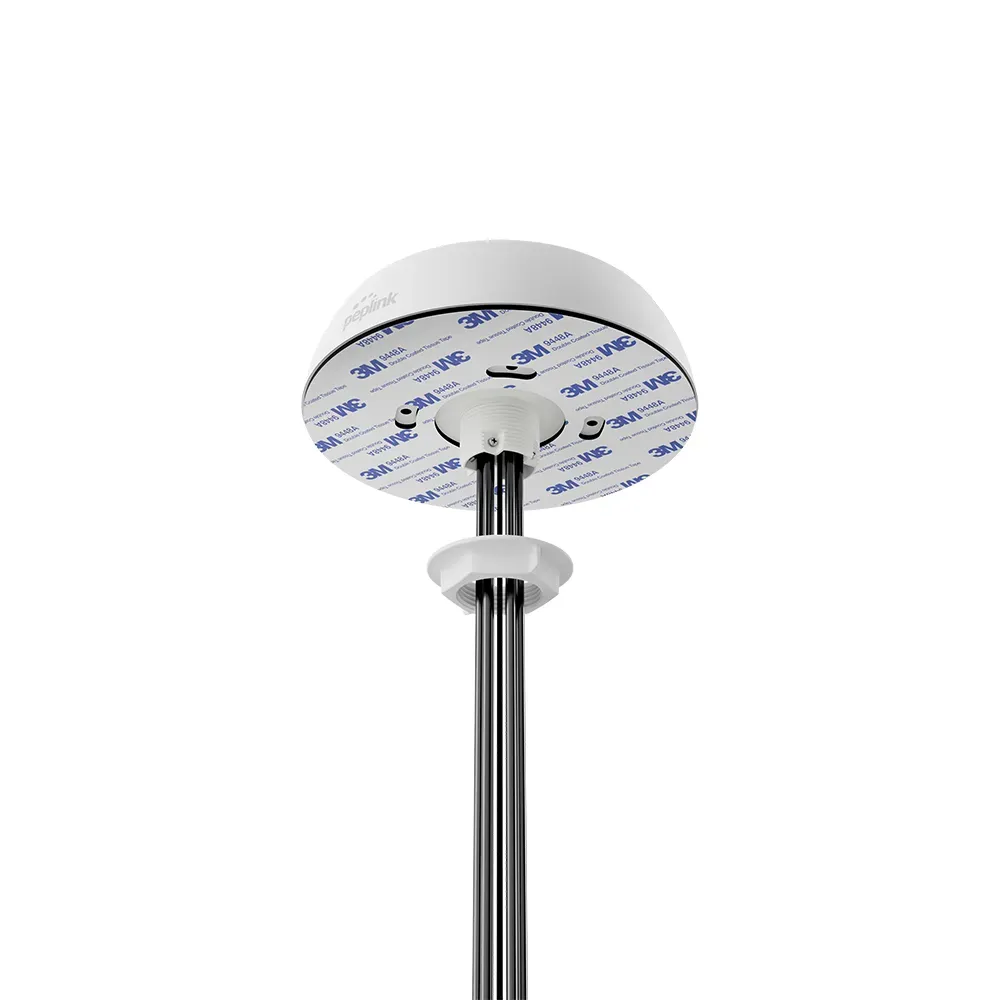

- Mounting hole diameter: 4.3 cm / 1 11/16 in.
- Maximum panel thickness: 1.5 cm / 19/32 in.
- Cable length: 4.8 m / 16 ft.
- Packaged dimensions: 23.1 × 21.6 × 15.6 cm / 9.09 × 8.50 × 6.14 in.
Durability
- Enclosure rating: IP68
- Radome material: UV-stable polycarbonate
- Cable jacket: UV-resistant PVC
- Operating temperature: -40°C to 80°C / -40°F to 176°F
- Storage temperature: -40°C to 80°C / -40°F to 176°F
- Wind survivability: 220 km/h / 137 mph
- Enclosure flammability rating: UL 94 HB
- Cable flammability rating: UL 758 VW-1
- UV resistance: UL 746C, F1 long-term exposure
- Salt-spray testing: MIL-STD-810F / ASTM B117
- Compliance: RoHS, REACH, and WEEE
Additional
- Antenna configuration: 4 cellular, 2 Wi-Fi, and 1 GPS element
- Polarization: Linear
- Ground plane: Not required
- Color: White

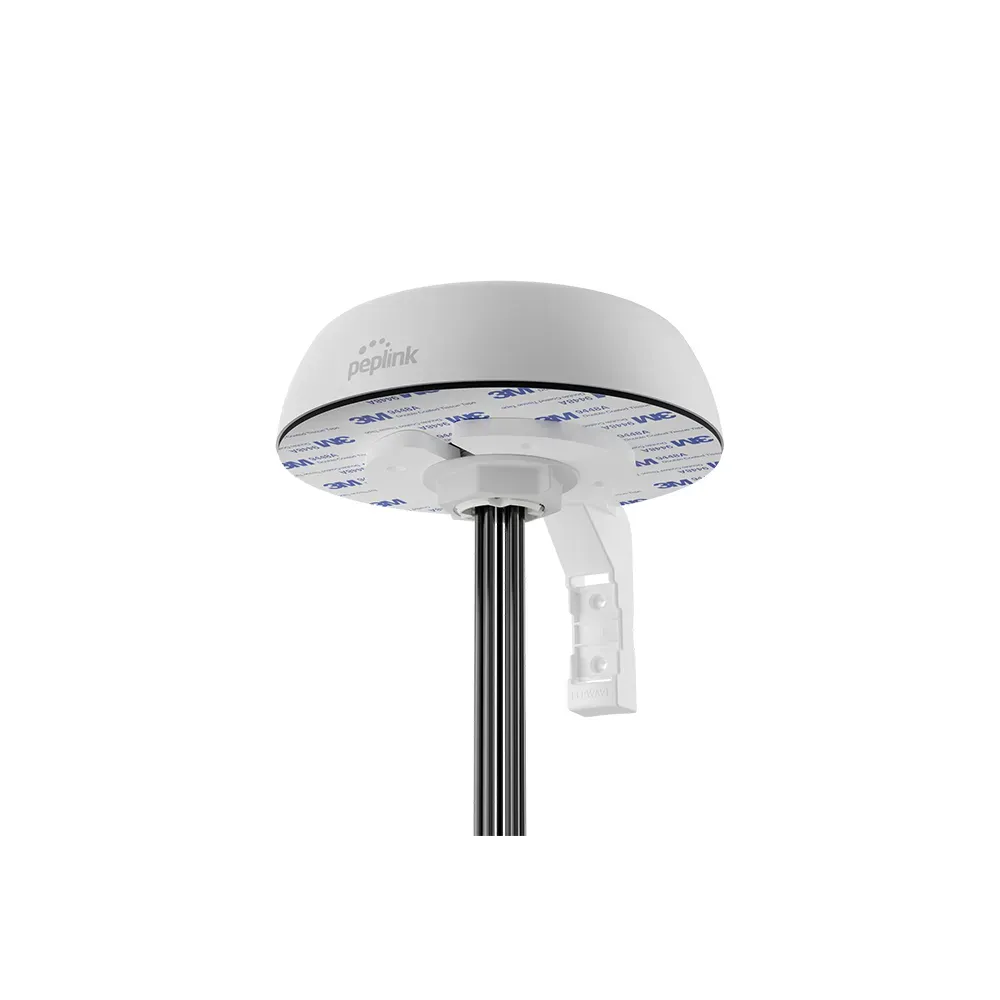

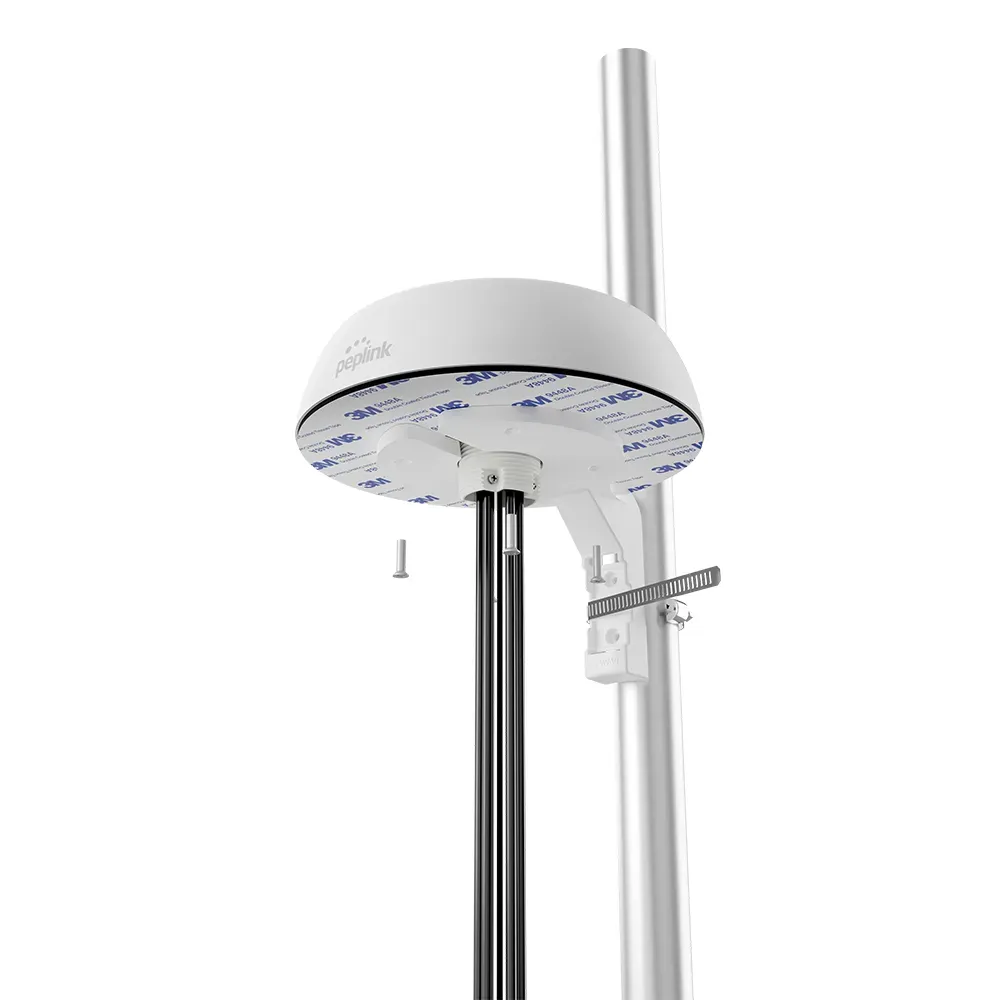

- Mounting options: Panel, wall, or pole
- Product code: ANT-MB-42G-S-W-16
Data Network
- Cellular antenna elements: 4
- Cellular configuration: 4×4 MIMO
- Cellular frequency range: 617–6000 MHz
- Cellular peak gain: 4.4 dBi at 617–960 MHz, 7.8 dBi at 1710–2700 MHz, 7.9 dBi at 3400–4200 MHz, 8.2 dBi at 5000–6000 MHz
- Supported LTE bands: B1–B86, excluding B31, B72, B73, B87, and B88
- Supported 5G bands: n1–n99
- Cellular VSWR: Less than 2.5 across 95% of the band
- Wi-Fi antenna elements: 2
- Wi-Fi configuration: 2×2 MIMO
- Wi-Fi frequency ranges: 2400–2500 MHz, 5000–6000 MHz
- Wi-Fi peak gain: 5.0 dBi at 2400–2500 MHz, 7.5 dBi at 5000–6000 MHz
- Wi-Fi VSWR: Less than 2.5
- GPS frequency range: 1561–1602 MHz
- GPS peak gain: 0.5 dBi at 1575 MHz, 1.6 dBi at 1602 MHz
- GPS LNA gain: 28 ±3 dB
- GPS noise figure: 1.5 dB maximum at 3.3 V
- GPS output return loss: 10 dB maximum
Interfaces
- Connectors: 7 × SMA male
- Cellular and Wi-Fi cable type: CFD-200
- GPS cable type: RG-174
- Cellular and Wi-Fi cable diameter: 5.0 mm / 0.2 in.
- GPS cable diameter: 2.7 mm / 0.1 in.
- Input impedance: 50 ohms
