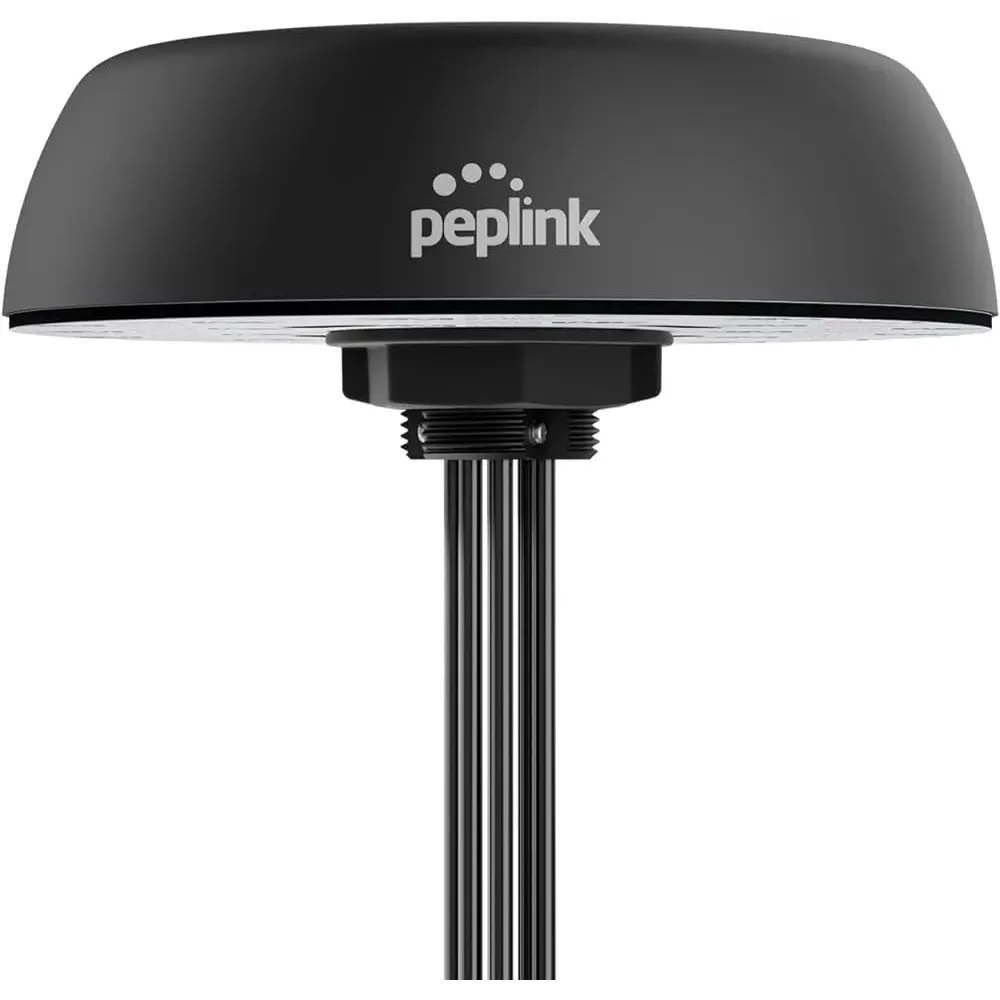

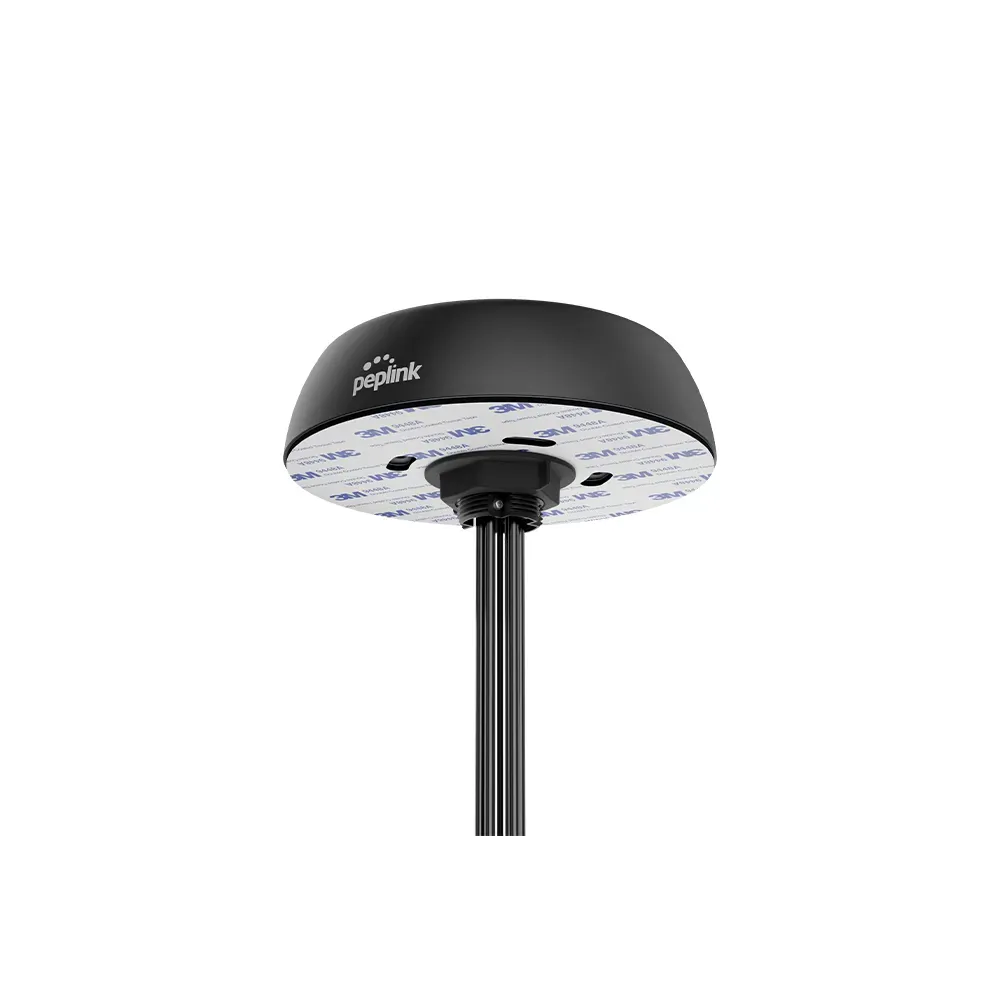

Enhanced Mobile Connectivity: Peplink Mobility 42G Black Antenna
Presenting the Peplink Mobility 42G, a comprehensive 7-in-1 antenna system tailored for mobile applications requiring top-tier cellular, Wi-Fi, and GPS connectivity. This sleek black version features 4xLTE/5G, 2x Wi-Fi, and 1xGPS channels, supporting a broad frequency range from 600 to 6000MHz. Designed to cater to the rigorous demands of public safety, mobile healthcare, and transportation connectivity, the Mobility 42G ensures optimal performance with 8.2 dBi LTE gain, extensive C-Band support for enhanced throughput, and an IP68 rating for durability against environmental challenges.
Robust and Future-Proof Design
Encased in a robust, IP68-rated housing, the black Mobility 42G antenna stands up to dust, water, and harsh weather conditions, making it ideal for challenging outdoor environments. Its low-profile design and black finish allow for discreet integration on any vehicle or mobile unit, ensuring aesthetics are maintained without compromising on performance. The antenna's 4x4 MIMO omnidirectional capability significantly improves mobile connectivity, making it a powerful ally for 5G networks and beyond.
Versatile Installation and Broad Compatibility

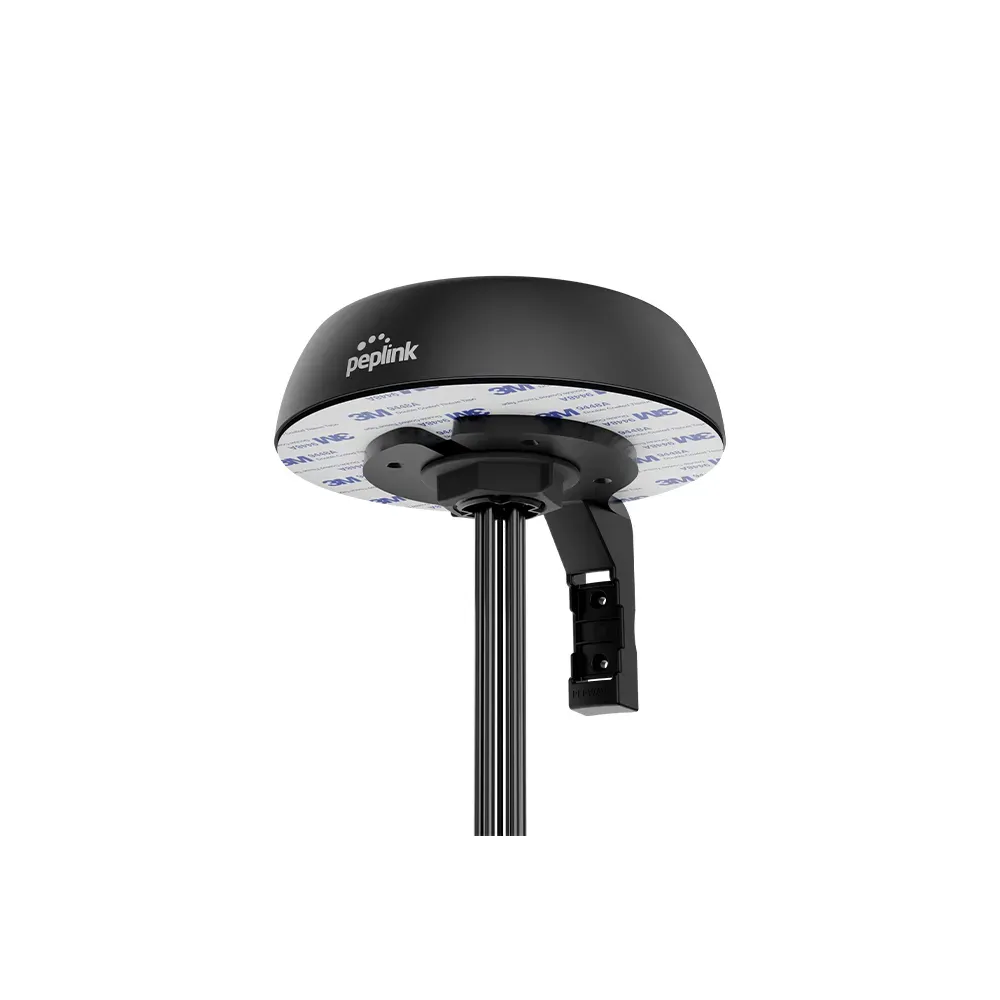

The ANT-MB-42G-S-B-6 model is designed for ease of installation, compatible with panel, wall, or pole mounting to suit a variety of deployment scenarios. Its ultra-wide bandwidth facilitates seamless LTE and 5G connectivity, while the dual-band Wi-Fi antennas offer extensive local network coverage. This model's exceptional performance across the 3.3 and 4.2 GHz frequency ranges promises a significant throughput speed boost, positioning the MOBILITY 42G as an indispensable tool for any advanced mobile network setup.
Technical Specifications
Power
- Cellular and Wi-Fi feed power handling: 10 W
- GPS operating voltage: 3.3 V
- GPS power consumption: 8.5 ±2.5 mA at 3.3 V
Dimensions
- Diameter: 20.8 cm / 8.19 in.
- Height: 5.8 cm / 2.28 in., excluding mounting spigot
- Mounting hole diameter: 4.3 cm / 1 11/16 in.
- Maximum panel thickness: 1.5 cm / 19/32 in.
- Cable length: 2 m / 6.5 ft.
Durability
- Enclosure rating: IP68
- Radome material: UV-stable polycarbonate
- Operating temperature: -40°C to 80°C / -40°F to 176°F
- Storage temperature: -40°C to 80°C / -40°F to 176°F
- Wind survivability: 220 km/h / 137 mph
- Enclosure flammability rating: UL 94 HB
- Cable flammability rating: UL 758 VW-1
- UV resistance: UL 746C, F1
- Salt-spray testing: MIL-STD-810F / ASTM B117
- Compliance: RoHS and REACH
Additional
- Antenna configuration: 4 cellular, 2 Wi-Fi, and 1 GPS element
- Polarization: Linear
- Ground plane: Not required
- Color: Black
- Mounting options: Panel, wall, or pole
- Product code: ANT-MB-42G-S-B-6
Data Network
- Cellular antenna elements: 4
- Cellular configuration: 4×4 MIMO
- Cellular frequency range: 617–6000 MHz
- Cellular peak gain: 4.4 dBi at 617–960 MHz, 7.8 dBi at 1710–2700 MHz, 7.9 dBi at 3400–4200 MHz, 8.2 dBi at 5000–6000 MHz
- Supported LTE bands: B1–B86, excluding B31, B72, B73, B87, and B88
- Supported 5G bands: n1–n99
- Wi-Fi antenna elements: 2
- Wi-Fi configuration: 2×2 MIMO
- Wi-Fi frequency ranges: 2400–2500 MHz, 5000–6000 MHz
- Wi-Fi peak gain: 5.0 dBi at 2400–2500 MHz, 7.5 dBi at 5000–6000 MHz
- GPS frequency range: 1561–1602 MHz
- GPS peak gain: 0.5 dBi at 1575 MHz, 1.6 dBi at 1602 MHz
- GPS LNA gain: 28 ±3 dB
- GPS noise figure: 1.5 dB maximum at 3.3 V
Interfaces
- Connectors: 7 × SMA male
- Cellular and Wi-Fi cable type: CFD-200
- GPS cable type: RG-174
- Input impedance: 50 ohms
