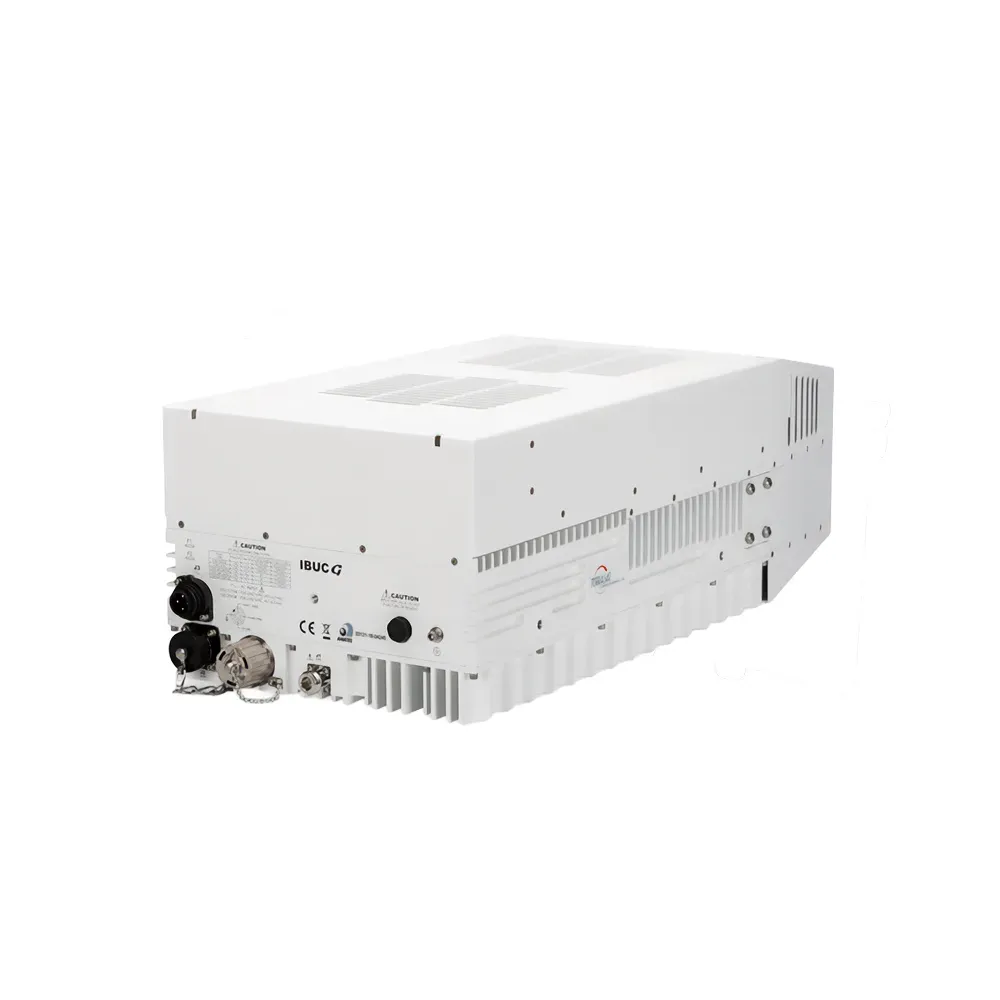

Intellian Terrasat Ku-band 200W (IBR137145-2NA201WW) VCM-1502
The Intellian VCM-1502 is a Terrasat IBUC G 200W block upconverter for compatible high-power maritime and fixed VSAT systems. Model IBR137145-2NA201WW covers the full 13.75–14.5 GHz Ku-band uplink range and converts a 950–1,700 MHz L-band modem signal for satellite transmission.
The integrated GaN amplifier provides 200W typical saturated output and at least 100W of linear output. Ethernet, RS-232/485, and FSK monitoring and control support remote configuration, status checks, and system integration in commercial vessels, offshore facilities, broadcast links, and network hubs.
Satellite Phone Store supplies Intellian and Terrasat maritime VSAT components. Our team can help confirm antenna compatibility, RF frequency requirements, AC power availability, and control interfaces before ordering.
Description
Full Ku-Band Frequency Coverage
The IBR137145 configuration operates across the 13.75–14.5 GHz full Ku-band uplink range and accepts a 950–1,700 MHz IF signal. Its non-inverting frequency conversion uses a 12.8 GHz local oscillator, supporting compatible satellite networks operating across standard and extended Ku-band frequencies.
High-Power Multicarrier Transmission
The VCM-1502 provides approximately +53 dBm, or 200W, of saturated RF output. Its minimum linear output is +50 dBm, equivalent to 100W, making it suitable for compatible multicarrier satellite links that require substantial usable transmit power.
Typical applications include:
- Commercial maritime broadband
- Cruise and offshore connectivity
- Broadcast contribution links
- High-capacity operational networks
- Fixed satellite gateways and network hubs
Actual link performance depends on the antenna, modem, satellite network, service configuration, and operating conditions.
Integrated Monitoring and Control
The Terrasat IBUC platform combines the block upconverter, solid-state amplifier, power supply, and management functions in one outdoor unit. Standard monitoring and control options include:
- Ethernet through an RJ45 connection
- HTTP, Telnet, and SNMPv2c management
- RS-232/485 through an MS-type connector
- Handheld terminal support
- FSK monitoring multiplexed over the transmit IF cable
Automatic gain control maintains output stability, while the internal power detector supports remote transmit-level monitoring.
AC-Powered Outdoor Installation
This 200W configuration operates from 200–240V AC at 50 or 60 Hz and consumes approximately 1,400 VA at saturated output. Its weather-resistant design is intended for installation near or within a compatible outdoor antenna assembly, reducing RF loss between the BUC and feed system.
Technical Specifications
Power
- Saturated RF output: 200W / +53 dBm typical
- Minimum linear RF output: 100W / +50 dBm
- AC input: 200–240V AC, 50/60 Hz
- Power consumption at saturated output: 1,400 VA
- Level stability with automatic gain control: ±0.5 dB
- Output power detector range: Rated output to -20 dB
- Output-power reading accuracy: ±1 dB maximum
Dimensions
- 58.4 × 25.4 × 18.8 cm / 23 × 10 × 7.4 in.
Weight
- 17 kg / 37 lbs
Durability
- Construction: Weather-resistant outdoor enclosure
- Amplifier technology: GaN solid-state power amplifier
- Operating temperature: -40–55°C / -40–131°F
- Relative humidity: 100% condensing
- Maximum operating altitude: 3,000 m / 10,000 ft above sea level
- Out-of-band compliance: ETSI EN 301 428/430 and MIL-STD-188-164C
Included
- Intellian VCM-1502 Terrasat IBR137145-2NA201WW 200W Ku-Band IBUC G
Additional
- Product type: Intelligent block upconverter
- Manufacturer: Terrasat Communications
- Terrasat model: IBR137145-2NA201WW
- Intellian part number: VCM-1502
- Product platform: IBUC G
- Frequency band: Full Ku-band
- Application: High-power maritime and fixed VSAT transmission
Data Network
- RF output frequency: 13.75–14.5 GHz
- IF input frequency: 950–1,700 MHz
- Local oscillator frequency: 12.8 GHz
- Frequency conversion: Non-inverting
- Small-signal gain: 83 dB minimum
- Gain adjustment range: 30 dB in 0.1 dB steps
- Full-band gain flatness: 4 dB peak-to-peak maximum
- 36 MHz gain flatness: 1.5 dB peak-to-peak maximum
- 1 MHz gain flatness: 0.25 dB peak-to-peak
- Input impedance: 50 ohms
- Input VSWR: 1.5:1
- Output VSWR: 1.3:1 maximum
- External reference: 10 MHz, -12 to +5 dBm
- Internal reference: Supported with automatic external-reference detection
Interfaces
- IF input: N-type female, 50 ohms
- RF output: WR-75 waveguide with groove
- Network management: Ethernet through RJ45
- Serial management: RS-232/485 through MS-type connector
- Additional management: FSK multiplexed over transmit IFL
- Supported management protocols: HTTP, Telnet, and SNMPv2c
- Handheld management terminal: Supported
