Thuraya IP NEO C terminal
- Ultra-Portable Design: Lightweight at 2.2 kg with built-in battery for mobile operations
- Fast Satellite Speeds: Up to 1024 kbps for video calls, file transfers, and streaming
- Field-Proven Durability: IP55-rated with rugged casing and wide temperature tolerance
- Built for Integration: Dual Ethernet ports, PoE, Wi-Fi, and mobile app compatibility
- Wide Industry Use: Supports real-time IoT, security, remote offices, and emergency response
- Quick Deployment: Simple setup—connect from backpack to satellite in under a minute
Description
Portable and Ready Anywhere
Designed for mobility, the IP NEO C can be deployed directly from a backpack and connected in seconds. The terminal includes a built-in lithium-ion battery offering up to 38 hours of standby time and up to 4 hours of high-speed data reception—suitable for remote teams, responders, or mobile field units.
Reliable High-Speed Connectivity
The terminal delivers up to 1024 kbps over Thuraya's 4-NGS satellite, supporting seamless video conferencing, VoIP, and secure data applications. Whether for mission coordination, surveillance, or real-time communication, it ensures uninterrupted access, even in harsh or isolated environments.
Durable and Weather-Resistant
The IP55-rated magnesium casing protects against dust and water ingress, while its wide operating temperature range (-21°C to +55°C) ensures performance in extreme conditions. Screw-on connectors and secure mounting options (tabletop or pole) make it suitable for fixed or mobile setups.
Seamless Integration and Control
Equipped with Wi-Fi hotspot capability, dual Ethernet ports, and PoE support, the terminal easily connects to smart devices and network hardware. Users can manage connections through a built-in web interface or the Thuraya Connect App, simplifying setup and control from a smartphone.
Versatile Applications
Ideal for ISR, M2M, perimeter monitoring, remote offices, eLearning, and telemedicine, the IP NEO C supports a wide range of critical communications across industries—from energy and defense to healthcare and education.
Features
- High-speed 1024 kbps
- 2.2 kg total weight
- IP55 weatherproof casing
- Built-in lithium-ion battery
- Up to 38h standby time
- 2x RJ45 Ethernet ports
- Wi-Fi hotspot
- Embedded SIP server
- Thuraya Connect App
- Web-based admin interface
- GPS / GNSS compatible
- PoE input/output
- AC/DC adapter included
- USB-free setup
- Multi-language UI
- Battery recharge <3 hrs
- CE, FCC, RoHS certified
Package
Thuraya IP NEO C terminal Includes:
- Thuraya IP Neo C Terminal with Embedded Lithium-Ion Battery
- AC/DC Power Supply, Euro Power Cord, EU to UK Converter
- Quick Start Guide
- Ethernet Cable
Technical Specifications
Power
- DC input range: 12 - 24 VDC (max. 10.8 - 33.6 VDC)
- AC/DC power supply:
- Input: 100-240 VAC, 47-63Hz, 64W
- Output: 19 VDC
Dimensions
- 8.86 × 8.86 × 2.40 in (225 mm x 225 mm x 61 mm)
Weight
- 4.85 lbs (2.2 kg)
Durability
- Water and dust: IP55 Compliant
- Temperature Operational (ambient): -21°C to +55°C
- Temperature Storage: -21°C to +50°C
Additional
- Streaming IP: 384kbps
- Standard IP: 1024kbps Thuraya 4
- Connectivity: High-quality voice & internet access
- Supported Applications: SR, C2, IoT/M2M, security, remote voice, video conferencing & transmission

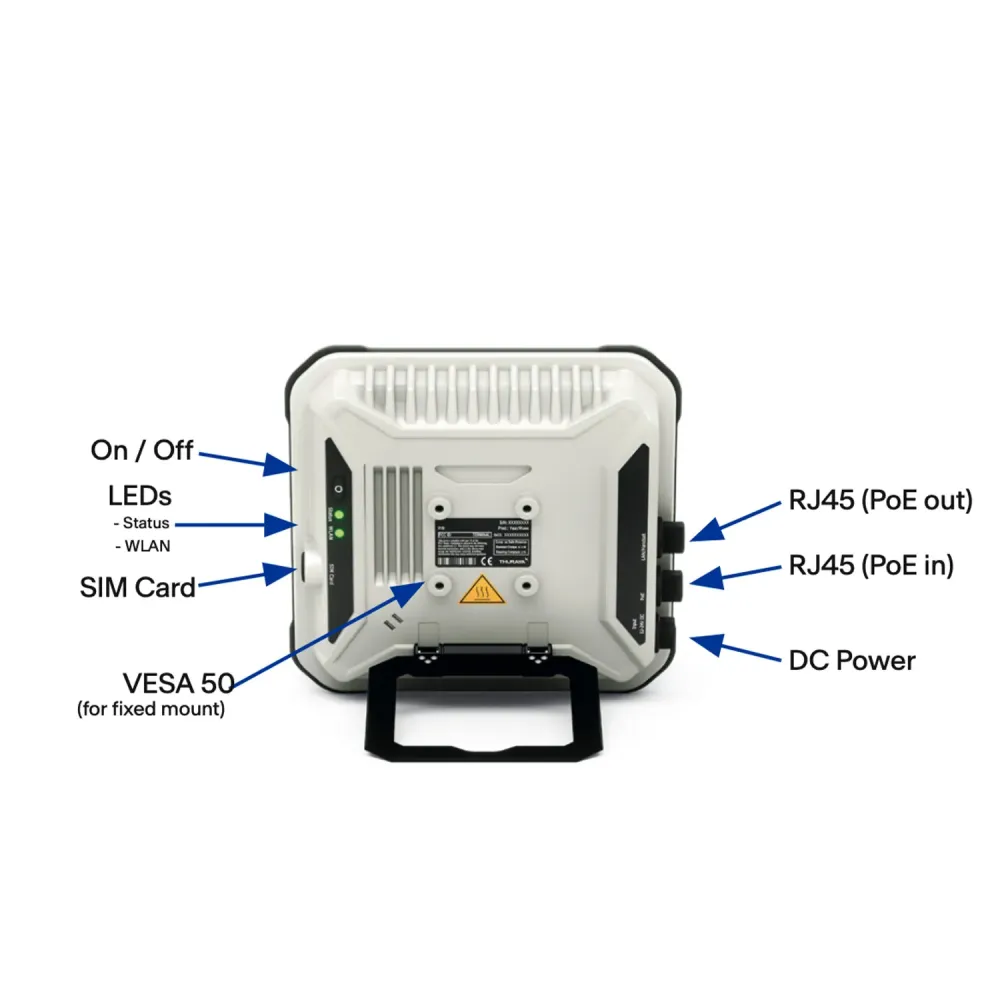

Interfaces
- WLAN Access Point: 802.11 b/g/n/ac
- 2 x Ethernet Ports: 1 x RJ45 (PoE input for ext. power), 1 x RJ45 (PoE output IP Handset
- User interface: 2 x LED (Status and WLAN), Power/Button, Reset Button, Web Interface
