Wireless Handset Bundle (EXTRMDD-PTT-VWK)
Description
Enhanced Communication Range
This bundle extends communication capabilities up to 500 meters from the base unit, ensuring that you stay connected even in remote and challenging environments. Its high-quality audio surpasses that of the Extreme phone, providing clear, distortion-free sound for reliable communication in any situation.
Built for Reliability and Durability
With IP55 weatherproof compliance and robust construction, this bundle is designed to withstand demanding conditions. Whether in harsh weather or high-vibration settings, this bundle maintains peak performance, making it ideal for field and industrial use.
Seamless Dual Push-To-Talk (PTT) Functionality

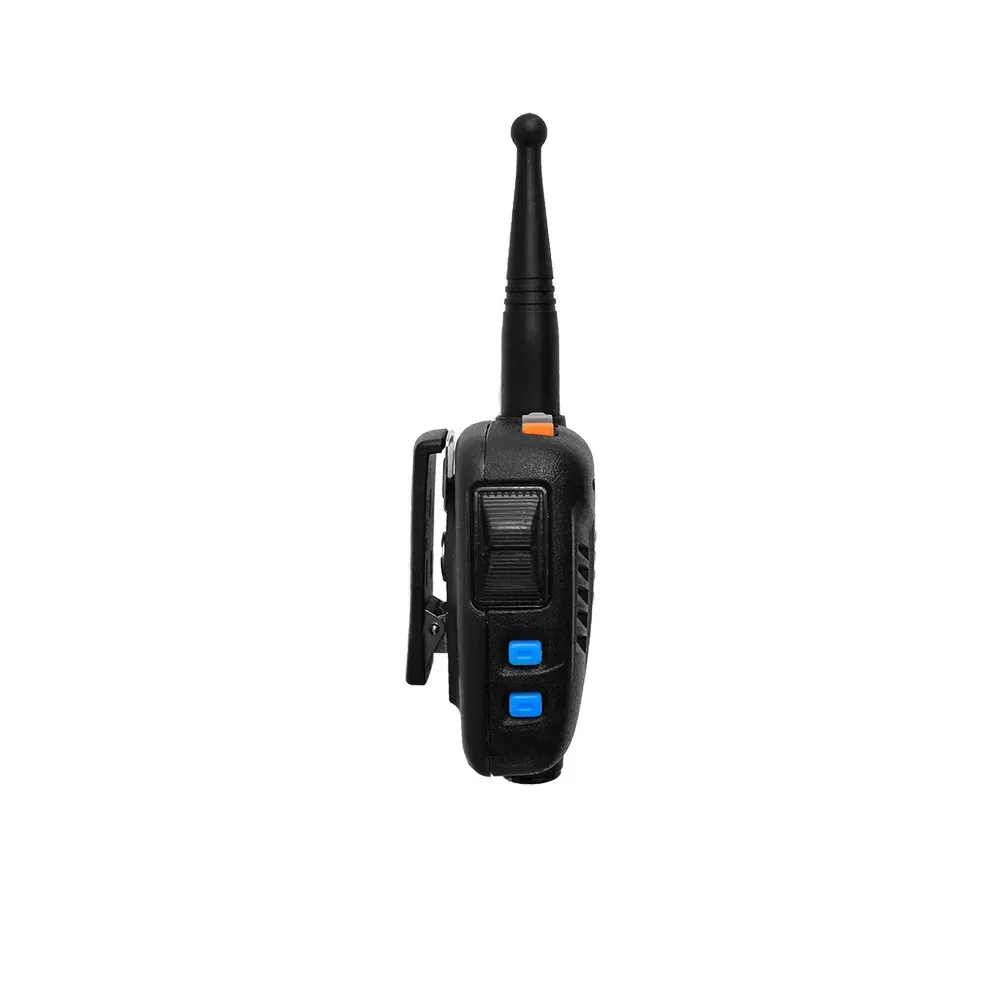

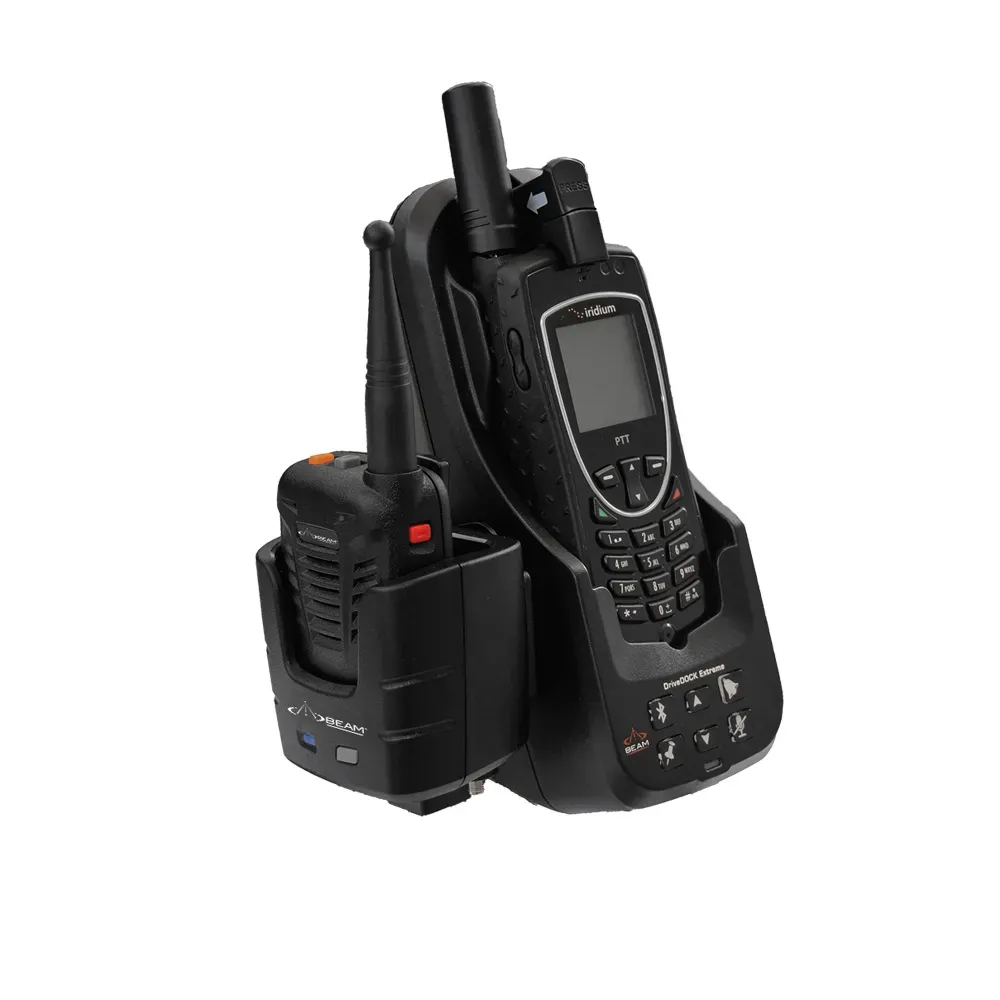

The DriveDock and wireless handsets enable seamless dual communication, allowing for efficient team coordination. The secondary PTT handset, PTT100A, pairs quickly, supported by visual and audio confirmations for a reliable setup with minimal downtime.
Effortless Hands-Free Use
The primary handset includes echo-canceling technology for clear, hands-free operation, perfect for in-vehicle setups and other transport applications. It integrates easily with the DriveDock, which supports multiple connectivity options, such as Bluetooth and USB, for versatile use.
Powerful Audio and Convenient Mounting Options

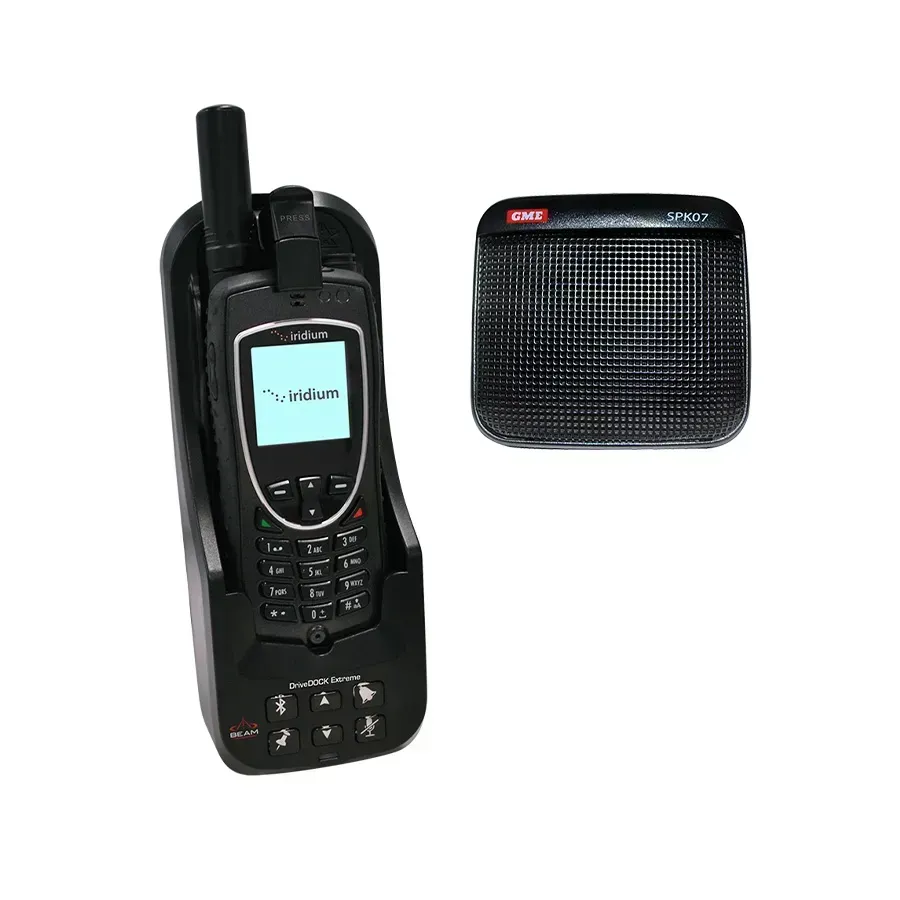

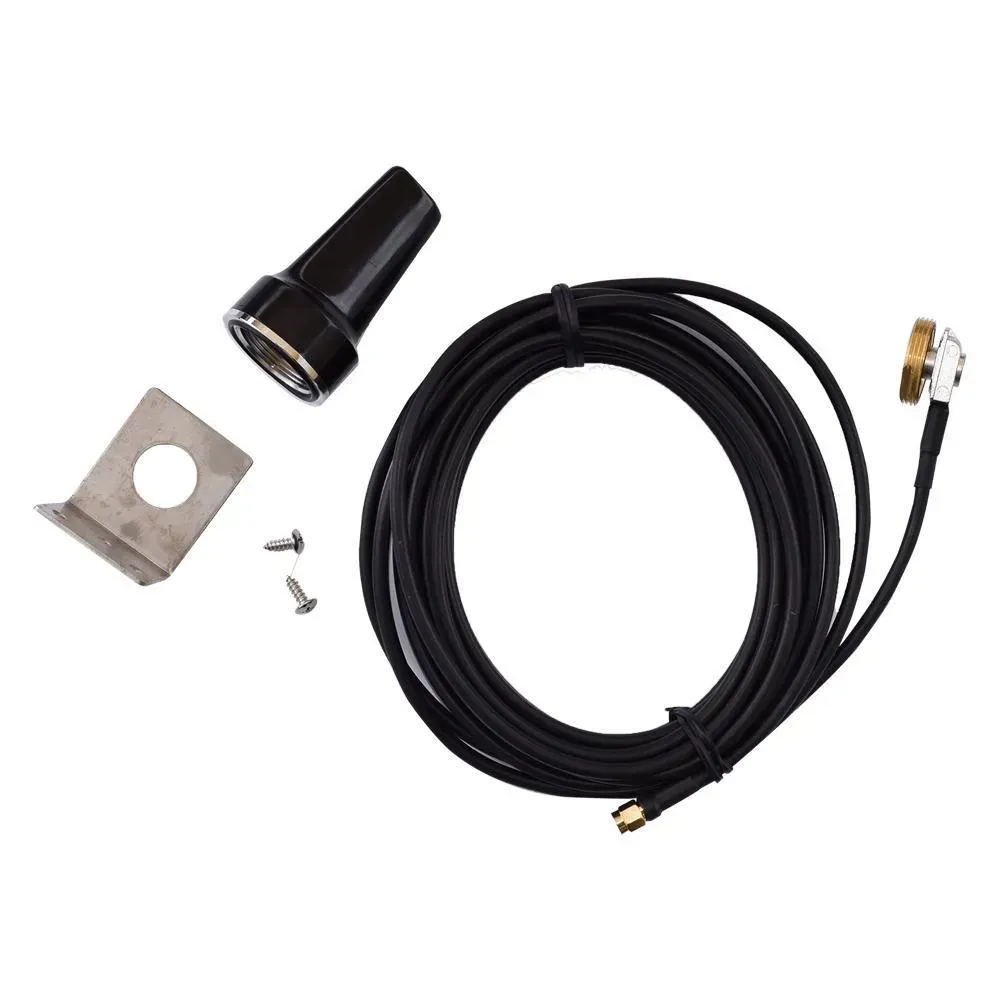

Featuring a powerful speaker and versatile mounting with the Magnamount Antenna, this bundle offers flexibility in installation and excellent sound quality, enhancing communication clarity, especially in noisy environments. Optional accessories like the 3.5mm earpiece jack add further customization to fit various operational needs.
Environmental and Power Efficiency
The DriveDock Extreme operates in extreme temperatures and comes with power efficiency modes like standby and sleep, conserving energy in remote settings. Designed to meet Iridium, CE, and RoHS standards, this bundle provides peace of mind for both performance and environmental safety.
Features
- Durable, IP55 weatherproof
- Dual PTT support
- 500m communication range
- Bluetooth and USB connectivity
- Echo-canceling hands-free audio
- Multiple mounting options
- Standby and sleep modes
- Supports phone and PTT modes
- External loudspeaker support
- Compact, vehicle-friendly design
- Extreme temperature tolerance
Package

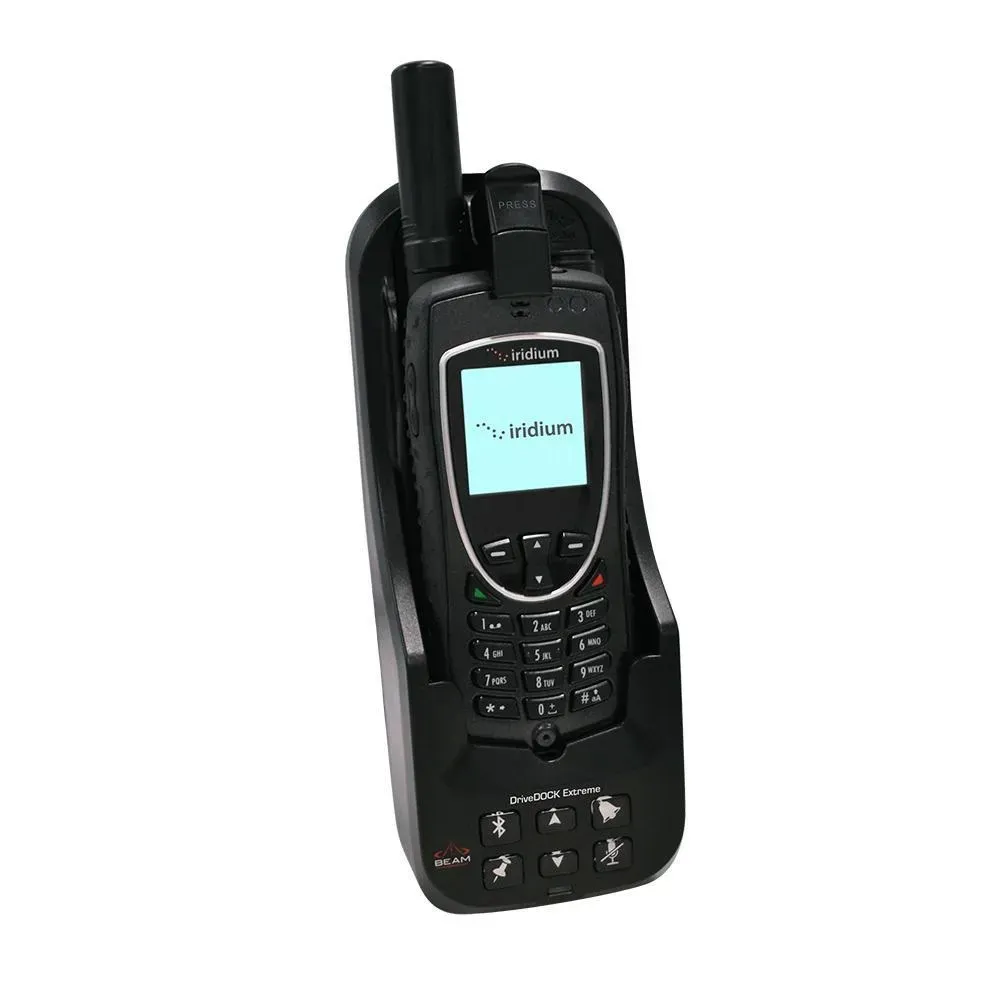

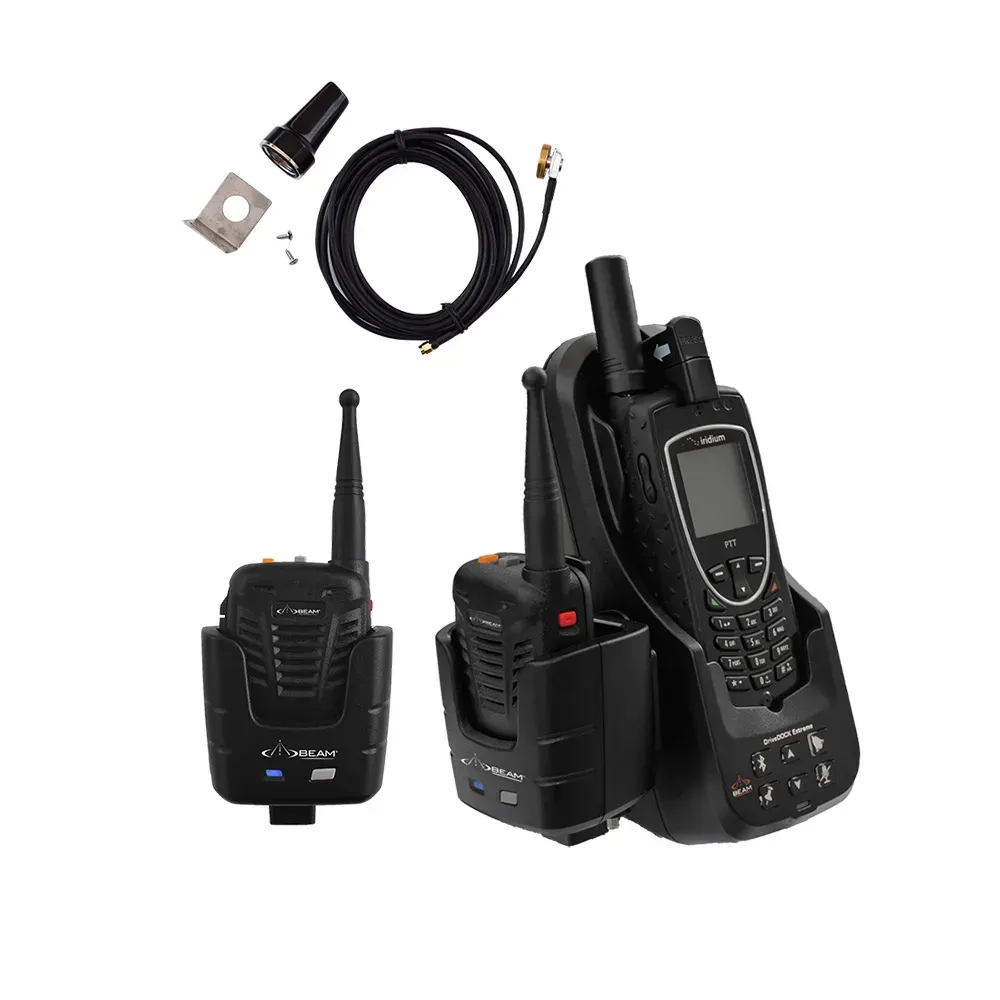

Wireless Handset Bundle (EXTRMDD-PTT-VWK) Includes:
Technical Specifications
Power
- DriveDOCK Extreme :
- Rated Input: 9-32V DC / 2A max
- Standby: 70mA / 0.84W
- Transmit + Charging: 0.7A / 8.4W
- Sleep Mode: 5mA / 60mW
Dimensions
- DriveDOCK Extreme:
- Dock: 3.3 W x 3D x 8.3H in (83 x 76 x 212 mm)
- Outer Box: 5.51 x 4.92 x 13 in (140 x 125 x 330 mm)
- Wireless Push-To-Talk Handset:

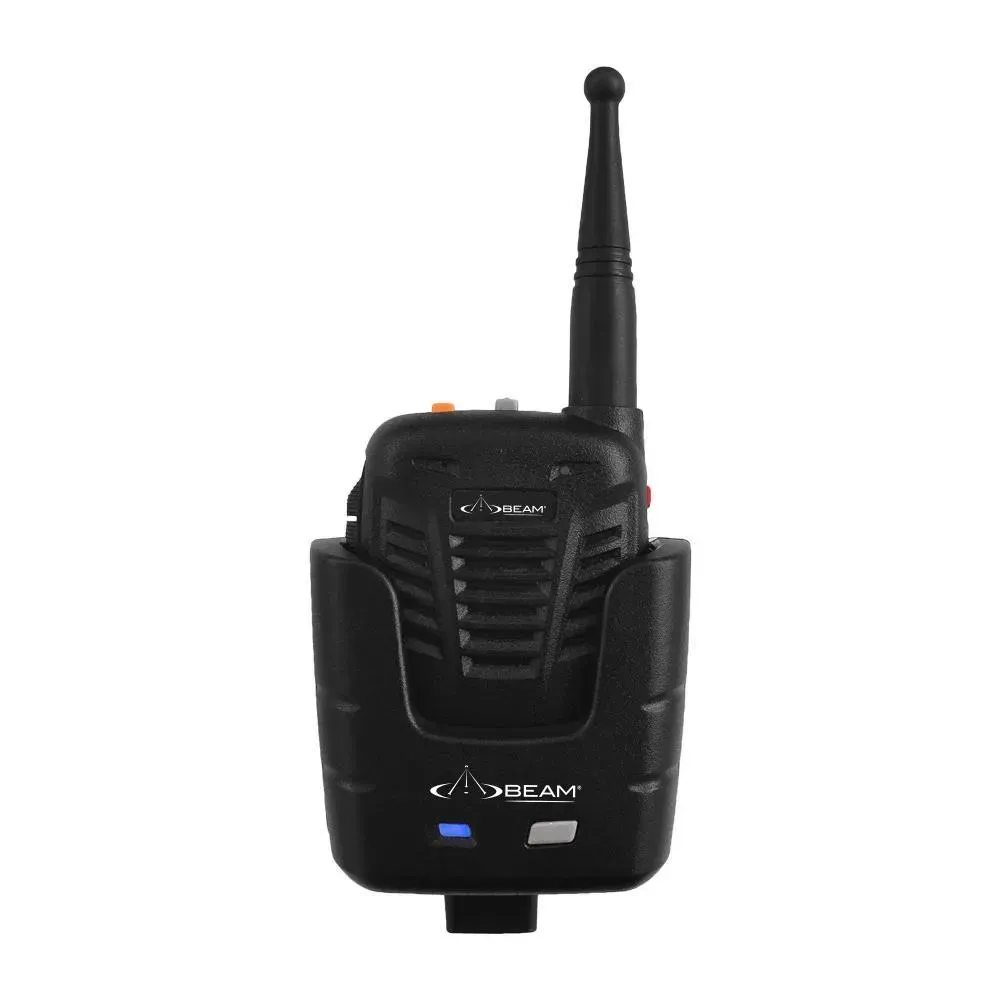

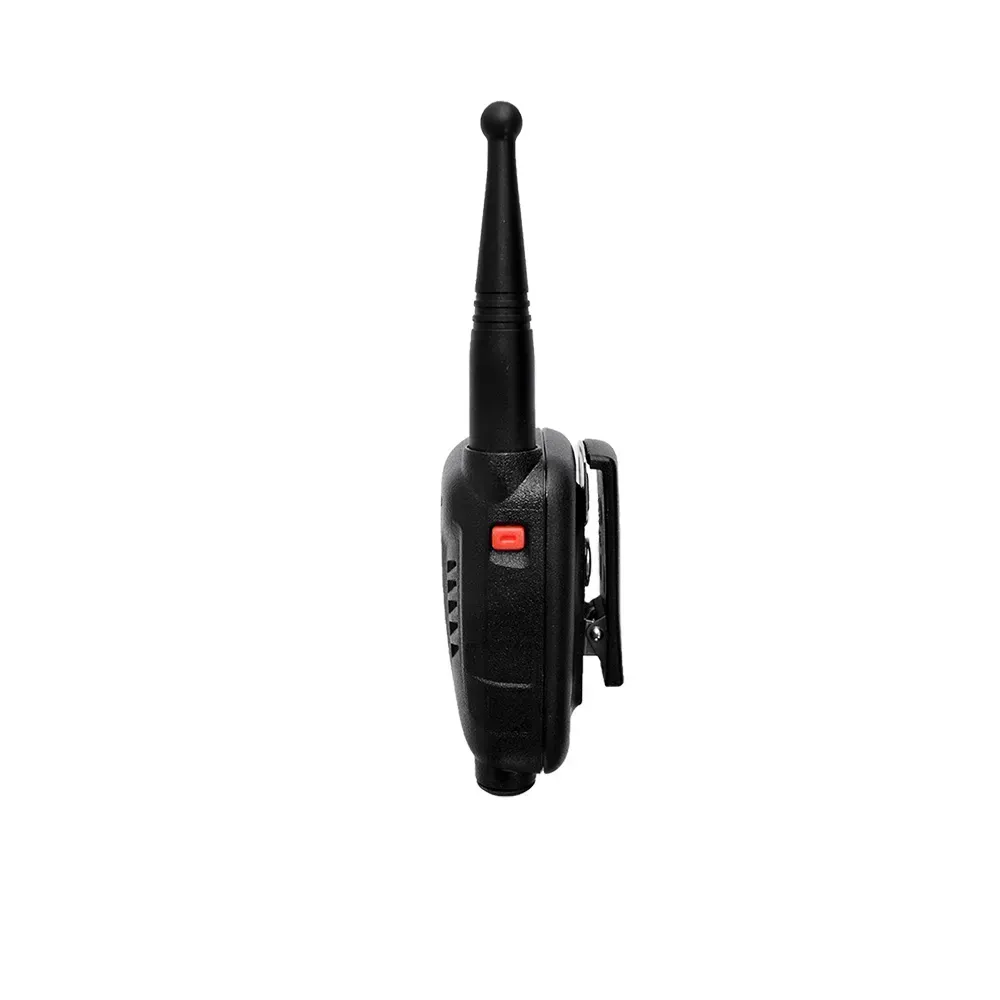

- Dimensions - PTT Wireless Handset: 3.46 x 1.1 x2.48 in (88 x 28 x 63 mm)

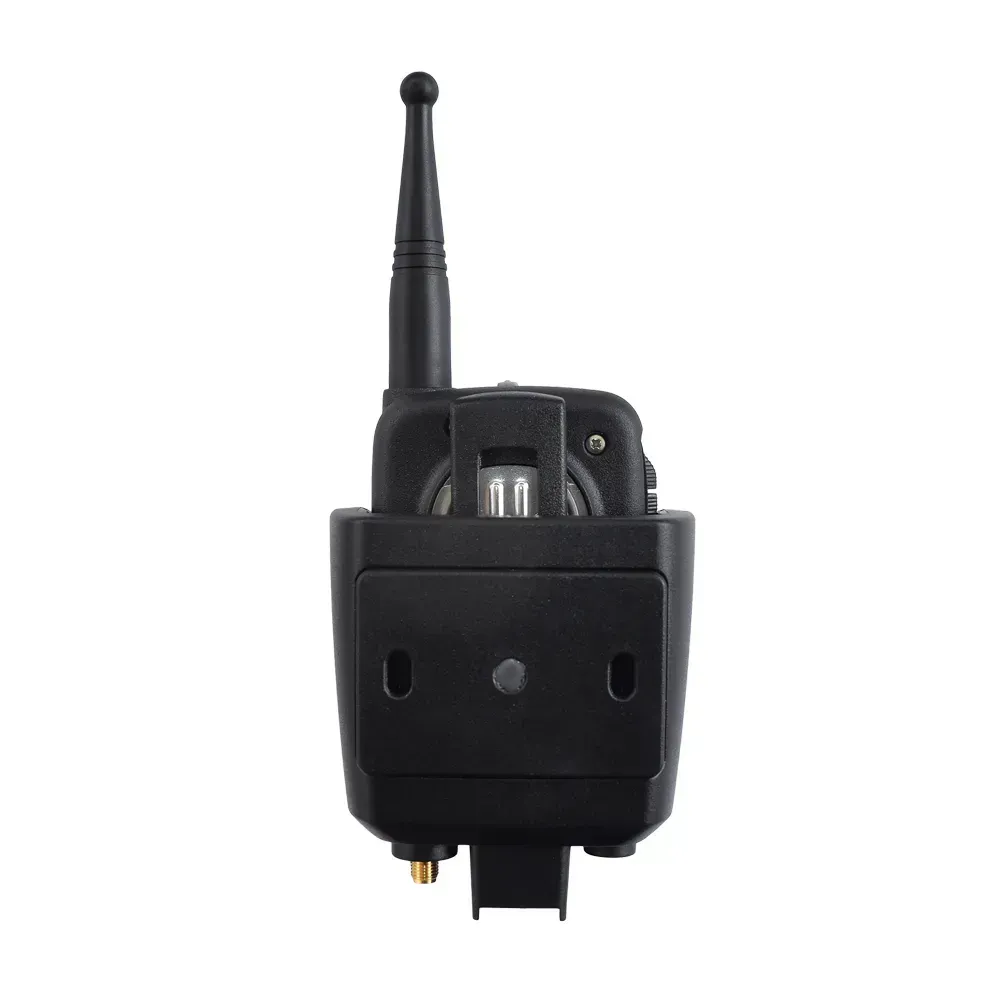

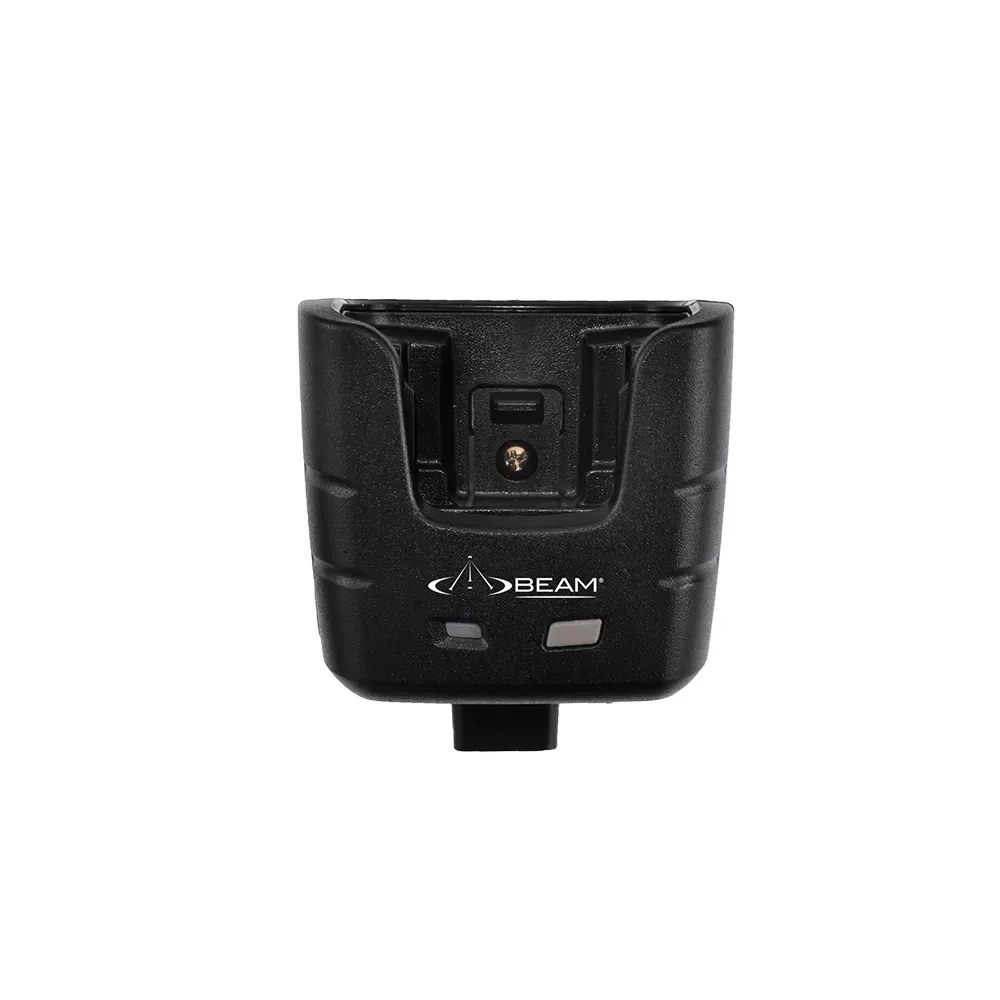

- Dimensions - PTT Cradle: 3.15 x 3.15 x 2.36 in (80 x 80 x 60 mm)
Weight
- DriveDOCK Extreme :
- Dock: 1.1 lbs (0.48 kg)
- Box: 3.4 lbs (1.5 kg)
- Wireless Push-To-Talk Handset :
- Weight - PTT Wireless Handset: 1.10 lbs (0.150 kg)
- Weight - PTT Cradle: 0.27 lbs (0.125 kg)
Durability
- DriveDOCK Extreme :
- Operating Range: -22°F to +158°F (-30°C to +70°C)
- Charging Range: +32°F to 113°F (0°C to 45°C)
- Storage: -31°F to 185°F (-35°C to +85°C)
- Operating Humidity Range: < 85% RH non-condensing
- Wireless Push-To-Talk Handset:
- Humidity/Rain/Dust: IEC529, IP67 (Wireless Handset only)
- Operating Temperature: -4°F to +122°F (-20°C to +55°C)
- Vibration and Shock: Mil Std 810 C/D/E/F
Included
- Extreme DriveDock

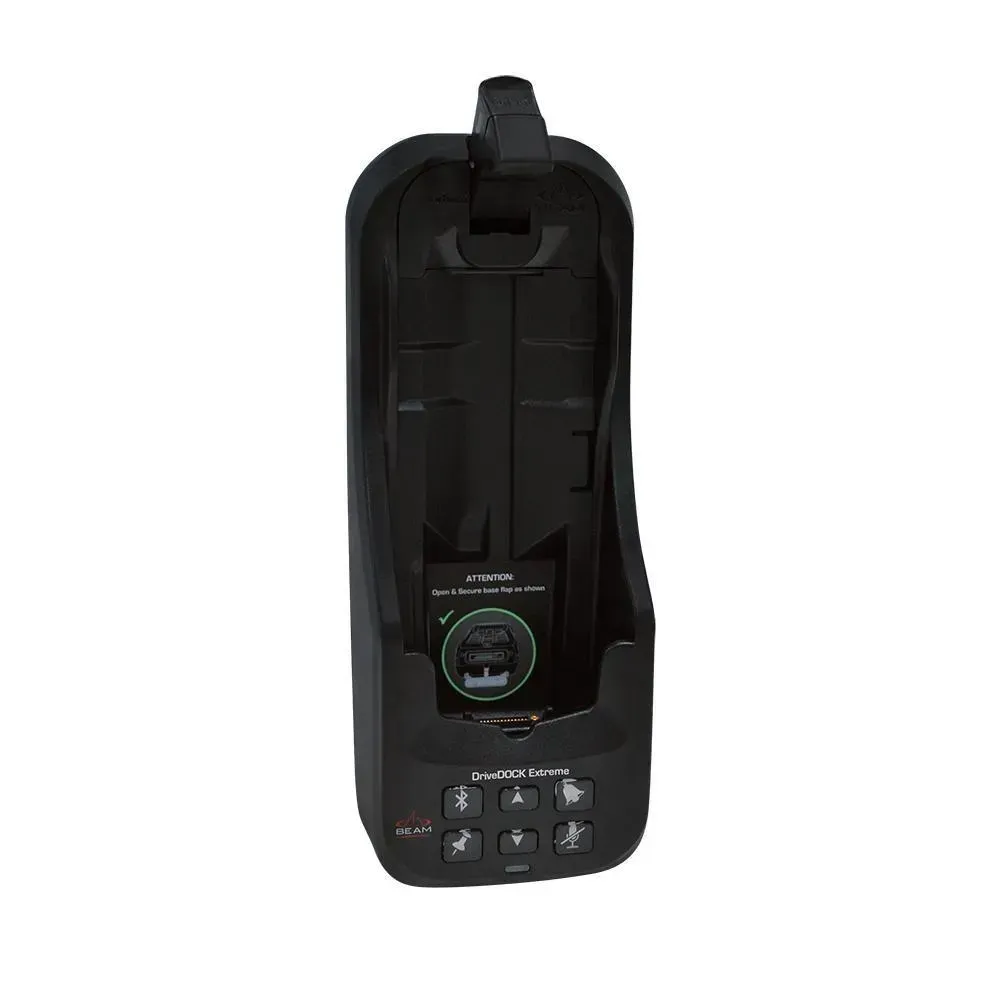

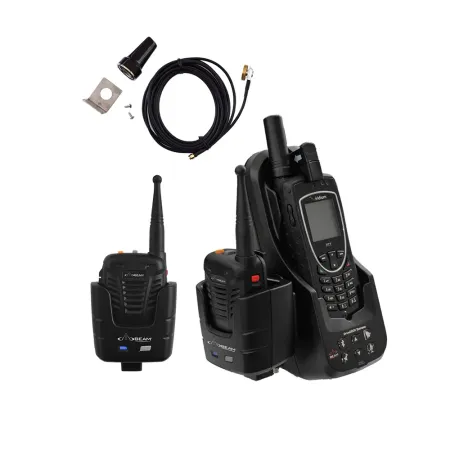

- 2 x Wireless PTT handsets PTT-W1A & PTT-100A
- External Wireless PTT Antenna and all cables & mounting brackets.
Battery
- Wireless Push-To-Talk Handset:
- Battery Type: 3.7V @1450mA Lithium Polymer
- Battery Life: >15 Hours @ 30% receive time
Interfaces
- DriveDOCK Extreme:
- Privacy Handset (Line In/Out): 4-pole 3.5mm audio jack at the bottom of the DriveDOCK cradle.
- External Speaker and Microphone: One horizontal 2-pin Microfit connector on the cable loom for speaker and one vertical 2-pin Microfit connector for microphone.
- Data Port (USB): USB Mini-B 5-pin female (USB Slave). USB 2.0 compliant, CDC Serial profile.
- Alarm (Alert) Loop: Alarm Mode: “Normally-Closed” Loop IN to OUT Up to 50m cable run multiple buttons in series. Brown wire is Input, Green wire is Output.
- Horn Output / Audio System Mute: Blue wire on the cable loom. Open collector output can be interfaced to 12V or 24V DC with up to 120mA current sink capability.
- Power Cable: 4-way Microfit socket. +Vin (Red wire),0V (GND, Black wire), and ACC (On/Off Sense, Yellow wire). 9-32VDC tolerant. ACC sense: High(1) > +7Vdc Low (0) 0V < +5Vdc
- LEDs/Buttons: Bluetooth, Ringer, Track, Mute, Up & Down
- Wireless Push-To-Talk Handset:
- Hirose Audio Port: Industry standard – 6-pin accessory port
- Audio Port: Standard 3.5mm mono jack (TS)

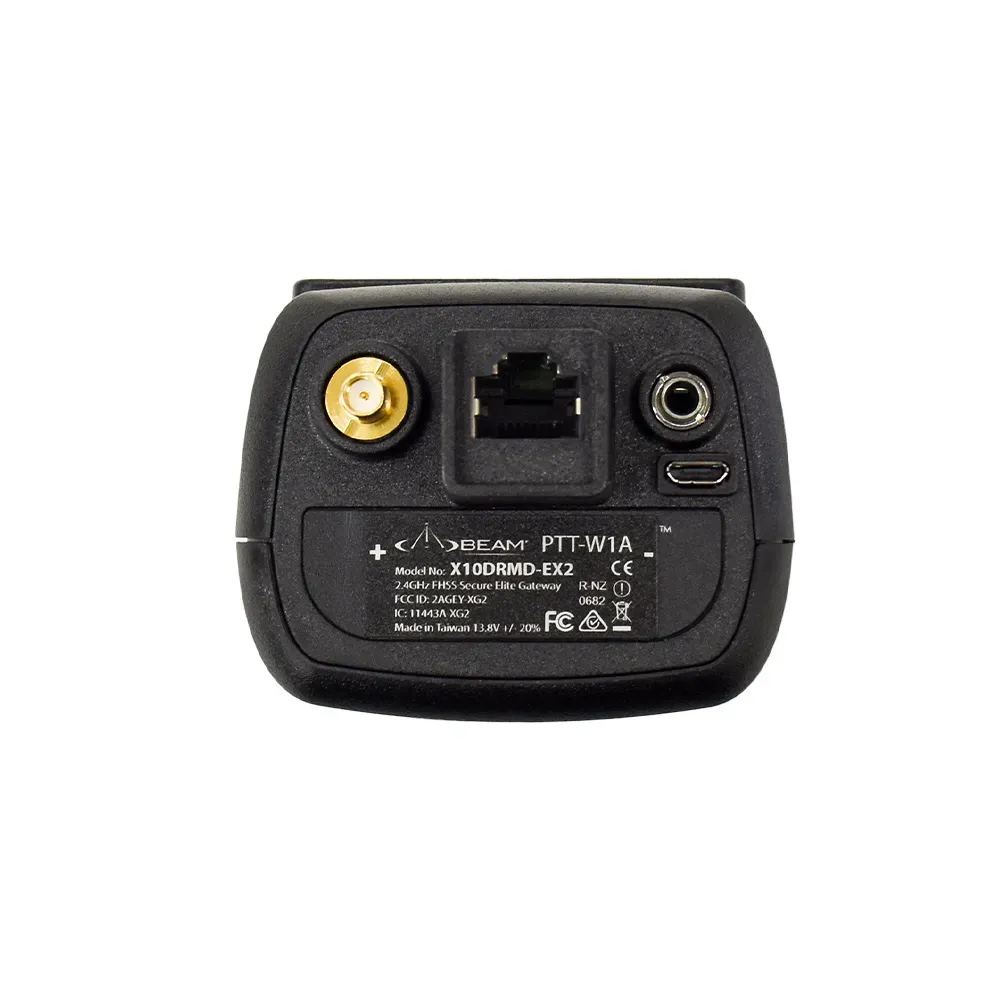

- Interface Connector: RJ45
- Antenna Connector: RP SMA Female
