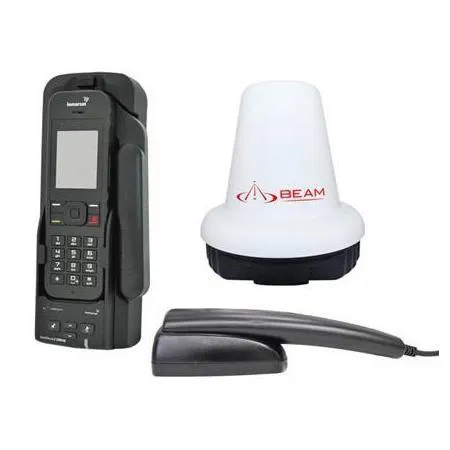

Beam IsatDock2 LITE Bundle w/ Active Antenna

Tags: Beam, Docking Stations
 In Stock
Beam
Buy
$1,945 .00
Features:

***This bundle does not include the active cable

Description

Beam IsatDock2 LITE Docking Station Features

  • Slim line compact installation
  • Privacy Handset option (ISD955)
  • Voice, SMS and Circuit Switched Data capable
  • Tracking and SOS (Via the ISatPhone 2)
  • USB data interface
  • Accessory / Ignition sense
  • 10-32V DC power input
  • AC Plug pack 110/240 input (optional)
  • SMA Connectors – Inmarsat Antenna / GPS Antenna
  • Full certified, FCC, Industry Canada, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
  • 2 year repair or replacement warranty
  • 100% factory tested

Bluetooth Connection


The IsatDock2 LITE enables voice calling capabilities via the inbuilt Bluetooth of the handset or an optional privacy handset simply connected to the dock.


Beam IsatDock Marine Active Antenna (ISD710)


The antenna connections (GSPS and GPS) are protected from the environment with its solid bracket attached to the antenna. The pole mount system is designed so that the cables can be thread through a PVC pole and then attached to the antenna directly keeping the cables and the connector protected from the environment. The ISD710 works with all of the Beam Inmarsat IsatDock’s and Oceana terminals, however MUST only be used with Beam certified ACTIVE antenna cables.



Technical Specifications

Dimensions
  • Beam IsatDock2 LITE Docking Station : 9.0 x 3.9 x 3.0 inches
  • Beam IsatDock2 LITE Docking Station Outer box : 11.42 W x 6.69 D x 7.48 H inches
Weight
  • Beam IsatDock2 LITE Docking Station : 1.23lbs
  • Beam IsatDock2 LITE Docking Station Box : 2.97lbs
Battery

Beam IsatDock2 LITE Docking Station :

Average Power Consumption
  • Power w/o IsatPhone 2 : 1.6W
  • Standby + Charging : 4.3W
  • Transmit + Charging : 10.5W
  • Sleep Mode : 60mW
  • Peak Current : 42W
Interfaces

Beam IsatDock2 LITE Docking Station :

  • Inmarsat Antenna : TNC-Female
  • GPS Antenna : SMA-Female
  • 10-32 VDC : 4-way microFit (AC/DC adaptor, or DC lead)
  • Privacy Handset Port : RJ9 connector
  • Configuration / Data : USB Micro
  • LEDs/Buttons : Status LED, Ringer, Mute, Up and Down
  • Operating Range : -31°F to +185°F
  • Storage : -4°F to +158°F
  • Battery Charging Temp * It is ideal for the ambient temperature to be approximately 18 degrees below the 45°C upper limit for the handset to charge the battery whilst docked. : 32°F to +113°F
  • Humidity : <- 75% RH
