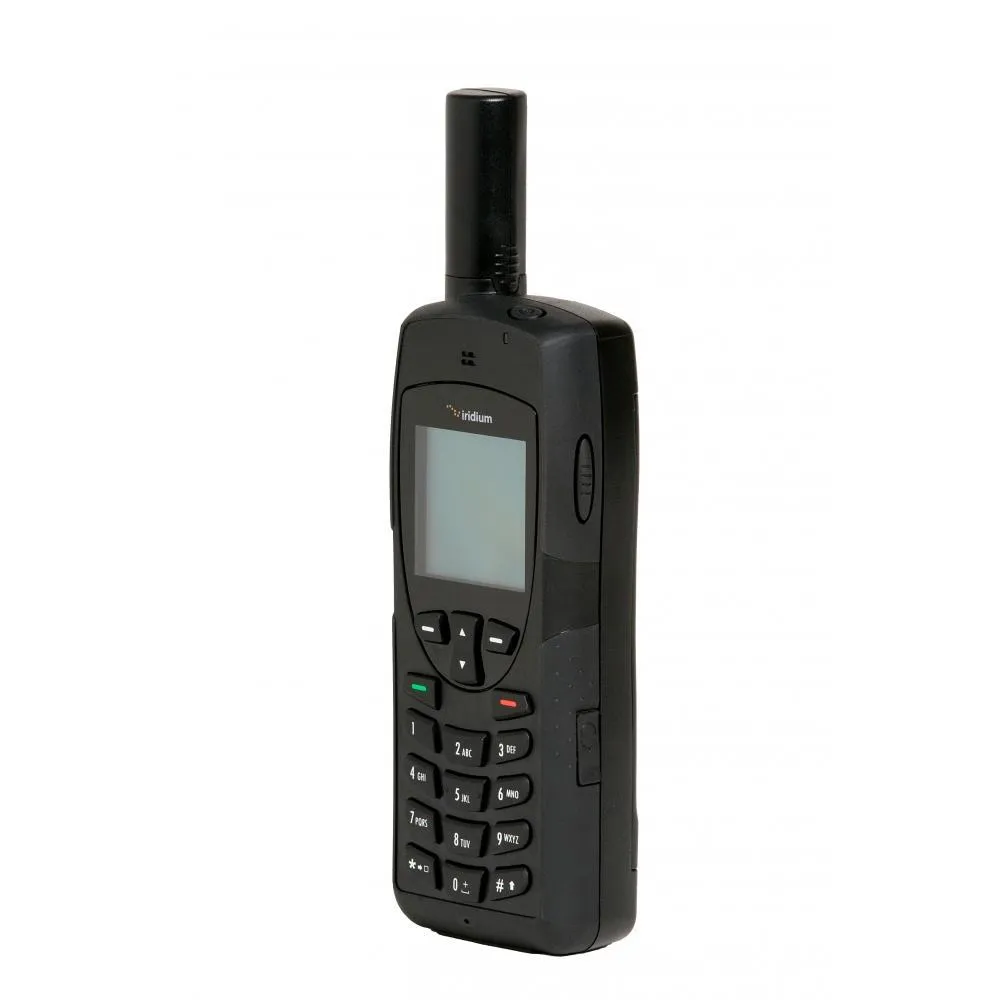

Iridium 9555 Beam PotsDock Voice Bundle W/ Satellite Phone
Description
Beam PotsDOCK 9555 is compact docking station specifically designed to support RJ11 / POTS, Bluetooth and builtin GPS significantly extending the features and capability of the Iridium 9555 satellite phone. PotsDOCK enables the 9555 phone to be used in a wide spectrum of applications, the RJ11 / POTS interface enables standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones like a regular phone network.
Smart alert & tracking module can be configured to support periodic polling or emergency alert reporting. The Iridium 9555 handset fits securely in the docking station that enables the builtin Bluetooth feature, USB data, phone charging and integrated antenna, data and power connection making it possible to keep all antenna cables and power permanently connected to the dock ready for use. PotsDOCK supports the use of an additional compact Beam Privacy Handset that can be located next to the PotsDOCK for added convenience if required.
Watch Our Video Below To Learn More About The Iridium 9555 Satellite Phone.
Instructional Video Includes :
Turning on the satellite phone - How to make a phone call - How to send a text message
Features
Features:
- RJ11/POTS Connectivity - Standard Analog Telephone Connection
- Ring, Busy & Dial tones In-built GPS alert & tracking system
- Bluetooth Voice Connectivity
- USB data Port
- Integrated antenna connection
- Charges 9555 Handset
- 9 - 32V DC Input
- Supports Voice & Data services
- Inbuilt Ringer
- Easy & Convenient Installation
- Privacy Handset
- Superior voice quality
- Universal Mounting Bracket
- Fully Certified – Including ROHS
- Easy to install
Package
- Iridium 9555 PotsDock cradle [9555PD]
- Privacy Handset [RST755]
- Iridium Marine Mast Antenna (Pole Mount) AT1621-142
- 12m Cable Kit [RST933]
- Universal mounting arm
- 10-32V DC or AC pack
- DC leads
Technical Specifications
Dimensions
- Dock Dimensions (H x W x D)
- 7.9 in (200 mm) x 3 in (75 mm) x 2.6 in (65 mm)
- Packed Dimensions
- 12.8 in (325 mm) x 5.5 in (140 mm) x 3.5 in (88 mm)
Weight
- Dock Weight
- 0.7 (0.32 kg)
- Outer Box Weight
- 2.86 lbs (1.3 kg)
Durability
- PotsDOCK 9555 Operating Range
- -20°C to +70°C / -4°F to +158°F
- 9555 Handset Operating Range
- -10°C to +55°C / -14°F to +131°F
- Charging Range
- 0°C to +40°C / 32°F to 113°F
- Storage
- -30°C to +70°C / -22°F to +158°F
- Operating Humidity
- < 85% RH non-condensing
Battery
- 9-32V DC, 2A max
Data Network
- Iridium
Usage Control Features
- Standby, handset + RJ11
- Current @ 12 V - 90mA
- Power Watts - 1.1W
- Transmit, handset + RJ11
- Current @ 12 V - 0.5A
- Power Watts - 6W
Interfaces
- Iridium Antenna
- Fixed Cable to TNC-Female
- POTS/RJ11
- RJ11/2-wire, complex or 600 Ω, 5REN, 600m adjustable dial/busy tones/frequency, adaptive Z
- GPS Antenna
- Fixed Cable to SMA-Female
- 9 - 32 VDC
- 4-way microFit (AC/DC adator, or DC lead)
- Bluetooth Voice Only
- Inbuilt module/antenna, class 1 (up to 300m) Bluetooth® system 2.0v+EDR, CE and FCC
- Privacy Handset Port
- 4 pole 3.5mm jack
- Data Port
- USB Mini Base of Dock
