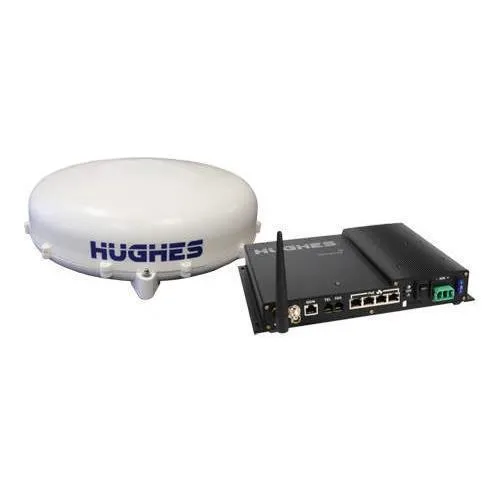

Hughes 9250 Mobile Inmarsat BGAN Terminal
- Uses a fully autonomous tracking antenna
- WLAN access point
- Allows simultaneous use of all interfaces (Ethernet, ISDN and WLAN)
Description
The HNS-9250 uses a fully autonomous tracking antenna that acquires and tracks the BGAN satellite signal while a vehicle is in motion. The BGAN network is not yet optimized for mobile operation, so performance on the move must be considered 'best effort'. Signal outages of more than 3 seconds will cause circuit-switched calls to be dropped and packet data sessions to be interrupted.
For example, in mobile operation this can happen when the vehicle passes under a bridge or a roof. User intervention may be required to reactivate connections if longer outage durations occur. Also, if the vehicle moves across a spot beam boundary, automatic switching to the new spot beam is not supported, and both voice and data calls must be stopped and re-initiated.
Technical Specifications
What comes in the box?
- Tracking Antenna including interface box, cable set and magnetic feet for roof mount.
- Broadband Satellite IP Terminal and WLAN Access Point
- Rechargeable lithium ion battery pack
- DC to DC power supply ? powers the satellite modem as well as the tracking antenna.
- Ethernet cable
- ISDN cable
- User guide/Installation CD (PDF file on CD)
HNS-9250 main features
- Fully autonomous tracking antenna acquires and tracks the BGAN satellite signal while on the move
- Easy antenna installation (magnetic mount) on vehicle roof
- Includes antenna control unit and all cables and power supplies for vehicular installation
- Up to 464kbps shared data rate and 128kbps streaming IP data rate.
Other features of the HNS-9250
- ISDN bearer capabilities : Speech (4kbps), 3.1k Audio (64kbps), ISDN data (64kbps)
- Allows simultaneous use of all interfaces (Ethernet, ISDN and WLAN)
- WLAN access point
- Multi-user capability (up to 11 simultaneous sessions)
- Selectable Quality of Service (32kbps, 64kbps or 128kbps)
Power
- Idle : 20 W
- Max : 100 W (when transmitting)
Operational temperatures
- Antenna : -25°C to +55°C operating
- -25°C to +80°C survival
- Main unit :-25°C to +60°C operating-25°C to +60°C storage (w/ battery)
Operating Humidity
- 95% RH at +40 C
Ingress Protection
- IP56
Above-deck unit (ADU)
- 477 mm x 153 mm
- Weight : 5.5 Kg
Below-deck unit (BDU)
- 275 mm x 345 mm x 50 mm
- Weight : 2.8 Kg (terminal with battery)
Vehicle Motions
- Turning Rate : 40/s
- Turning acceleration 50/s^2
Wind
- 125 mph (200 km/h)
- Exception for Magnetic Mount : 100 mph (160 km/h)
Features
- HNS-9250 main features:
- Fully autonomous tracking antenna acquires and tracks the BGAN satellite signal while on the move
- Easy antenna installation (magnetic mount) on vehicle roof
- Includes antenna control unit and all cables and power supplies for vehicular installation
- Up to 464kbps shared data rate and 128kbps streaming IP data rate.
- Other features of the HNS-9250:
- ISDN bearer capabilities: Speech (4kbps), 3.1k Audio (64kbps), ISDN data (64kbps)
- Allows simultaneous use of all interfaces (Ethernet, ISDN and WLAN)
- WLAN access point
- Multi-user capability (up to 11 simultaneous sessions)
- Selectable Quality of Service (32kbps, 64kbps or 128kbps)
Package
Hughes 9250 Mobile Inmarsat BGAN Terminal Includes:
- Tracking Antenna
- Interface Box
- Antenna Cable Set
- Magnetic Antenna Feet for Roof Mount
- Ethernet cable
- ISDN cable
- Broadband Satellite IP Terminal and WLAN Access Point
- Rechargeable lithium ion battery pack
- DC to DC power supply - powers the satellite modem as well as the tracking antenna.
- User guide/Installation CD (PDF file on CD)
